Swiftech H20 120 R3A - Manual (Page 24)

Copyright Swiftech 2004 – All rights reserved – Last revision date: 11-23-04
Rouchon Industries, Inc., dba Swiftech – 1703 E. 28
th Street, Signal Hill, CA 90755 – Tel. 562-595-8009 – Fax 562-595-8769 - E Mail:
[email protected] – URL: http://www.swiftnets.com

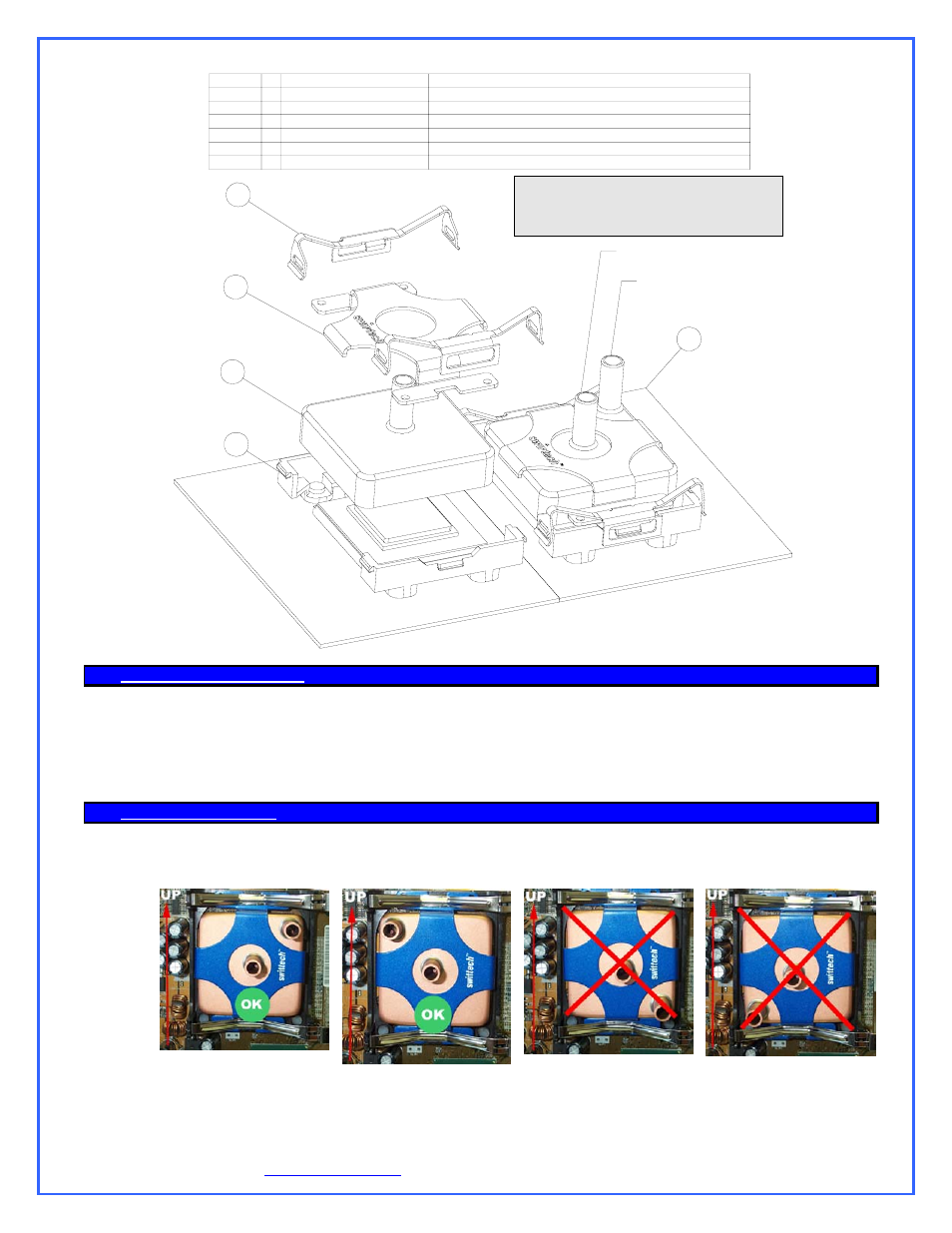

ASSEM BLY USING PLA STIC
FRA ME A ND SPRIN G CLIPS
IN CLUDED WITH M OTHERBOA RD
16 PART NO. DESCRIPTION
1 DUAL-XEON-BOARD Motherboard
2 RETENTION Plastic retention frame, included with motherboard
3 XEON-CLIP Xeon clip included with motherboard
4 MCW6000-P-with-bracket MCW6000-P water-block assembly
a MCW6000-FLAT MCW6000 waterblock flat base
b SP4-Bckt Hold-down plate for Intel Pentium 4 and Xeon
3
4 b
4 a
2
1
FLUID INLET
FLUID DISCHARGE
Figure 2
- Information subject to change without notice Page 24 of 38
1. P REPARING YOUR M OTHERBOARD :
Remove the existing heat sink
Carefully clean the CPU.
Lightly coat the CPU with the included Arctic Céramique thermal compound. Application will vary depending on the type of
processor. We recommend visiting http://www.arcticsilver.com for detailed instructions.
2. W ATER - BLOCK ORIENTATION :
For ease of operations during the filling and bleeding procedures, the outlet should always be at the highest point (while the computer
system is standing upright):
