If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
H U B B A R D T O N F O R G E . C O M
hand-forged, vermont-made lighting and accessories
154 RT. 30 SOUTH • CASTLETON, VERMONT 05735
All designs and images ©1989-2013 Hubbardton Forge ® . All rights reserved.
14823 Rev A
Installation Instructions
To Install
(Continued)
Installation
4. Install the rubber strip (J) centered on each inside wall of the
fixture collar.
5. Place fixture (G) onto post carefully tucking all wiring down
into post and making sure no wires are pinched between the
post and the fixture. Secure with set screw (H).
6. Install 150-watt max type A light bulb and glass (I).
Note: The glass tube is mouth blown. Minor irregularities, including
being slightly out of round, are normal. It may be necessary to turn
the glass in relation to the fixture to achieve a good fit.
7. Restore electricity to breaker.
For Post and Pier Mounted Outdoor Fixtures Page 2 of 2

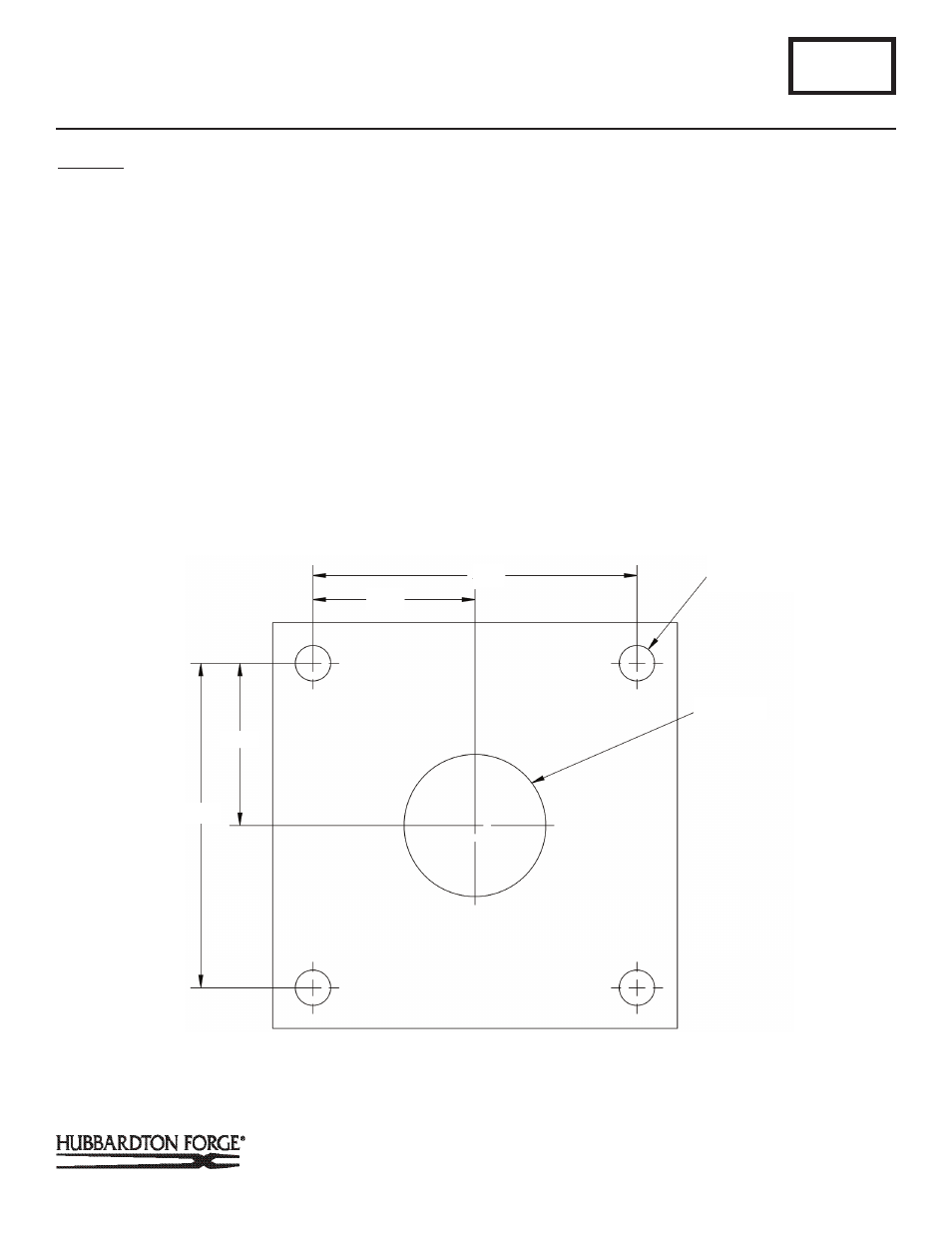

Use this template to position J bolts and wireway in concrete slab prior to
installing outdoor post mounted lighting fixture.
G2
J BOLT LOCATIONS
WIREWAY
4.00
4.00
2.00
2.00
