Assembly & Installation Instructions
G11
For Post-Mounted 34-4935 Page 1 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22748
Note: Fixture, Post and Cover Cap each sold separately.
To Install

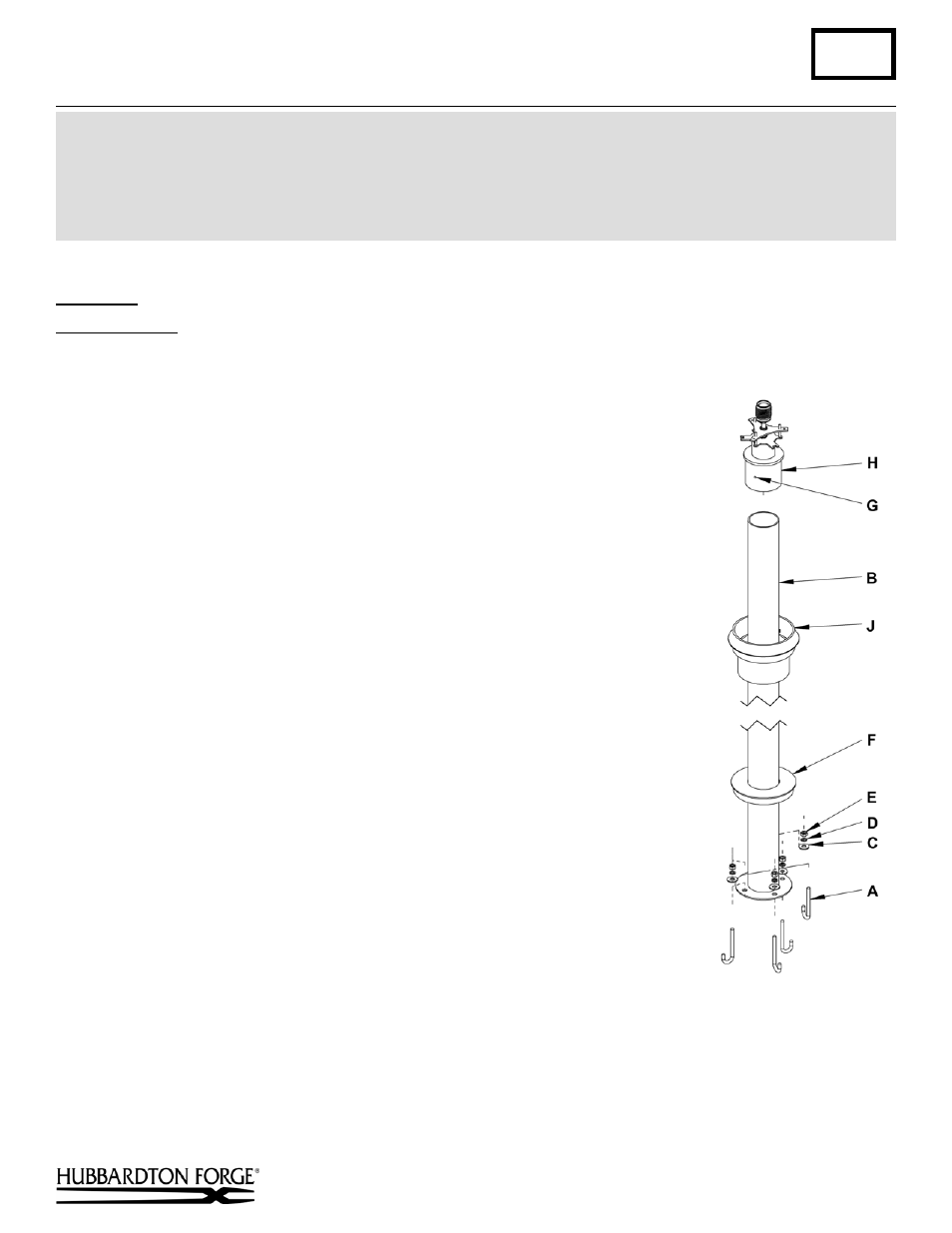

Component Parts
A J Bolt (4)
B Post
C Flat Washer (4)
D Split
Washer (4)
E Hex Nut (4)
F Cover Cap (Optional)
G Set
Screw
H Fixture
J Fixture
Cover
Caution: Be sure power is off at the main breaker box prior to installation.
Site Preparation
1. Run appropriate wiring to the site of the fixture, leaving enough excess wire
to reach the top of the post, plus 12 inches.
2. Pour flat and level concrete base with wiring emerging at the center. Insert J
bolts (A) so approximately 1" of the bolts are exposed above the concrete.
Position J bolts according to the template on the last page of these
instructions. Allow concrete to cure before installing fixture.
Installation
Note: Post may be cut to desired height before installation.
1. Position post over J bolts allowing supply wire to run up though the post
and secure using flat washers (C), split washers (D) and hex nuts (E).
2. Place cover cap (sold separately) (F) over post to conceal mounting
hardware.
3. Slip fixture cover (J) over post and lower until it sits on top of the cover cap
(F). Leave fixture cover in this location for now.
4. Connect fixture wires to supply wires using appropriate wire connectors
(not provided), black to black, white to white and bare copper or green to
bare copper or green. If fixture is wired with twin lead lamp cord, connect
smooth side of fixture wire to black, and ridged side to white.
5. Place fixture (H) onto post carefully tucking all wiring down into post and
making sure no wires are pinched between the post and the fixture. Secure with
set screw (G).
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
