Installation Instructions
B142
For Medium and Large After Hours Outdoor 30-7860, 30-7860F, 30-7861 & 30-7861F Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 21193

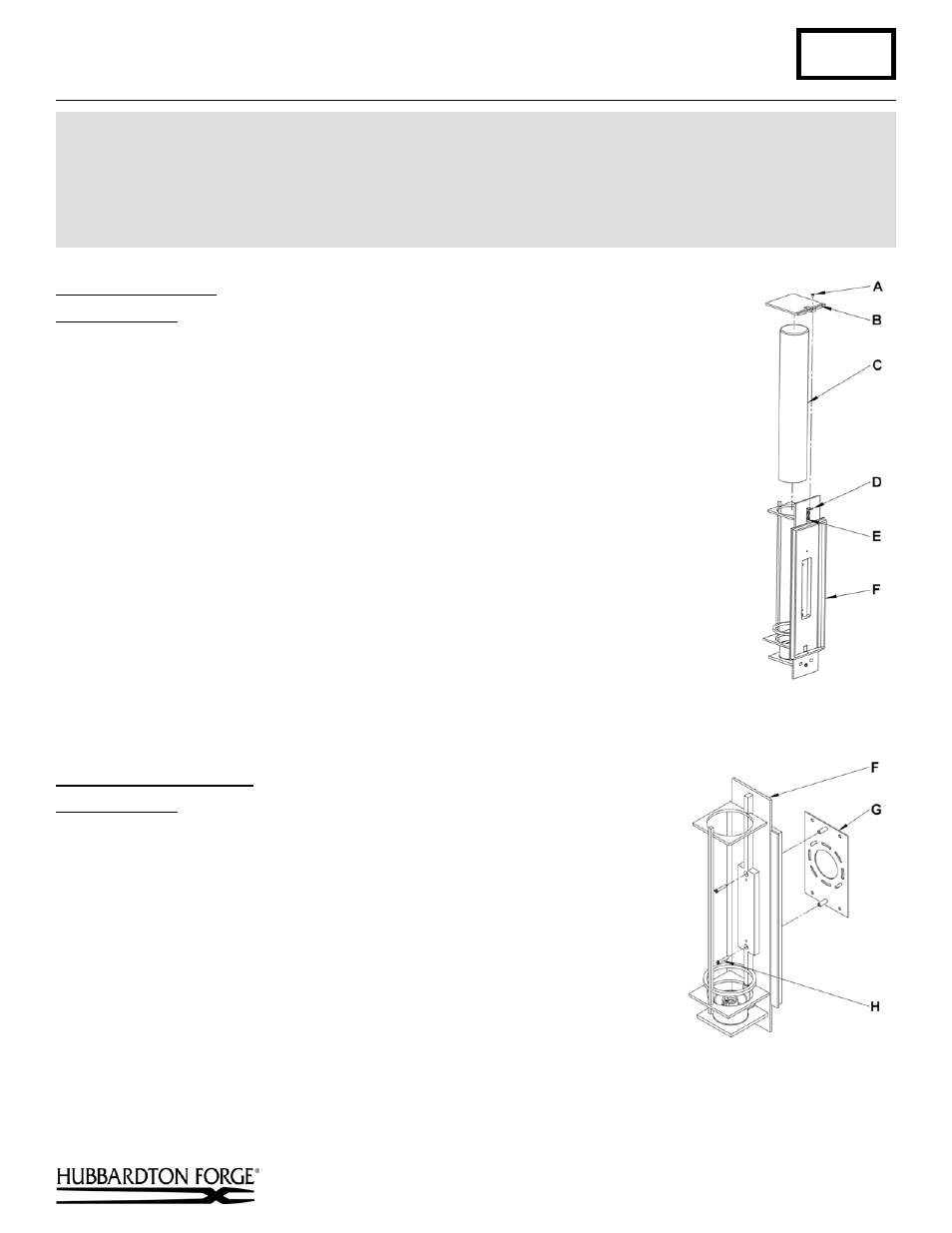

To Adjust Top Plate (Figure 1)
Component Parts
A 8-32 x 1/4" Screw Top Plate
B Top
Plate
C Glass
D Bracket
E 8-32 x 3/8” Screw (2)
F Fixture
1. Carefully unpack the fixture from the carton.
2. Slide glass (C) into fixture (F).
3. Slip top plate (B) onto fixture (F) until it rests on top of glass (C).
4. Loosen screws in bracket (D).
5. Remove screw (A) from bracket (D) and set aside for later use.
6. Raise or lower bracket (D) as needed until it touches top plate (B) and tighten
screw (E).
7. Slip 8-32 x 1/4" screw (A) through top plate (B) and thread in to bracket (D) and
tighten (be careful not to over tighten).
8. Remove screw (A), top plate (B) and glass (C) and set to the side temporarily.
9. Continue with installation instructions below.
To Install Fixture to Wall (Figures 2 & 3)
Component Parts
F Fixture
G Mounting
Bracket
H 8-32 x 1” Screw (2)
I Caulking
Lip
Caution: Be sure power is off at the main breaker box prior to installation.
1. Using two machine screws (not provided) attach mounting bracket (G) to the
electric box using inside oval holes to orient fixture. Note: A new electric box
comes with screws. When replacing a fixture, retain the screws for use with
the new fixture.
2. Using suitable wire connectors (not provided), connect the fixture wires to the
supply wires, (white to white, black to black, bare copper or green to bare
copper or green). If the fixture is wired with twin lead lamp cord, connect the
ribbed side to white, and the smooth side to black.
Caution: Make sure wire
connectors are twisted on securely and no bare wires are exposed.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
(Figure 2)
