If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

H U B B A R D T O N F O R G E . C O M

hand-forged, vermont-made lighting and accessories

154 RT. 30 SOUTH

•

CASTLETON, VERMONT 05735

30067 Rev A

Installation Instructions

To Mount Fixture to Wall

(Figures 1 & 2)

(Continued)

6. Apply a generous bead of a suitable caulking material to

caulking lip (I) on fixture. (Figure 2)

7. Carefully tuck all wires behind the fixture assembly and

inside the wall mount bracket and place the fixture firmly

onto bracket (B) and fasten with #8 black screws (E) on top.

8. Install two remaining black screws (E) in bottom of fixture

attaching to wall mounting bracket (B).

To Install Glass

(Figures 3-5)

Component Parts

A Fixture Assembly

J Round Block

K Glass

L Large Rubber Washer

M #8 Screw

N Thumb Screw

O Socket

P Metal Washer

1. Remove round block (J) from fixture assembly (A) by

removing thumb screw (N). Remove #8 screw (M) and

rubber & metal washer (L & P). Round block and hardware

are shipped installed (Figure 3).

2. Attach glass (K) to round block (J) using #8 screw (M),

rubber washer (L), and metal washer (P). (Figure 4).

Note: A new electric box comes with screws. When replacing a

fixture, retain the existing screws for use with the new fixture.

3. Thread bulb (not included), into socket (O).

4. Tilt glass (K) over bulb and fasten round block (J) to fixture
assembly (A) using the thumb screw (N) (Figure 5).

5. Restore electricity at main breaker.

B305

Pluto Outdoor Sconce Small: 306605

Page 2 of 3

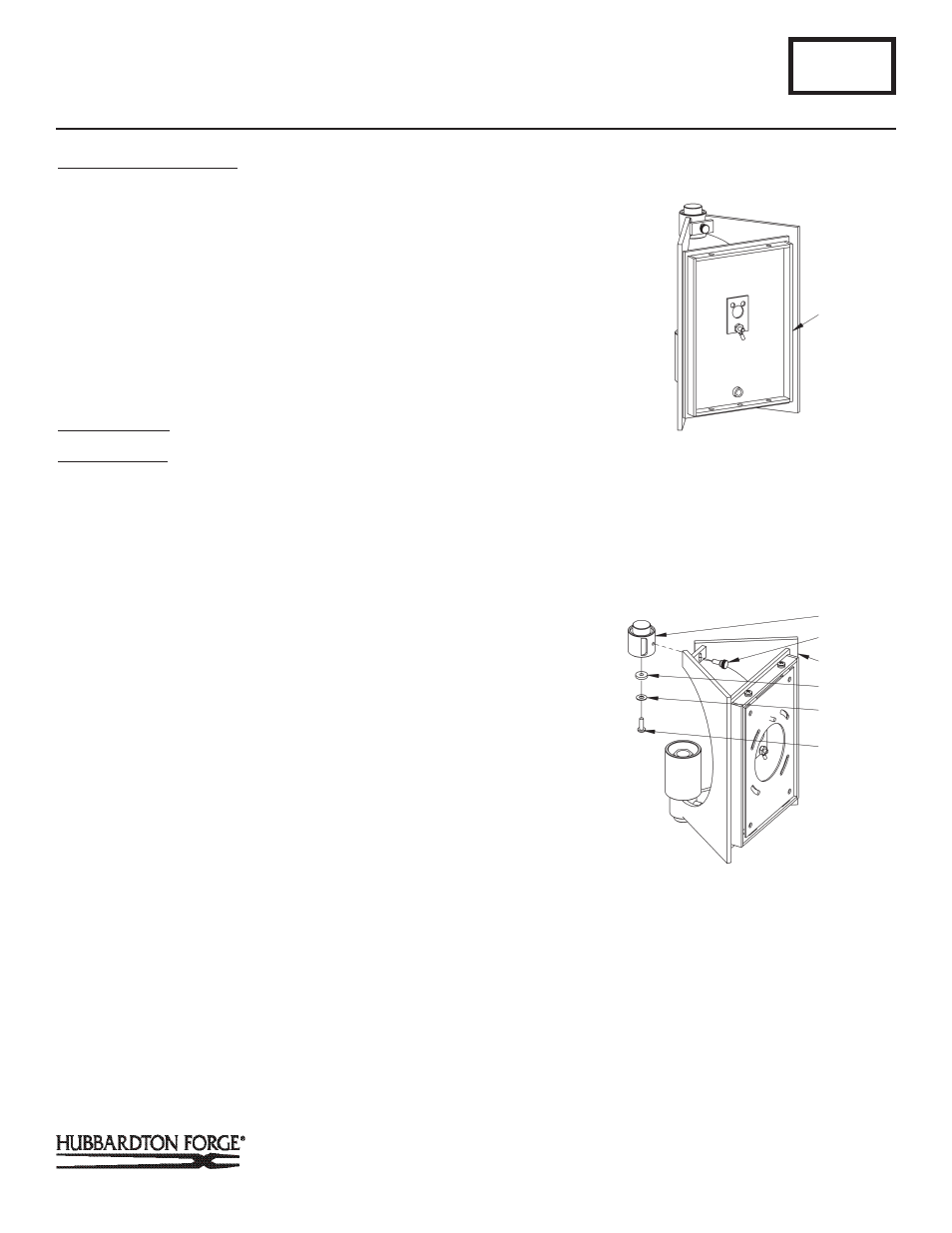

(Figure 2)

(Figure 3)

J
N
A
L

(Continued)
