Hubbardton Forge 306605 User Manual
B305, Installation instructions

H U B B A R D T O N F O R G E . C O M
hand-forged, vermont-made lighting and accessories
154 RT. 30 SOUTH
•
CASTLETON, VERMONT 05735
All designs and images ©1989-2013 Hubbardton Forge
®
. All rights reserved.
30067 Rev A
Installation Instructions
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
Please Note: This fixture is designed to be mounted on a standard wall
surface and may not be suitable for all applications. If installing in a non-
wood frame application, we recommend consulting a qualified builder
or electrician.
To Mount Fixture to Wall
(Figures 1 & 2)
Component Parts
A Fixture Assembly
B Wall Mount Bracket
C Anchors (4)
D #10 Screws (4)
E #8 Black Screws (4)
CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX
PRIOR TO INSTALLATION.
1. Carefully unpack the fixture from the carton.
2. Center the wall mount bracket (B) over the electrical box
being sure to hold it plum and level. With a pencil, mark the
location of all mounting holes in the wall mount bracket on
the wall behind.
3. Put the wall mount bracket down and drill 1/4" holes in the
locations marked on the wall. For holes using anchors, place
the tapered end of the anchors (C) into the holes and gently
tap them flush to the wall using a light weight hammer.
4. Thread the wires in the electrical box through the center
hole in the wall mount bracket while moving the bracket
into position. Using the #10 screws (D), screw the bracket
securely to the wall. Be careful not to over-tighten or
strip the anchors.
5. Hold the fixture assembly (A) close to the wall mount bracket
and using suitable wire connectors (not provided), connect
fixture wires to supply wires (white to white or ribbed
and black to black or smooth). Ground the mounting
bracket using the green ground screw (F) and cupped
washer (G) to secure a pigtail lead to the bracket and con-
nect all ground wires (bare copper or green to
bare copper or green).
CAUTION: MAKE SURE WIRE CONNECTORS ARE TWISTED ON
SECURELY, AND NO BARE WIRE IS EXPOSED.
B305
Pluto Outdoor Sconce Small: 306605
Page 1 of 3
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

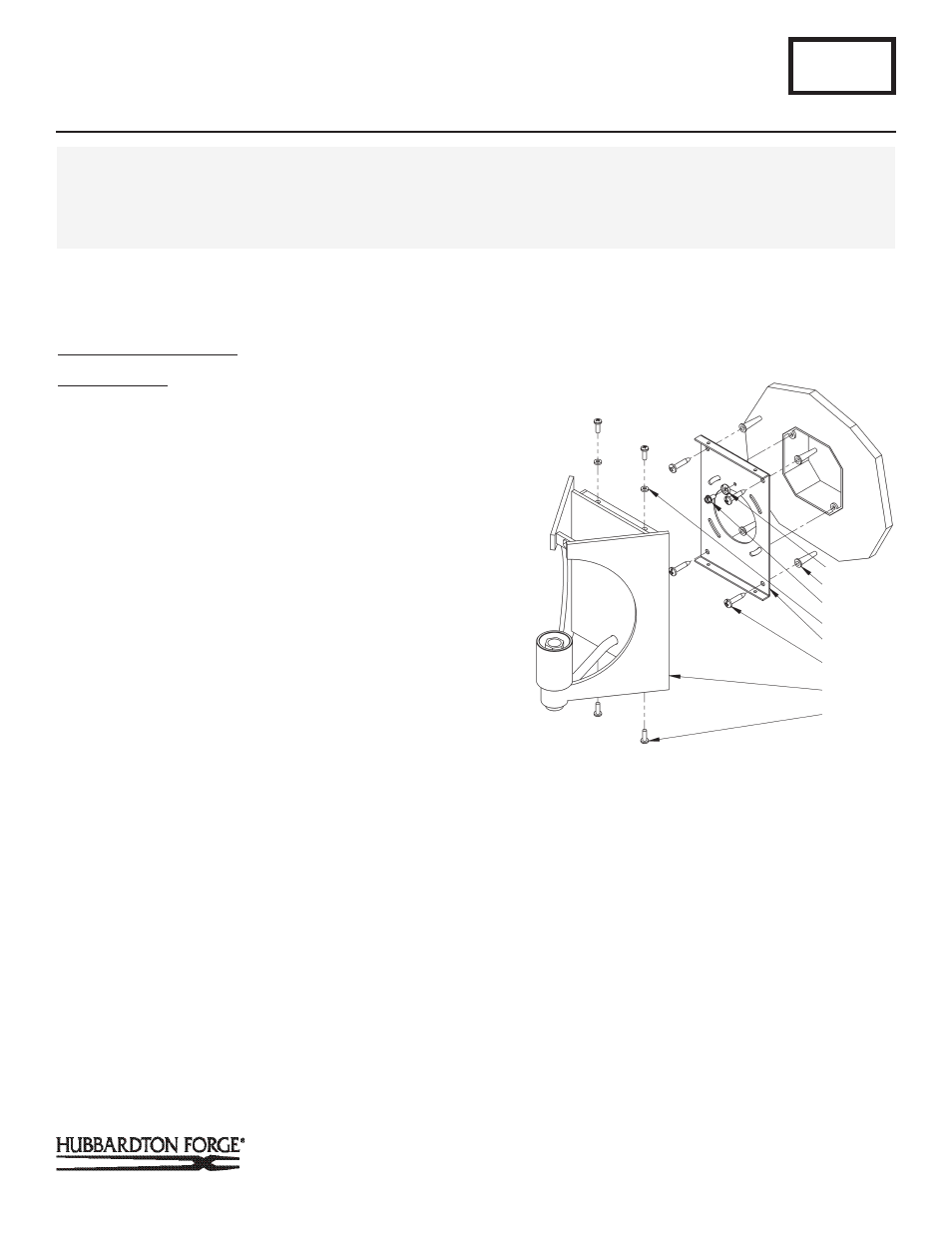

(Figure 1)
(Continued)
G
C
F
B
H
F Green Ground Screw
G Cupped Washer
H Rubber Washers (2)
I Caulking Lip
D
A
E
