Installation Instructions
B165
For Outdoor Sconces 30-7115 & 30-7115F Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22507

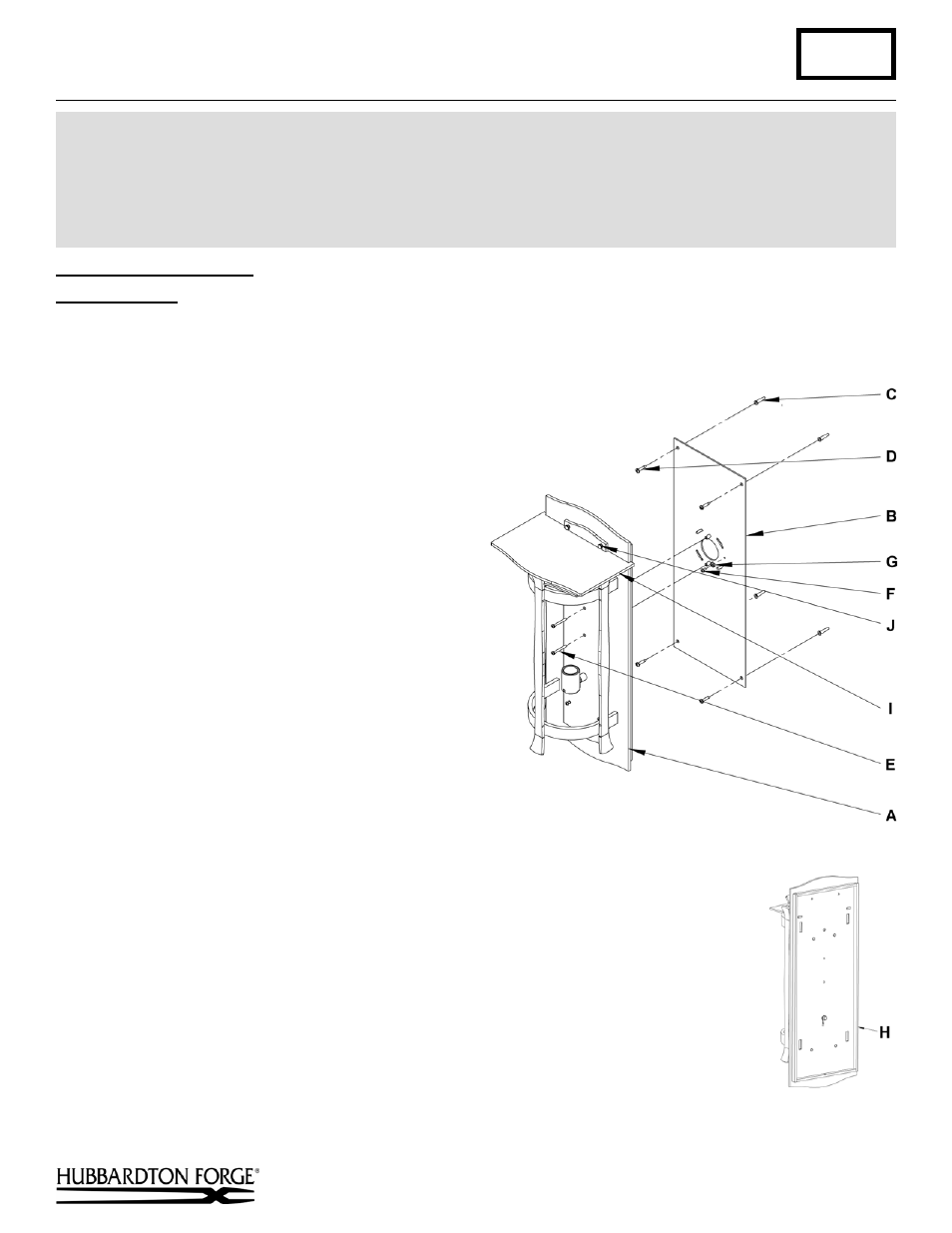

To Install Fixture to Wall (Figures 1 & 2)
Component Parts
A Fixture
B Mounting
Bracket
C Wall Anchor (4)
D #10 Screw (4)
E 8-32 X 1 ½” Screws (2)
F Ground
Screw
G Cupped Washer
H Caulking Lip
I Top Hat
J Thumb Screws (2)
Note: Fixture enclosure to be located four feet above
the ground.
Caution: Be sure power is off at the main breaker box
prior to installation.
1. Carefully unpack the fixture from the carton.
2. Remove the mounting bracket (B) from the fixture (A)
by removing the two 8-32 x 1 ½” screws (E).
Mounting bracket and fixture are shipped together.
3. Remove top hat (I) from fixture (A) by removing
thumb screws (J). Set screws and top hat aside for
later use.
4. Center the wall mount bracket (B) over the electrical
box being sure to hold it plum and level. With a
pencil, mark the location of all mounting holes in the
wall mount bracket on the wall behind.
IMPORTANT: Wall mount bracket must be secured to
a solidly mounted electrical box and/or a framing
member in at least two locations. Do not depend on
drywall anchors alone to support this fixture. If in
doubt, contact a qualified electrician.
Put the wall mount bracket down and drill 1/4" holes
in the locations marked on the wall. For holes using anchors, place
the tapered end of the wall anchors (C) into the holes and gently tap them flush to the wall
using a light weight hammer. Attach mounting bracket (B) to wall with screw (D)
threaded through mounting bracket and into wall anchor (C). Be careful not to over tighten
screws.
5. Using suitable wire connectors (not provided), connect the fixture wires to the supply
wires, (white to white or ribbed and black to black or smooth, and bare copper or green to
bare copper or green). Ground the mounting bracket using the green ground screw (F) and
cupped washer (G) to secure a pigtail lead to the bracket.
6. Apply a generous bead of a suitable caulking material to caulking lip (H) on the fixture
(Figure 2).
7. Carefully tuck all wires behind the fixture, place fixture firmly against the wall and fasten
with 8-32 x 1 ½” screws (E). To ensure a water tight seal, apply a thin bead of caulking
around entire perimeter of the fixture.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 2)
(Figure 1)
