Installation Instructions
B253
Port Outdoor Sconces 30-6560 & 30-6563 Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 26974
4. Hold the fixture assembly (A) close to the wall mount bracket and using suitable wire connectors (not provided),
connect fixture wires to supply wires (white to white or ribbed and black to black or smooth). Ground the
mounting bracket using the green ground screw (G) and
cupped washer (H) to secure a pigtail lead to the bracket and
connect all ground wires (bare copper or green to bare copper
or green).
Caution: Make sure wire connectors are twisted on securely,
and no bare wires are exposed.
5. Apply a generous bead of a suitable caulking material to
calking lip (I) on the fixture (not provided) (Figure 2).
6. Carefully tuck all wires behind the fixture assembly and inside
the wall mount bracket and place the fixture firmly onto
bracket (B) and fasten with #8 black screw (E) and rubber
washer (F) on top.
7. Install 2 nd black screw (E) in bottom of fixture attaching to
wall mounting bracket (B).

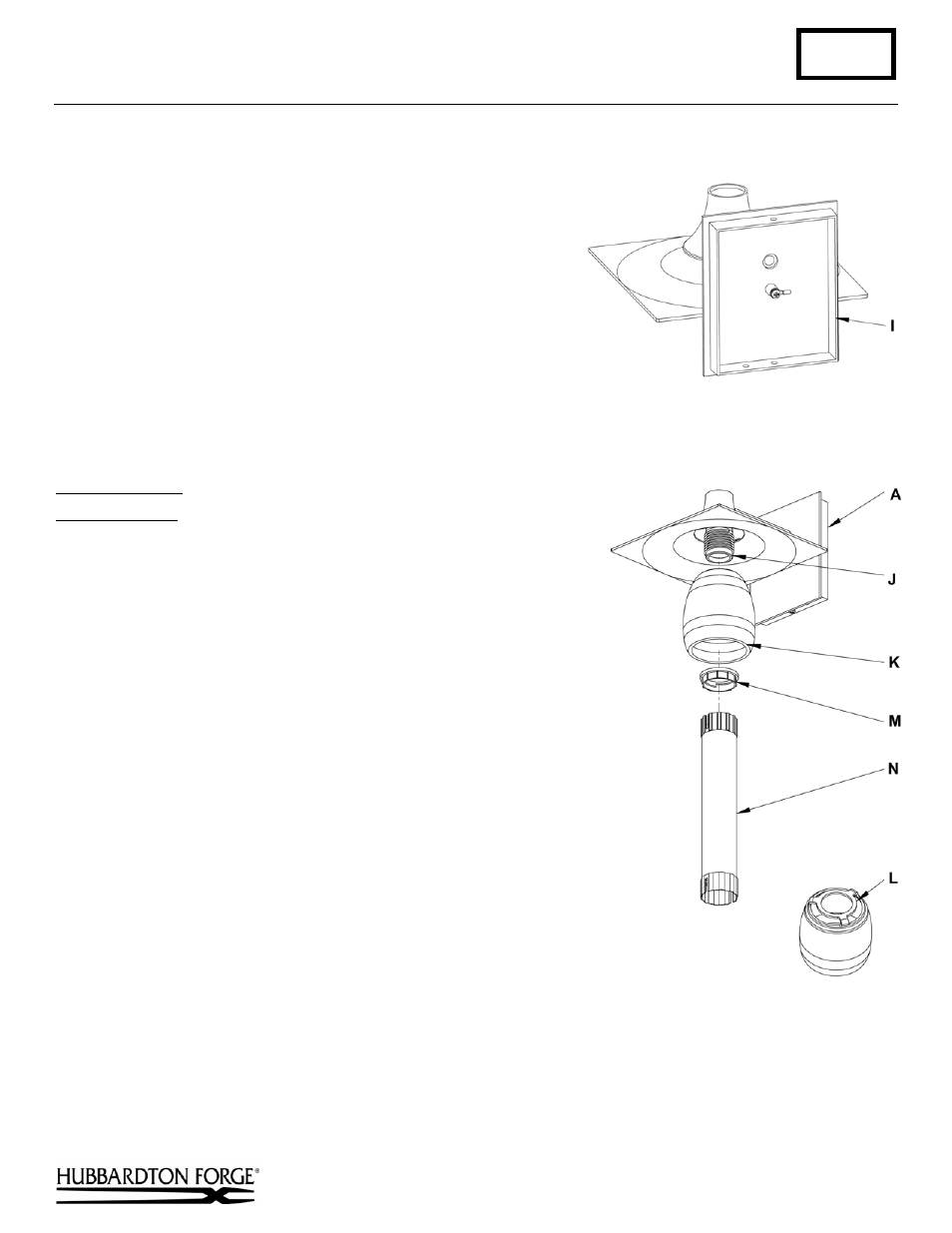

To Install Glass (Figure 3)
Component Parts
A Fixture Assembly
J Socket
K Glass for 30-6560,
L Solid Diffuser for 30-6563
M Retaining
Ring
N Retaining Ring Tool
1. Remove retaining ring (M) from socket (J). Retaining ring ships
installed.
2. Slip glass (K) or solid diffuser (L) depending on which product was
purchased over socket (J).
3. Thread retaining ring (M) onto socket (J) using retaining ring tool
(N) provided until snug. Do not over tighten.
4. Install bulb (not included).
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
*
Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 3)
(Figure 2)
