B253, Installation instructions

Installation Instructions
B253
Port Outdoor Sconces 30-6560 & 30-6563
Page 1 of 2
Hand-Forged,
Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735
26974
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.
To Mount Fixture to Wall
(Figures 1 & 2)
Component Parts
A Fixture
Assembly
B Wall Mount Bracket
C Anchors
(4)
D #10 Screws (4)
E #8 Black Screws (2)
F Rubber Washer (1)
G Green Ground Screw
H Cupped
Washer
I Caulking
Lip
Caution: Be sure power is off at
the main breaker box prior to
installation.
1. Carefully unpack the
fixture from the carton.
2. Center the wall mount
bracket (B) over the
electrical box being sure
to hold it plum and level.
With a pencil, mark the
location of all mounting
holes in the wall mount
bracket on the wall
behind.
IMPORTANT: Wall mount
bracket must be secured
to a solidly mounted
electrical box and/or a framing member in at least two locations. Do not depend on drywall anchors alone to
support this fixture. If in doubt, contact a qualified electrician.
Put the wall mount bracket down and drill 1/4" holes in the locations marked on the wall. For holes using anchors,
place the tapered end of the anchors (C) into the holes and gently tap them flush to the wall using a light weight
hammer.
3. Thread the wires in the electrical box through the center hole in the wall mount bracket while moving the bracket
into position. Using the #10 screws (D), screw the bracket securely to the wall. Be careful not to over-tighten or
strip the anchors.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

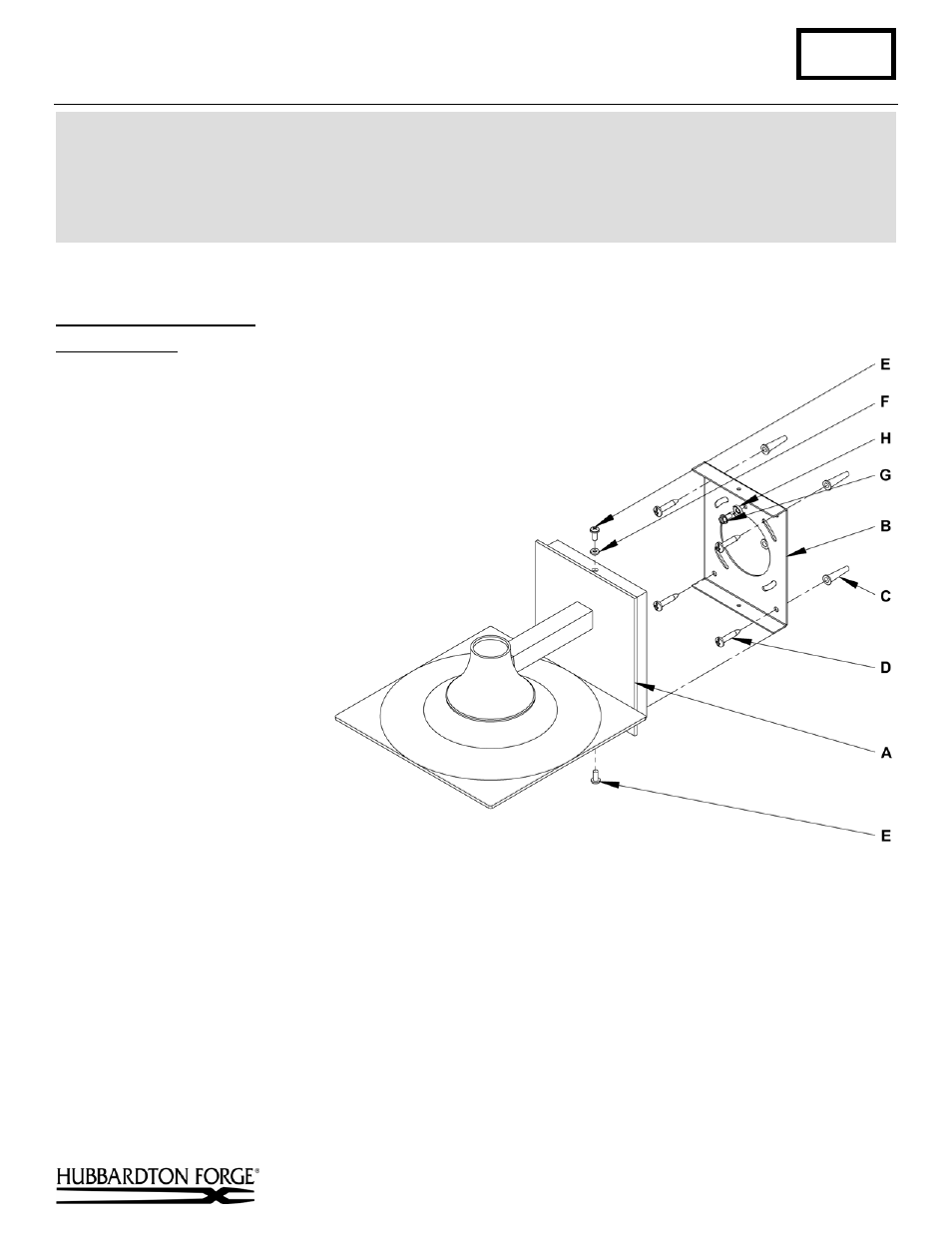

(Figure 1)
