If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

H U B B A R D T O N F O R G E . C O M

hand-forged, vermont-made lighting and accessories

154 RT. 30 SOUTH

•

CASTLETON, VERMONT 05735

30702

Assembly & Installation Instructions

6. Thread nipple (F) in to threaded hole directly in center of

fixture (A).

7. Install cover (G) to nipple (F).

8. Thread cap (H) on to nipple (F) and tighten against cover (G)

until snug.

9. Refer instructions following to install glass.

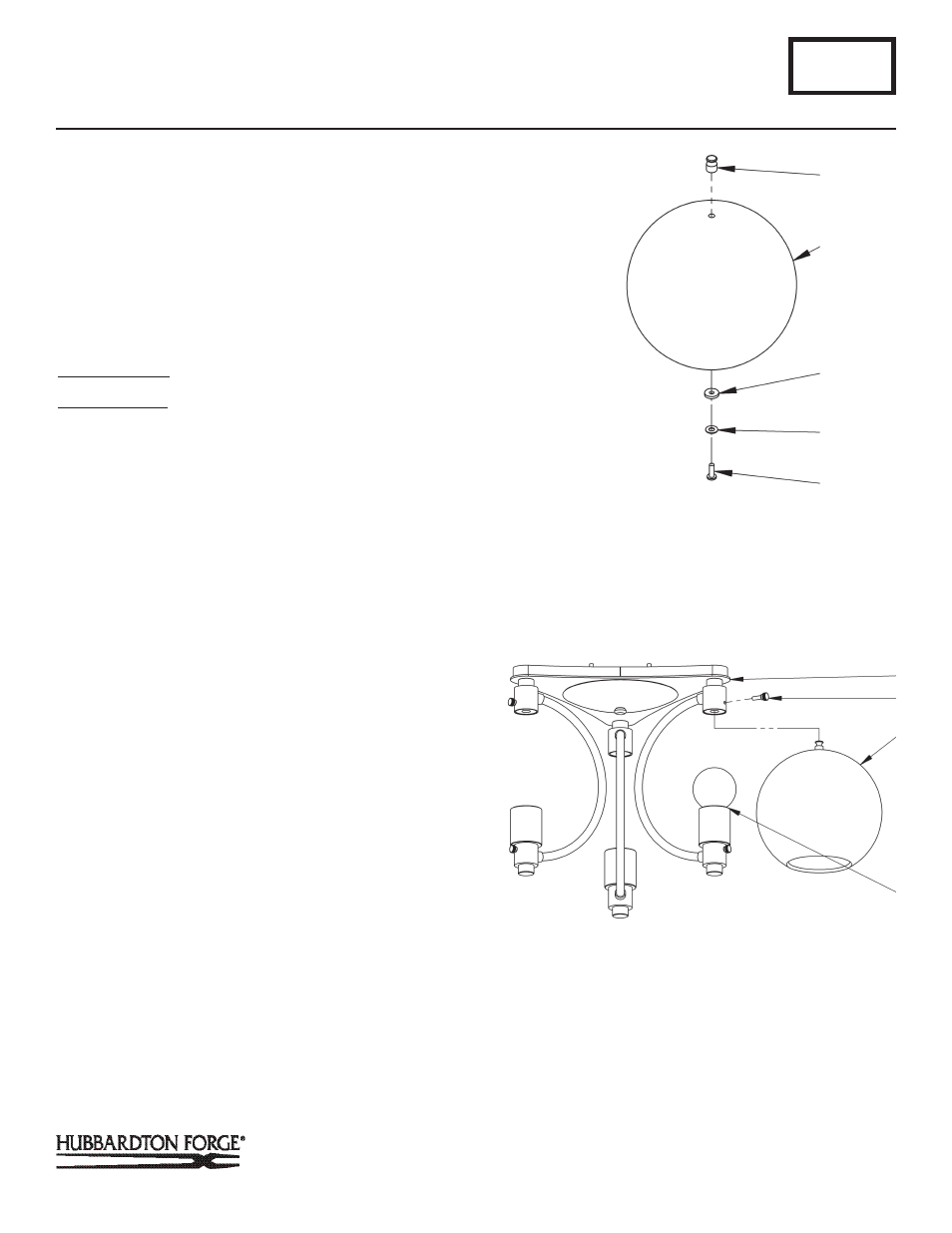

To Install Glass

(Figures 2 & 3)

Component Parts

A Fixture

I Glass

J Round Block

K #8 Screw

L Rubber Washer

M Metal Washer

N Thumb Screw

O Socket

1. Remove round block (J) from fixture (A) by loosening thumb
screw (N). Remove #8 screw (K) and washers (L&M) from
block (J). Round block and hardware are shipped installed.

2. Attach glass (I) to round block (J) using #8 screw (K) and
steel and rubber washers (M&L). (Figure 2)

Note: Be sure not to over tighten the screw.

3. Install light bulb (not provided) into socket (O).

4. Tilt glass (I) over bulb and fasten round block (J) to fixture
assembly (A) using the thumb screw (N). (Figure 3)

5. Restore electricity at main breaker.

A360

Pluto Semi-Flush 128703

Page 2 of 2

(Figure 2)

(Continued)

(Figure 3)

A
N
