Assembly & Installation Instructions

If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

Note: After installation extra hardware and accessories are possible due
to our kits are used on multiple products and options.

To Complete Fixture Assembly

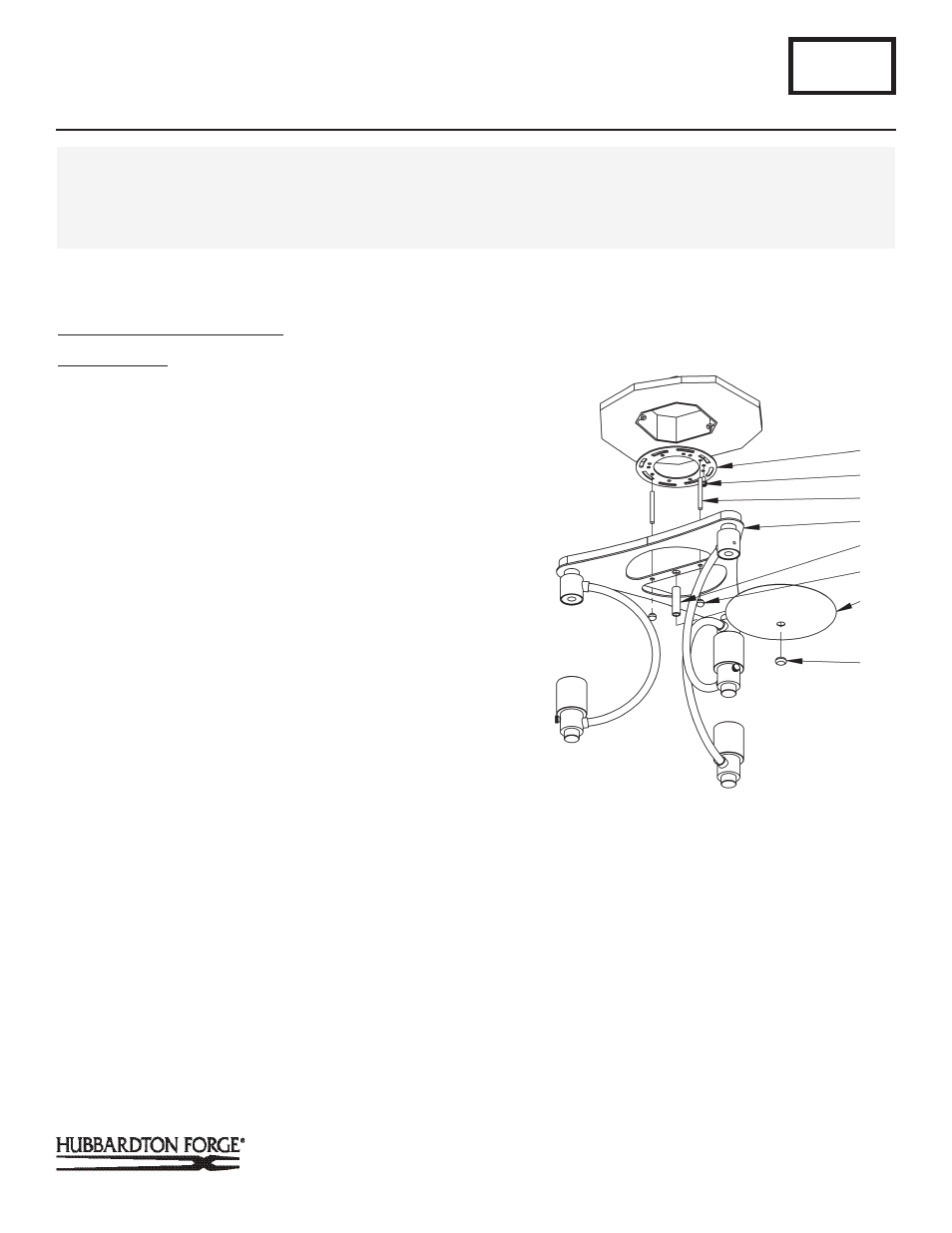

(Figure 1)

Component Parts

A Fixture

B Crossbar

C Threaded Stud (2)

D Knurled Ball (2)

E Ground Screw

F Nipple

CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX
PRIOR TO INSTALLATION.

1. Carefully unpack the fixture from the carton.

2. Thread studs (C) through appropriate holes in the crossbar

(B) to match hole centers in fixture (A). Move ground

screw (E) to another available threaded hole if necessary.

3. Using two machine screws (not provided), fasten the cross

bar (B) to the electric box using outer oval slots to orient

fixture to desired hanging position.

Note: A new electric box comes with screws. When replacing a

fixture, retain the existing screws for use with the new fixture.

4. Slide fixture (A) over threaded studs (C) and push firmly

to ceiling making sure no wires are pinched between fixture

canopy and ceiling. Fasten with knurled balls (D). Be

sure studs (C) are fully seated in knurled balls (D).

5. Using suitable wire connectors (not provided) connect fixture

wires to supply (white to white and black to black). Run a

pigtail lead from the ground screw (E) to the electrical box.

Connect all ground wires (bare copper or green to bare

copper or green).

CAUTION: MAKE SURE WIRE CONNECTORS ARE TWISTED ON
SECURELY, AND NO BARE WIRE IS EXPOSED.

A360

Pluto Semi-Flush 128703

Page 1 of 2

CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*

Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

(Figure 1)

(Continued)

G Cover

H Cap
