Installation & Assembly Instructions
B116
For Silhouette Sconces 21-7705F, 21-7710F, 21-7715F & 217720F Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 19865 Rev C
5. Carefully tuck all wires behind the fixture, place fixture firmly against the wall and fasten with 8-32 screws (D).
Note: Ballast disconnect should be located in center of electrical box.
6. Install light bulbs. (See bulb installation at the end of the instructions)
7. Restore electricity at the main breaker.
8. Refer to glass and front mounting instructions on the next page for complete
installation.

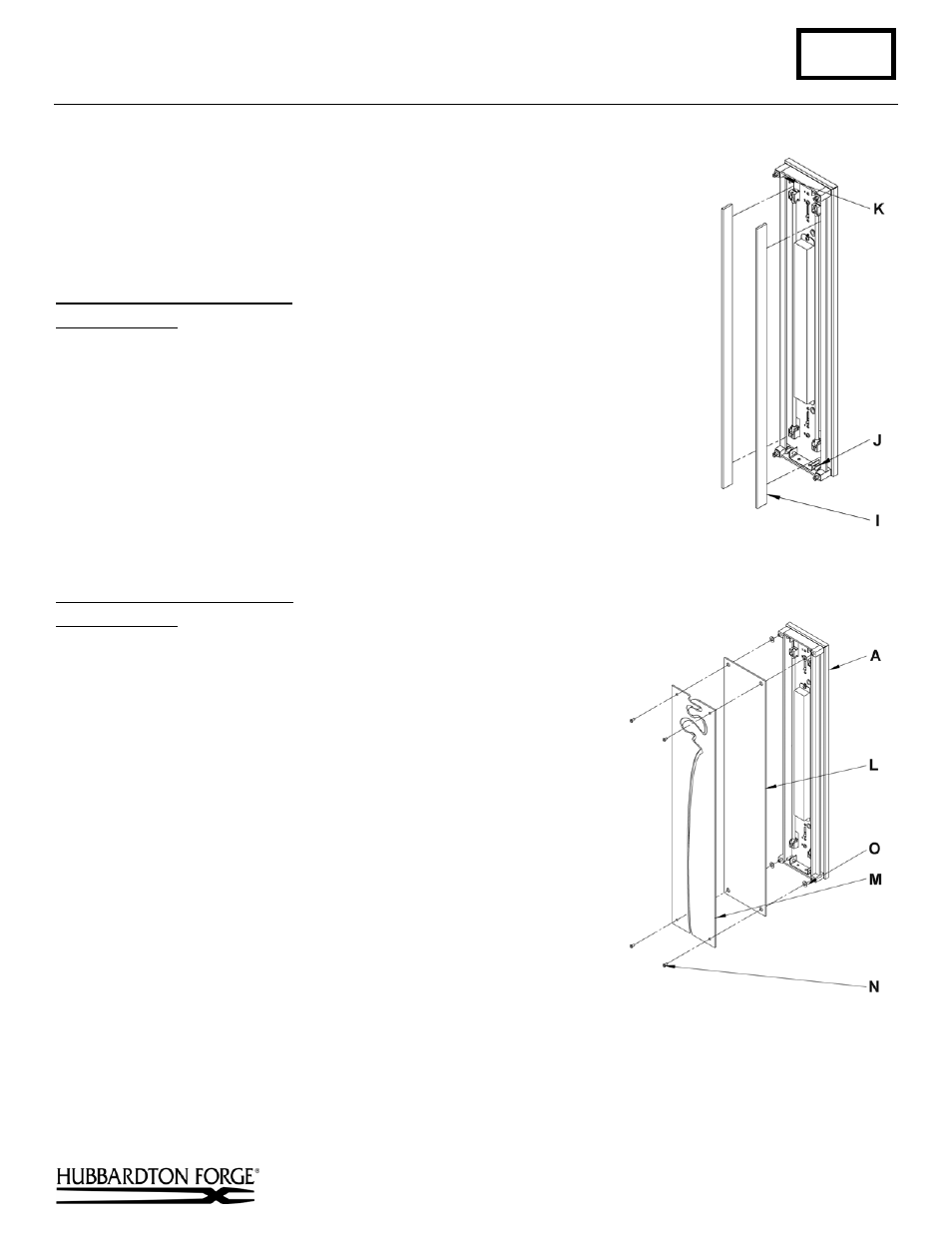

To Install Side Diffuser Glass (Figure 2)
Component Parts
I Diffuser (2)
J Diffuser Clip (4)
K Corner
Blocks
1. Install diffuser (I) so it rests between corner blocks (K) and diffuser clip (J).
To Install Front Glass & Plate (Figure 3)
Component Parts
A Fixture
L Glass
Panel
M Front Plate
N Screw (4)
O Foam Washer (4)
1. Remove the four screws (N) from the front of fixture (A).
2. Install four adhesive backed foam washers (O) onto front of fixture
(A) to help cushion glass panel (L).
3. Slip screw (N) through front plate (M) and glass panel (L).
4. Thread screw (N) into fixture (A) until snug against front plate (M).
(continued)
(Figure 3)
(Figure 2)
