Hubbardton Forge 205770 User Manual

B122, Installation instructions

H U B B A R D T O N F O R G E . C O M

hand-forged, vermont-made lighting and accessories

154 RT. 30 SOUTH

•

CASTLETON, VERMONT 05735

20160 A

Installation Instructions

If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

CAUTION: THIS FIXTURE IS DESIGNED TO BE MOUNTED ON A
STANDARD WALL SURFACE AND MAY NOT BE SUITABLE FOR ALL
APPLICATIONS. IF INSTALLING IN A NON-WOOD FRAME APPLICA-
TION, WE RECOMMEND CONSULTING A QUALIFIED BUILDER OR
ELECTRICIAN.

Please Note: The hardware provided is intended for use in wood frame
construction and may not be suitable for all applications. If installing
in non-wood frame applications, please consult a qualified builder to
determine and obtain the appropriate fasteners.

To Install Fixture

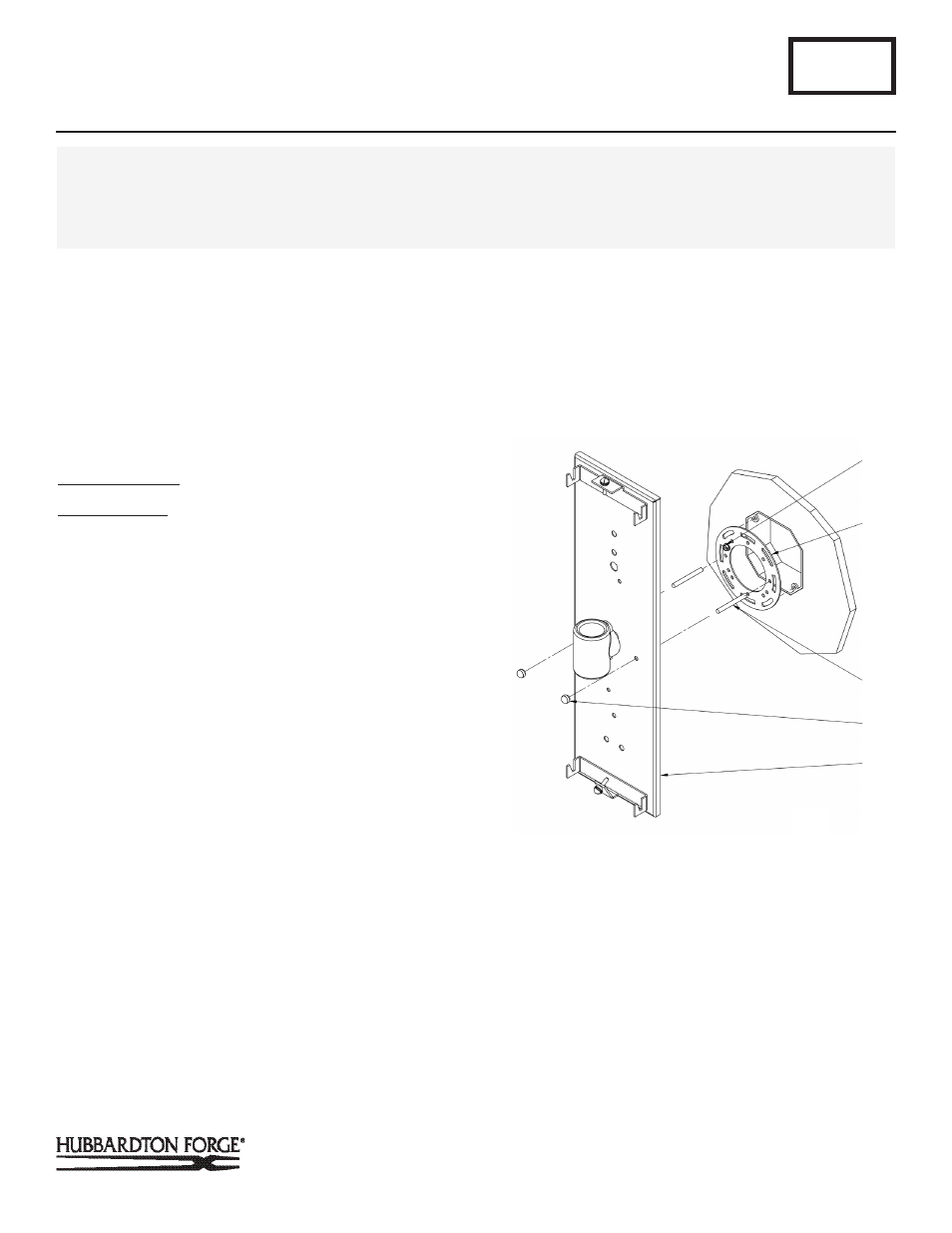

(Figure 1)

Component Parts

A Knurled Balls (2)

B Threaded Studs (2)

C Ground Screw

D Crossbar

E Fixture

CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX
PRIOR TO INSTALLATION.

1. Carefully unpack the fixture from the carton.

2. Using two machine screws (not provided), fasten the cross

bar (D) to the electric box (see illustration), making sure that

fixture mounting holes are level.

Note: A new electric box comes with screws. When replacing a
fixture, retain the existing screws for use with the new fixture.

3. Thread studs (B) into the appropriate holes in the crossbar

(D). Adjust the studs to proper length to ensure the fixture

will fit snugly to the wall.

4. Using suitable wire connectors (not provided) connect

fixture wires to supply wires (white to white and black to

black). If the fixture is wired with twin lead lamp cord,

connect white to ribbed side of the fixtures cord, black to

smooth side. Run a pigtail lead from crossbar ground screw

copper or green to bare copper or green).

B122

Forged Leaf and Stem Sconce 205770L & 205770R

Page 1 of 3

CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*

Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

(Figure 1)

(Continued)
