Hubbardton Forge 205105 - Manual (Page 2)

Installation Instructions
B11
For Direct Wire Wall Mounted Fixtures – B Page 2 of 2
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
For fixtures requiring assembly, please refer to assembly instructions before installation.
Component Parts
A Two Machine Screws
B Green Ground Screws
C Crossbar
D Box Machine Screws E Black Wire
F Ground Wire
G White Wire
To Install
Caution: Be sure power is off at the main breaker box prior to installation.
1. Carefully unpack the fixture from the carton.
2. Using two machine screws (D, not provided), fasten the
crossbar (C) to the electric box (see illustration), making sure
that fixture mounting holes are level.
Note: A new electric box comes with screws. When replacing
a fixture, retain the existing screws for use with the new
fixture.
4. Using suitable wire connectors (not provided) connect fixture
wires to supply wires (white to white (G) and black to black
(E)). If the fixture is wired with twin lead lamp cord, connect
white to ribbed side of the fixtures cord, black to smooth side.
Connect all ground wires (F) to crossbar ground screw (B).
Caution: Make sure wire connectors are twisted on securely,
and no bare wire is exposed.
5. Place fixture firmly against wall and fasten with two machine
screws (A).
6. Install light bulb(s) (not provided).
7. Restore electricity at main breaker.

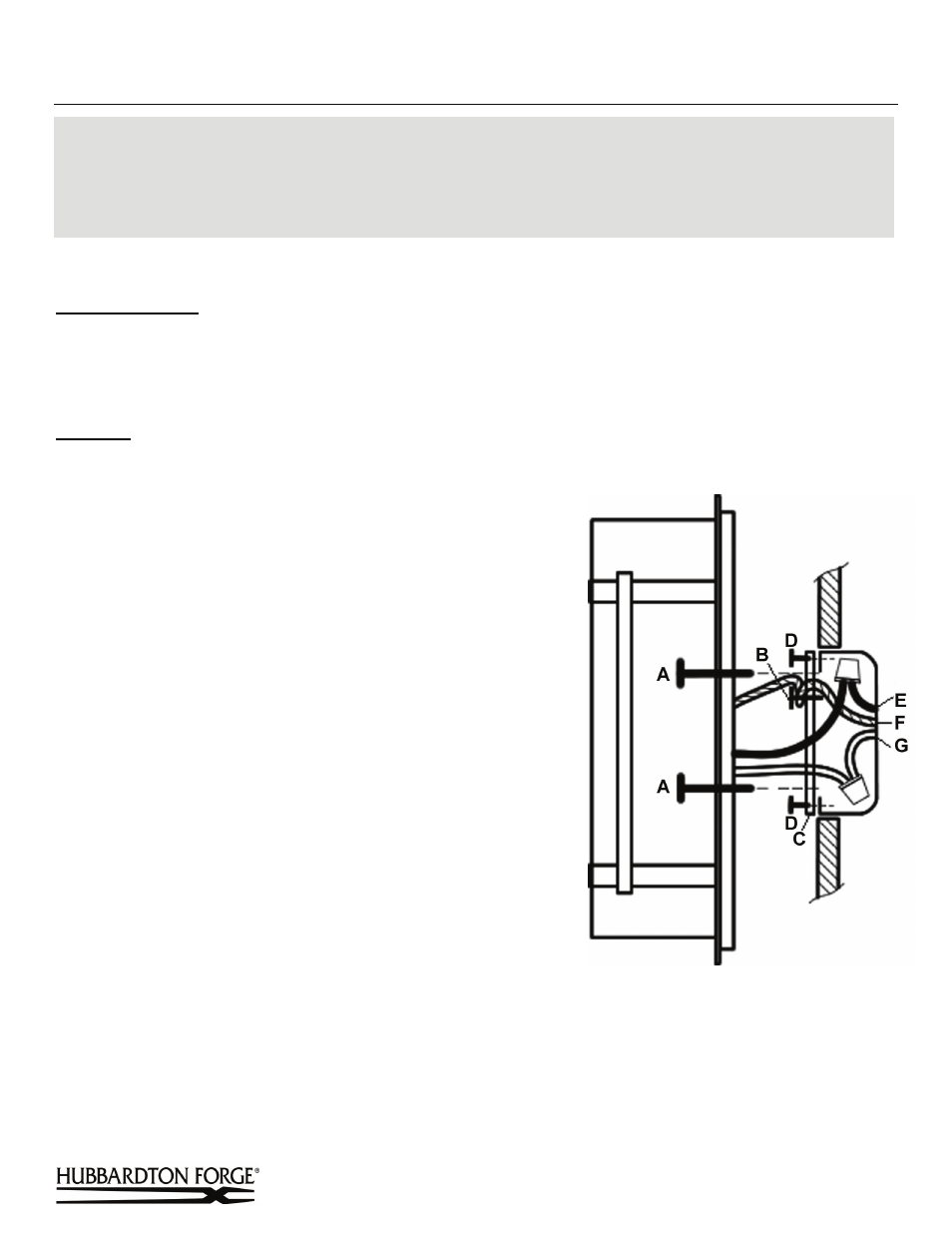

This illustration represents a typical
fixture and may not match every style.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 14045
