Installation Instructions
B170
For Sconce 20-4825 & 20-4825E Page 1 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22659
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.

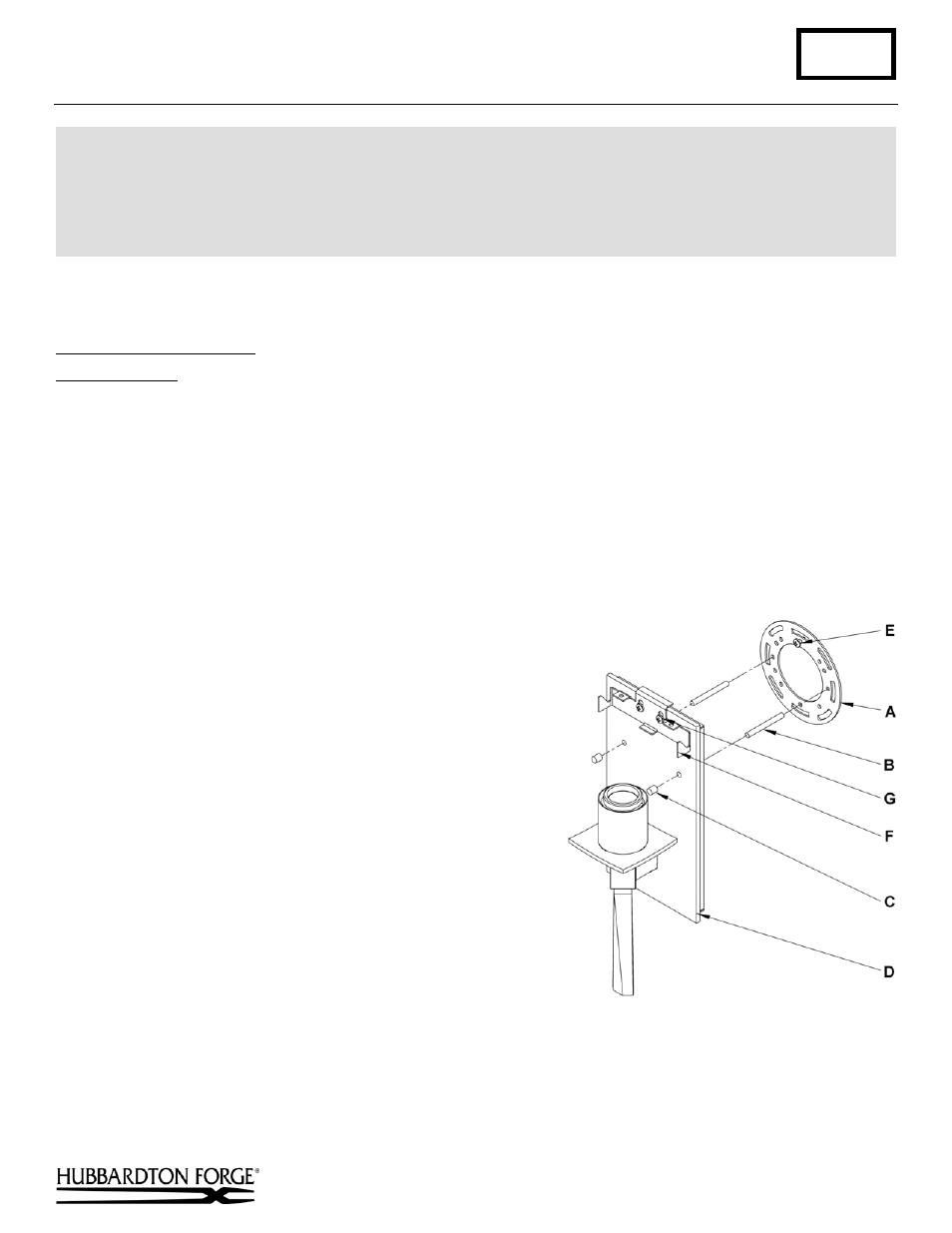

To Mount Fixture to Wall (Figure 1)
Component Parts
A Crossbar
B Threaded Stud (2)
C Barrel Knob (2)
D Fixture
Assembly
E Ground Screw
F Bracket
G 8-32 Screw (2)
Caution: Be sure power is off at the main breaker box prior to installation.
1. Carefully unpack the fixture from the carton.
2. Remove bracket (F) by loosening and removing the two
8-32 screws (G). Set to the side for later use.
Note: This is only necessary for the shade option.
3. Using two machine screws (not provided), fasten the
crossbar (A) to the electric box making sure that fixture
mounting holes are level.
Note: A new electric box comes with screws. When
replacing a fixture, retain the existing screws for use
with the new fixture.
4. Thread studs (B) into the appropriate holes in the crossbar
(A). Adjust the studs to proper length to ensure the fixture
will fit snugly to the wall.
5. Hold the fixture assembly (D) close to the wall and using
suitable wire connectors, not provided, connect fixture
wires to supply (white to white or ribbed and black to
black or smooth). Connect all ground wires to ground
screw.
Caution: Make sure wire connectors are twisted on
securely, and no bare wire is exposed.
6. Slide fixture assembly (D) over threaded studs (B) and
push firmly to wall, making sure that no wires are pinched
between fixture back and wall. Fasten with barrel knobs (C).
Be sure threaded studs (B) are fully seated in the barrel
knobs (C).
7. See instructions on next page to install glass or shade depending on option purchased.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
