Installation Instructions
B190
For Antasia Sconce 20-4712L & 20-4112R Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22864

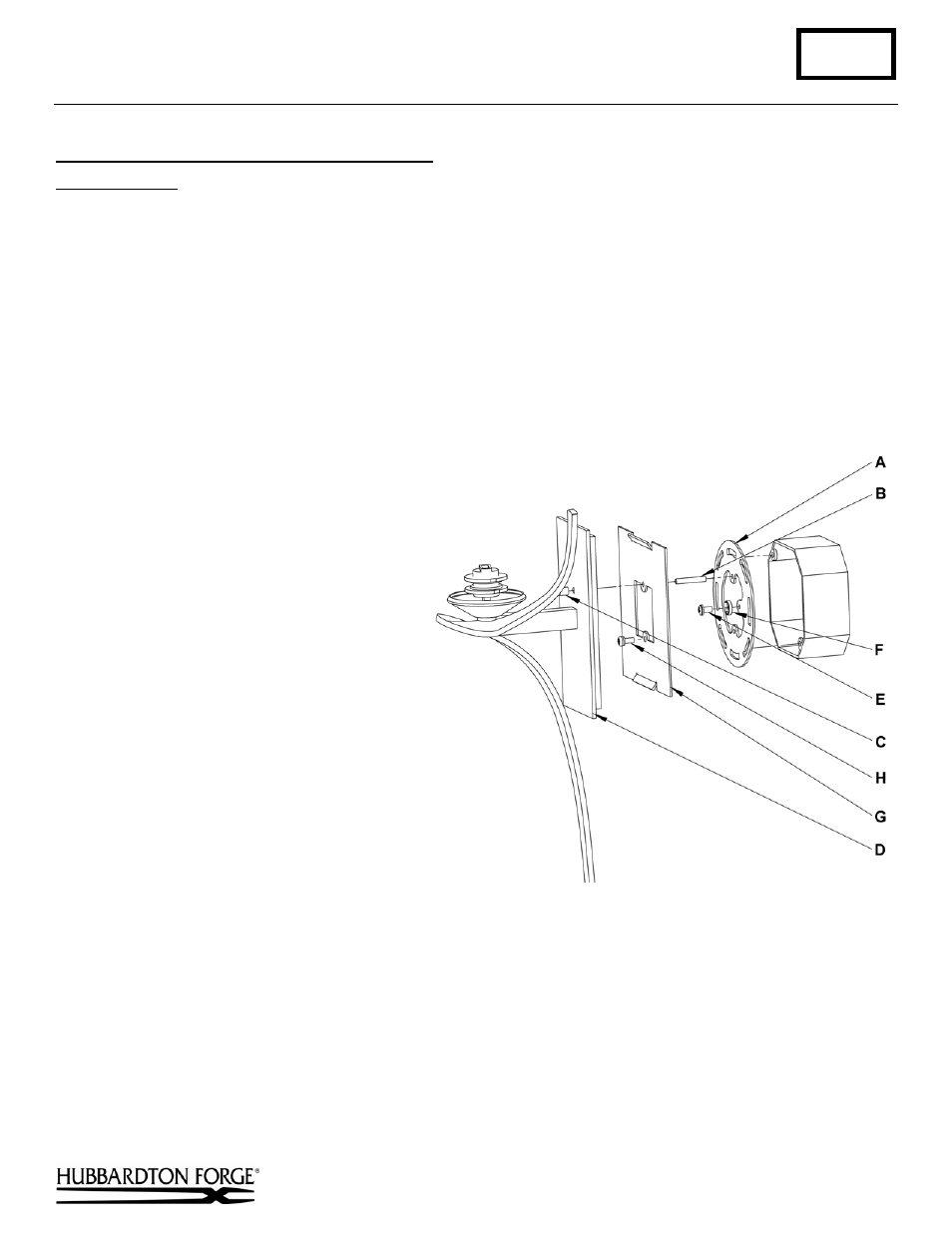

To Mount Fixture to Wall with Standard 4” Box (Figure 2)
Component Parts
A Crossbar
B Threaded
Stud
C Barrel Knob
D Fixture Assembly
E Ground Screw
F Cupped Washer
G Wall Bracket
H 8-32 x 3/8” Screw
Caution: Be sure power is off at the main breaker box prior to installation.
1. Carefully unpack the fixture from the carton.
2. Using two machine screws (not
provided), fasten the crossbar (A) to
the electric box making crossbar (A)
is level.
Note: A new electric box comes with
screws. When replacing a fixture,
retain the existing screws for use with
the new fixture
.
3. Thread stud (B) into the appropriate
hole in the crossbar (A). Adjust the
stud to proper length to ensure the
fixture will fit snugly to the wall.
4. Attach wall bracket (G) using 8-32 x
3/8” screw (H). Threaded stud
installed in crossbar will pass through
wall bracket.
5. Hold the fixture assembly (D) close
to the wall and using suitable wire
connectors, not provided, connect
fixture wires to supply (white to
white or ribbed and black to black or
smooth). Ground the crossbar (A)
using the green ground screw (E) and
cupped washer (F) to secure a pigtail
lead to the bracket.
Caution: Make sure wire connectors
are twisted on securely, and no bare wire is exposed.
6. Slide fixture assembly (D) over threaded stud (B) and push firmly to wall, making sure that no wires are pinched
between fixture back and wall. Fasten with barrel knob (C). Be sure threaded stud (B) is fully seated in the barrel
knob (C).
7. See instructions following to install glass.
(continued)
(Figure 2)
