Installation Instructions
B236
Scrolled Taper Sconce 20-4522 Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 26942

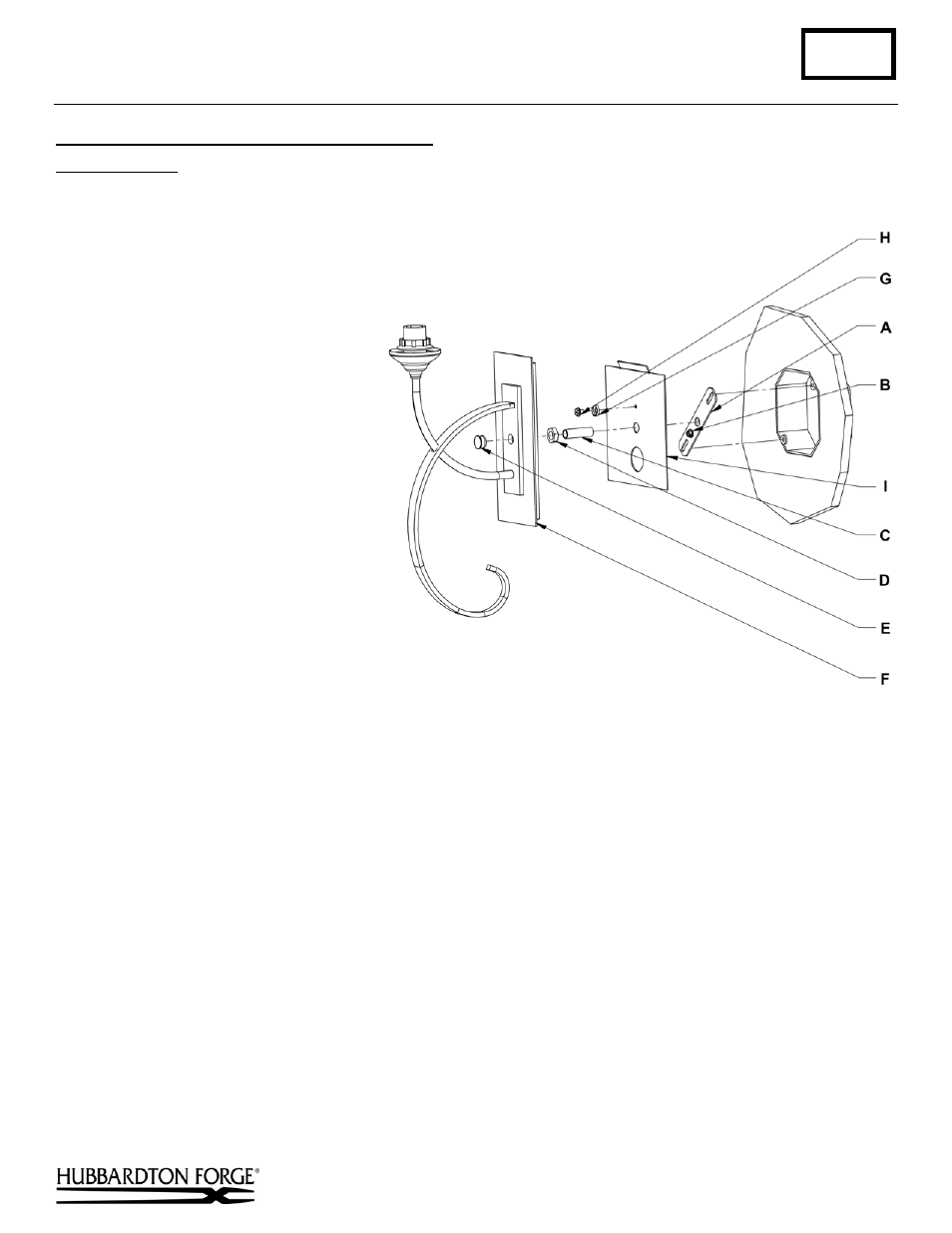

To Mount Fixture to Wall with Standard 4" Box (Figure 2)
Component Parts
A Crossbar
B Ground
Screw
C Nipple
D Lock
Nut
E Threaded Cap
F Fixture Assembly
G Cupped Washer
H Ground Screw
I Wall Plate
Caution: Be sure power is off at the
main breaker box prior to
installation.
1. Carefully unpack the fixture
from the carton.
2. Using two machine screws
(not provided), fasten the
crossbar (A) to the electric box
making sure crossbar is level.
Note: A new electric box
comes with screws. When
replacing a fixture, retain the
existing screws for use with
the new fixture
.
3. Thread the nipple (C) into the
crossbar (A). Adjust the nipple
to proper length to ensure the
fixture will fit snugly to the wall.
4. Ground the crossbar (A) by securing a pigtail
lead around ground screw (B).
5. Orient the wall plate (I) so that the bent tab is at the top and bent away from the wall and slip onto nipple (C). The
tab will fit into the back of the fixture to facilitate alignment.
6. Run a pigtail lead using ground screw (H) and cupped washer (G).
7. Thread the pigtail lead and fixture wires through the large diameter hole at the bottom of the wall plate (I).
8. Hold the fixture assembly (F) close to the wall and using suitable wire connectors, not provided, connect fixture
wires and pigtail leads to supply wires (white to white or ribbed, black to black or smooth and green to green or
bare).
Caution: Make sure wire connectors are twisted on securely, and no bare wire is exposed.
9. Secure nipple (C) and wall plate (I) with lock nut (D).
10. Place fixture firmly against the wall and fasten with threaded cap (E).
11. See instructions following to install glass.
(continued)
(Figure 2)
