Installation Instructions
B236
Scrolled Taper Sconce 20-4522
Page 1 of 3
Hand-Forged,
Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735
26942
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.
After installation extra hardware and accessories are possible; our kits are used on multiple products and options.

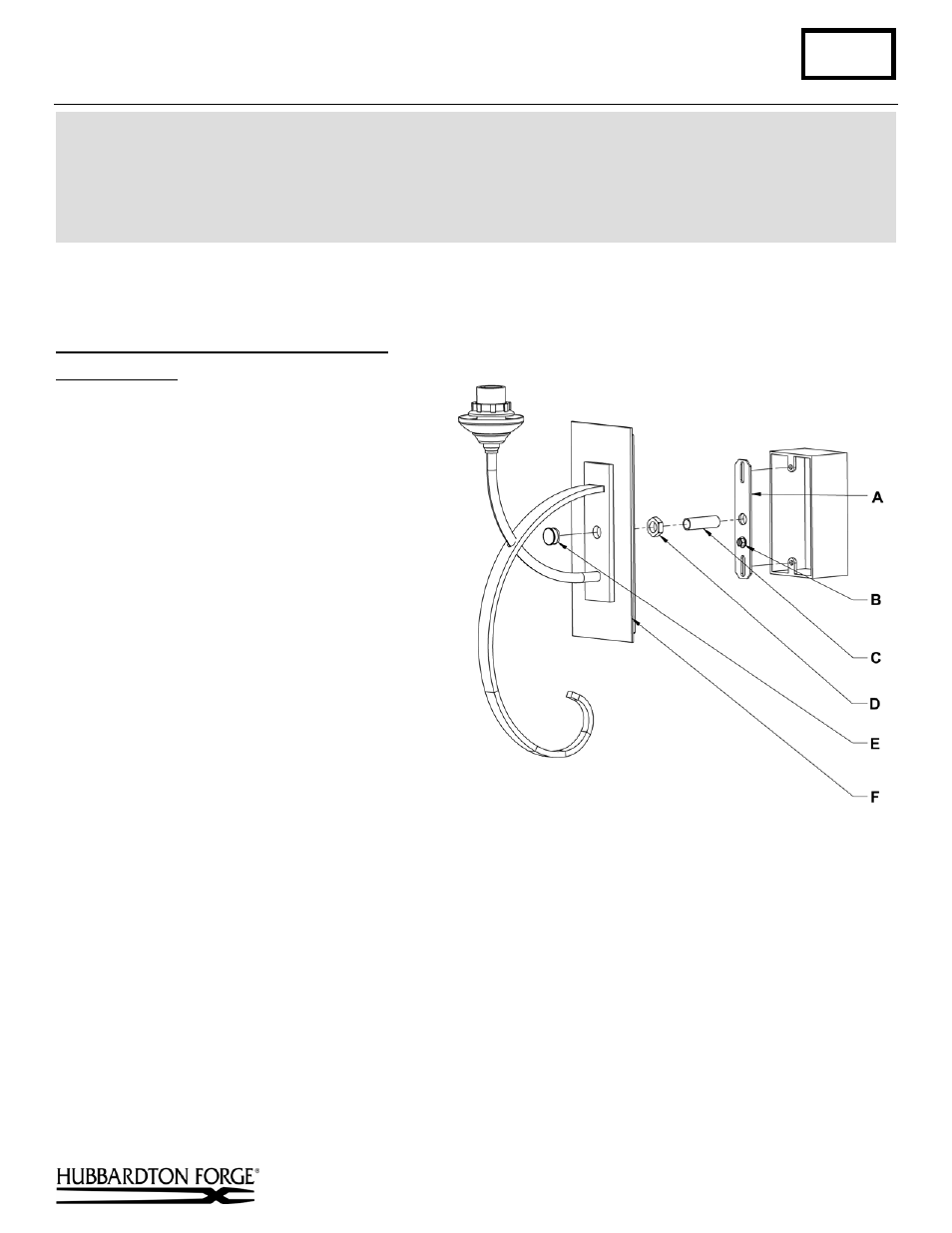

To Mount Fixture to Wall with Single Box
(Figure 1)
Component Parts
A Crossbar
B Ground Screw
C Nipple
D Lock
Nut
E Threaded
Cap
F Fixture
Assembly
Caution: Be sure power is off at the main
breaker box prior to installation.
1. Carefully unpack the fixture from the
carton.
2. Using two machine screws (not
provided), fasten the crossbar (A) to
the electric box making sure crossbar
is level.
Note: A new electric box comes with
screws. When replacing a fixture,
retain the existing screws for use with
the new fixture
.
3. Thread the nipple (C) into the
crossbar (A) and secure with lock nut
(D). Adjust the nipple to proper
length to ensure the fixture will fit
snugly to the wall.
4. Ground the crossbar (A) by securing a pigtail lead
around ground screw (B).
5. Hold the fixture assembly (F) close to the wall and using suitable wire connectors, not provided, connect fixture
wires and pigtail leads to supply wires (white to white or ribbed, black to black or smooth and green to green or
bare).
Caution:
Make sure wire connectors are twisted on securely, and no bare wire is exposed.
6. Carefully tuck all wires behind the fixture, place fixture firmly against the wall and fasten with threaded cap (E).
7. See instructions following to install wall plate.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
