Installation Instructions
B272
Echo Sconce 204320 Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 27786 A

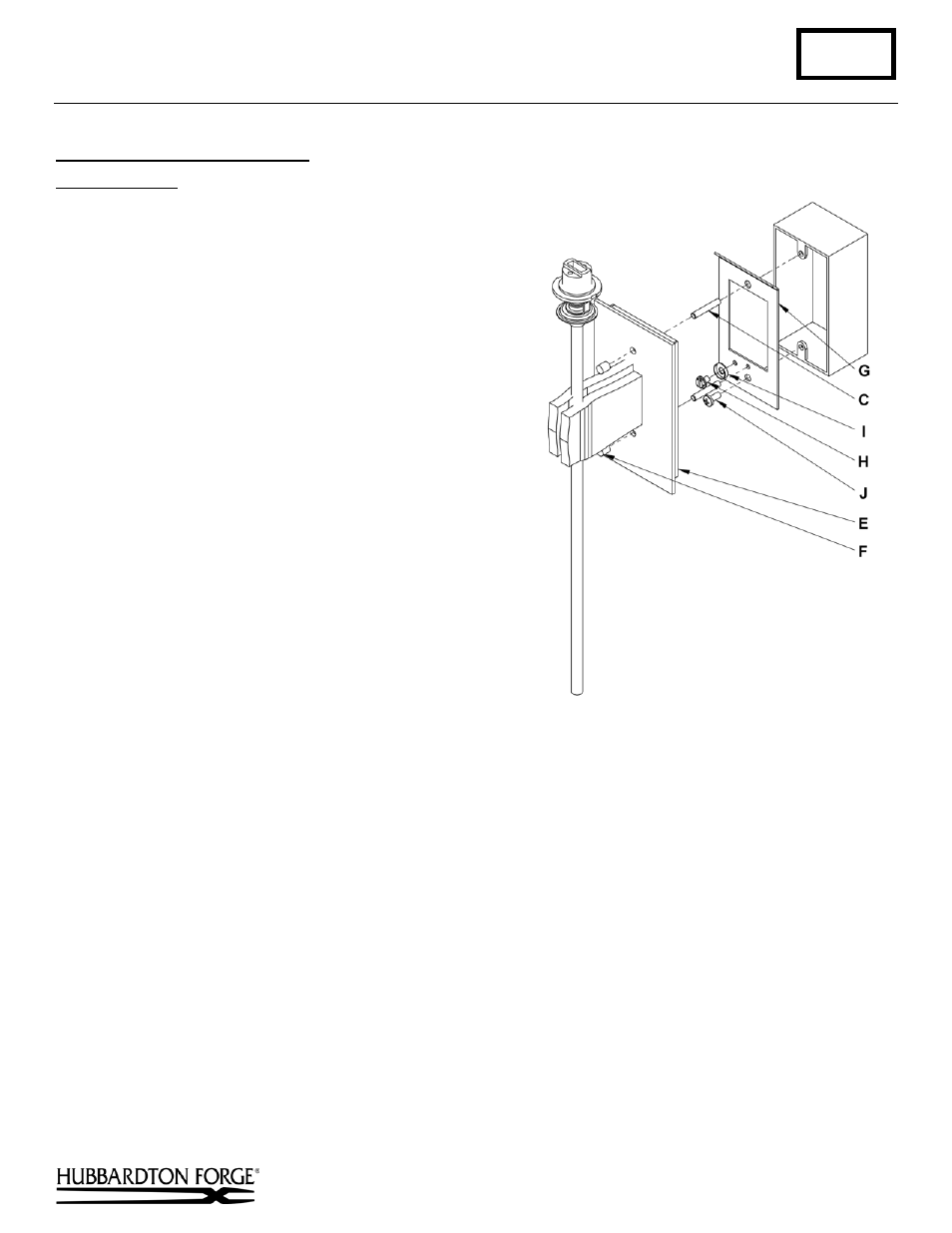

To Mount Fixture to Single Box (Figure 2)
Component Parts
C Threaded Studs Short (2)
E Fixture
F Threaded Knobs (2)
G Single Box Crossbar
H Ground Screw
I
Cupped Washer
J #8 Screw
Caution: Be sure power is off at the main breaker box
prior to installation.
1. Carefully unpack the fixture from the carton.
2. Screw one threaded stud (C) into the top hole of the
electrical box.
3. Orient the single box crossbar (G) so that the bent tab is
at the top and bent away from the wall. The tab will fit
into the back of the fixture to facilitate alignment. Slip
single box crossbar (G) over threaded stud (C). Secure
single box crossbar (G) but threading #8 screw (J) into
electrial box.
4. Attach a pigtail lead to ground screw (H) and cupped
washer (I).
5. Hold the fixture assembly (E) close to the wall and using
suitable wire connectors (not provided) connect fixture
wires to supply (white to white or ribbed and black to
black or smooth). Connect all ground wires (bare copper
or green to bare copper or green).
Caution: Make sure wire connectors are twisted on securely, and no bare wire is exposed.
6. Place fixture (E) firmly against the wall and fasten with threaded knobs (F).
7. See instructions following to install glass.
(continued)
(Figure 2)
