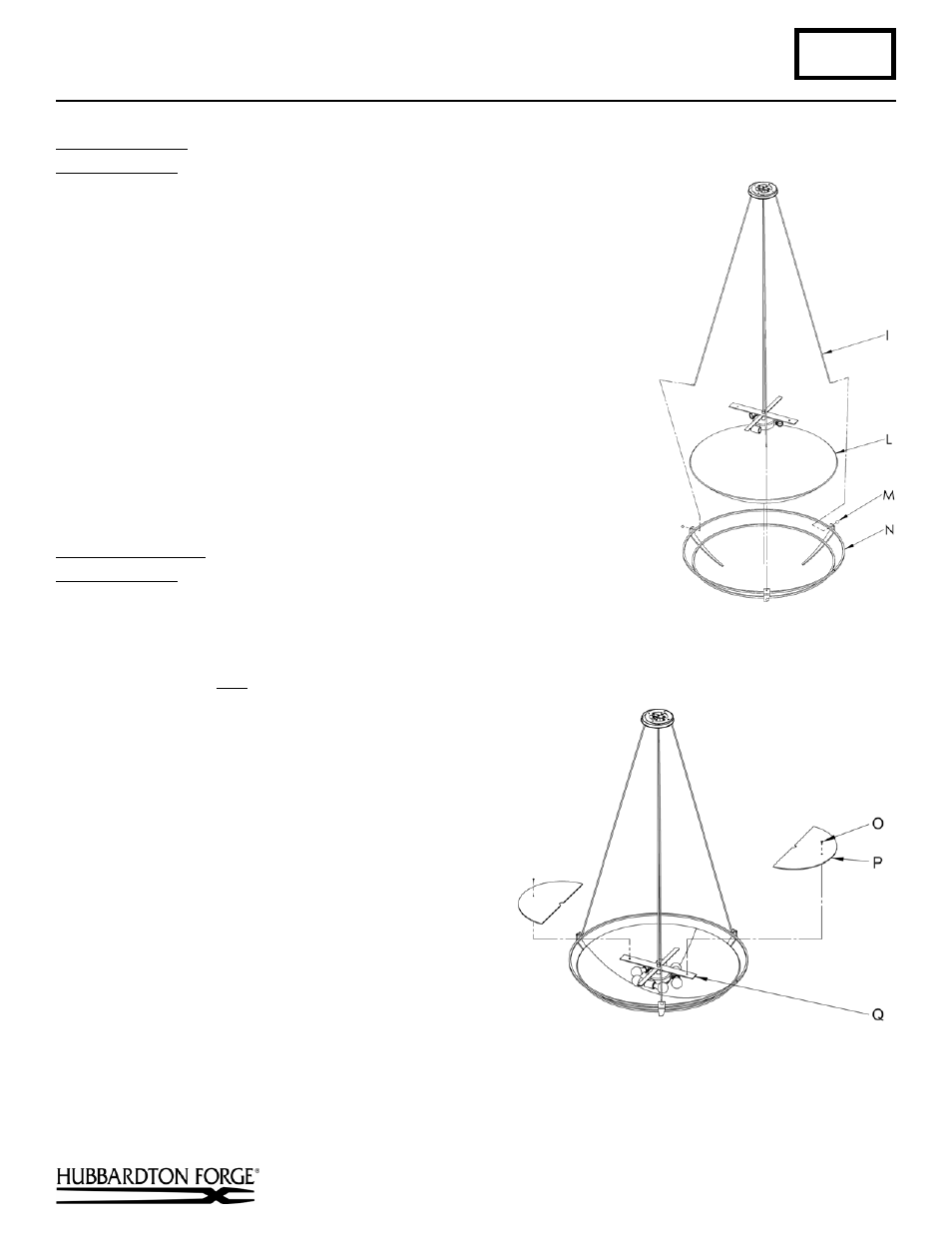

To Install Glass (Figure 5)
Component Parts
I Threaded Rod (3)
P Glass
Q Threaded Ball (3)
R Ring
Assembly
1. Install light bulbs prior to installing glass.
2. Insert the ends of two of the threaded rods (I) through two of the holes in the
ring assembly (N). Secure with threaded balls (M).
3. Place glass (L) in ring assembly. Insert remaining support rod, securing with
remaining threaded ball.
4. Level glass as needed.
To Install Diffuser (Figure 6)
Component Parts
O Thumb Screw (2)
P Diffuser Glass (2)
(Figure 5)
Q Support Bar
1. Install diffuser after fixture is installed.
Place diffuser glass (O) onto support bar (P).
2. Secure diffuser glass by inserting thumb screws (O)
into threaded holes in support bar (Q). Do not over
tighten.
3. Restore Electricity.
(Figure 6)
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
