Assembly & Installation Instructions
A217
For Ellipse Large Nine Light Pendant 13-7531 & 13-7531E Page 2 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22896
To Install to Ceiling (Figures 3 thru 5)
Component Parts
C Support Cable
G Canopy Assembly
H Fixture Assembly
I Ceiling Bracket
J Lag Screws (4)
K Cable Gripper
L Safety Nut
M Threaded Cap
N Threaded Stud
O Ground Screw
P Cupped Washer
W Lock Nut
X Safety Cable
Y Cable Screw
Caution: Be sure power is off at the main breaker
box prior to
installation.
1. Using four lag screws (J) attach ceiling bracket (I) to
a structural member in the ceiling, centering the
crossbar over the outlet box. We've supplied lag
screws with your fixture; however, different
materials and/or construction methods may require
different fasteners. If in doubt, contact a qualified
electrician. Do not attach ceiling bracket directly to
outlet box (Figure 3).
2. Install threaded stud (N) into ceiling bracket (I) a
couple of threads followed by lock nut (W).
3. Raise canopy assembly (G) to ceiling and align so
the threaded stud (N) passes through the canopy.
Adjust threaded stud (N) until it protrudes
approximately 3/16” through the bottom of the
canopy assembly (G). Lower canopy assembly (G) and tighten lock nut
(W) to maintain the threaded studs height.
4. Thread wires and support cable (C) from the fixture assembly (H)
through the canopy assembly (G) (Figure 4).
5. Loosen the three safety nuts (L) on cable grippers (K). It is not
necessary to completely remove them (Figure 5).
6. Raise fixture and push support cables (C) into cable grippers threading
them through ceiling bracket (I) as shown in Figure 5 until cables are
tight and have no slack. Push cables through grippers until desired fixture
height is accomplished.
7. Once support cable is at the correct height, excess cable behind the
gripper can be cut off.
8. Tighten safety nuts (L).
9. Using suitable wire connectors (not provided) connect fixture wires to
supply (white to white and black to black, and bare copper to bare copper
or green supply). Connect all ground wires to green ground screw (O)
and cupped washer (P). Push wires back into outlet box.
Caution: Make sure wire connectors are twisted on securely, and no
bare wire is exposed.
10. Raise canopy assembly (G) to ceiling making sure the fixture pipes and
canopy pipes over lap. Attach safety cable (X) from the canopy assembly to
the ceiling bracket using screw (Y).
11. Refer to instructions following to install glass.
(continued)

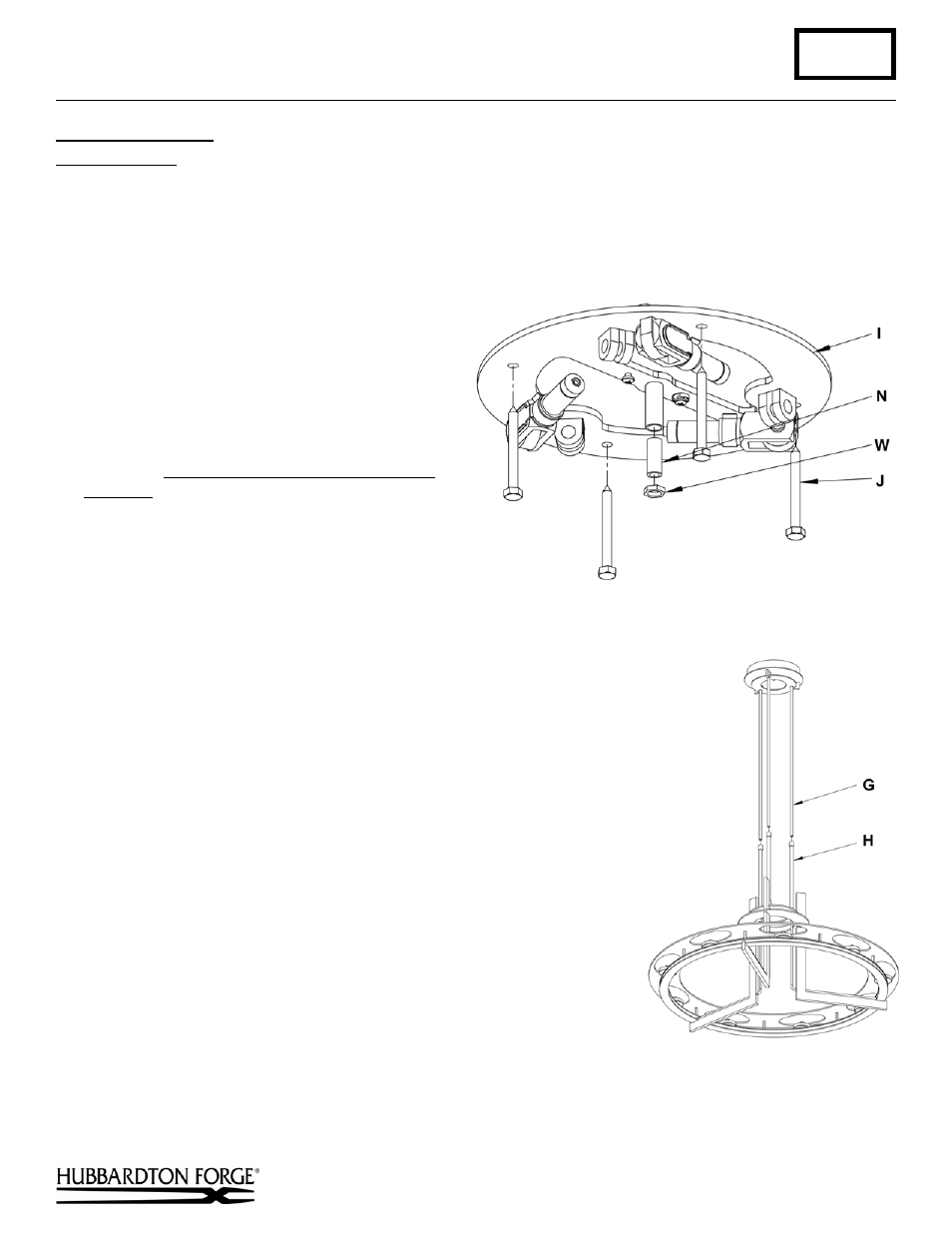

(Figure 3)
(Figure 4)
