Hubbardton Forge 208226 - Manual

Installation Instructions
B46
Wall Sconces 203061, 203062, 203063 & 208226 Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 16162 Rev B
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.
To Install (Figure 1)
Component Parts
A Bracket Assembly
B Machine Screw
C Fixture
D Machine Screw
Caution: Be sure power is off at the main breaker box
prior to installation.
1. Attach bracket assembly (A) to the electrical box
using two machine screws (not provided).
Note: A new electrical box comes with screws,
when replacing a fixture retain screws for use with
the new fixture.
2. Partially thread one machine screw (B) up
through the threaded hole in the top of the
mounting bracket leaving approximately 1/2" of
thread exposed.
3. Attach fixture wires to supply wires, black to
black and white to white. Connect all ground
wires to green ground screw in mounting bracket.
4. Place top hole in fixture back (C) over the screw
that is partially threaded through the top of the
bracket and secure by installing the second
machine screw (D) up through hole in bottom of
fixture back and into bottom of mounting bracket.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

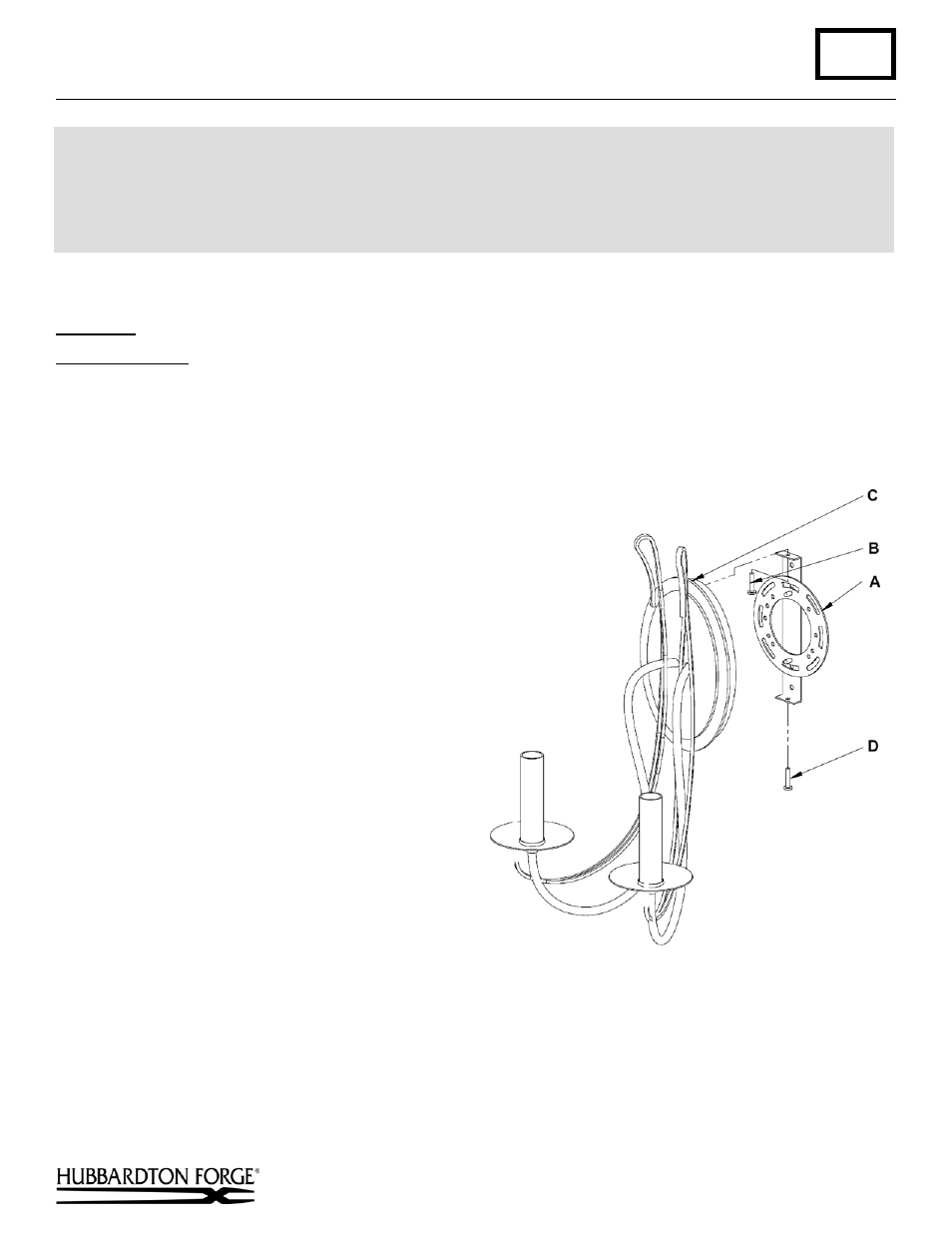

Figure 1
