Installation Instructions
B184
For Ondrian Sconce 20-6303 & 20-6303E Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22803
6. Carefully tuck all wires behind the fixture assembly and inside the wall mount bracket and place the fixture over
the bracket so that the screws in the top of the wall bracket go through the holes in the top of the fixture. Secure
the fixture by threading the remaining black #8 screws (E) up through the holes in the bottom of the fixture and
into the mounting bracket.
Caution: Make sure wire connectors are twisted on securely, and no bare wires are exposed.
To Install Glass with G9 Option

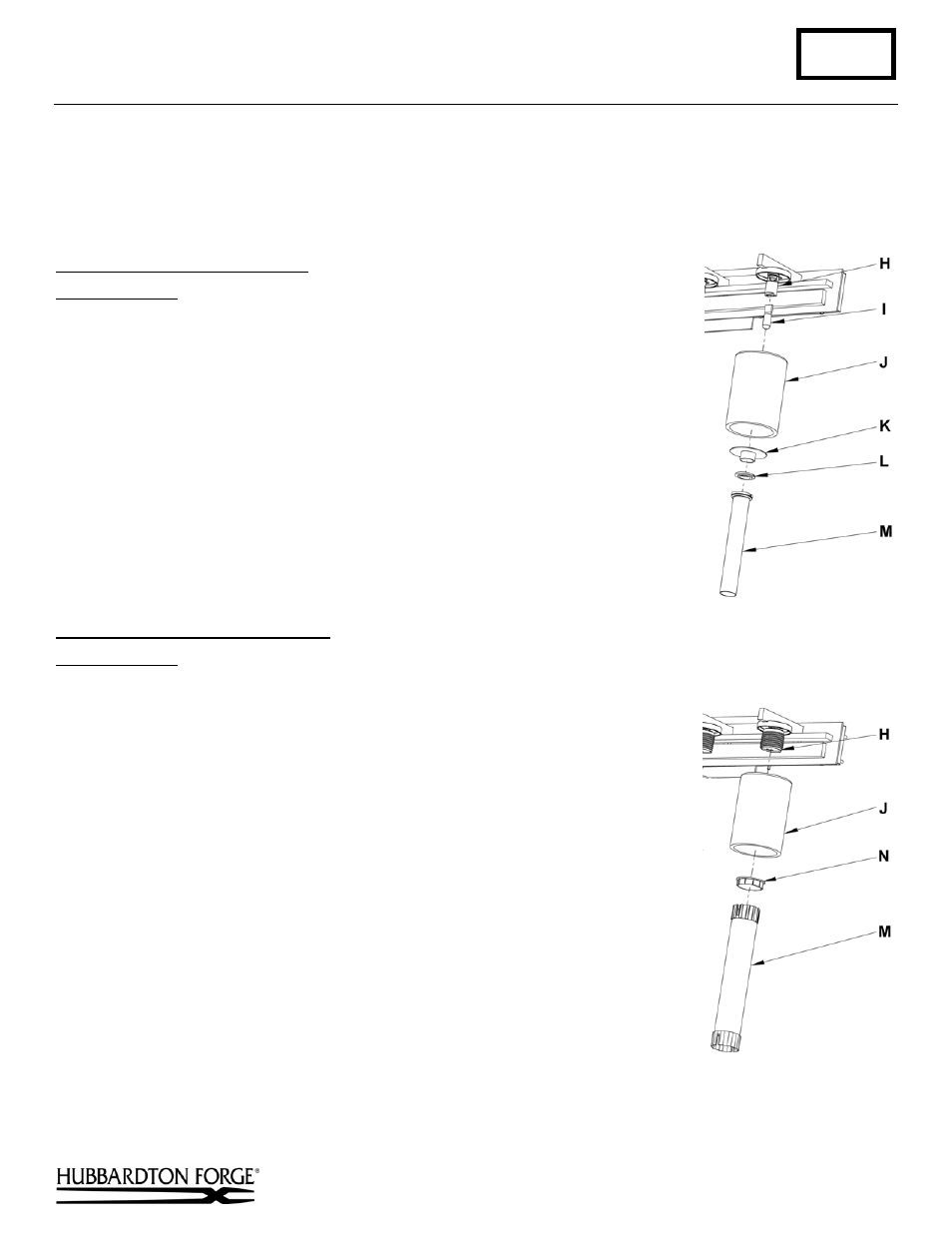

(Figure 2)
Component Parts
H Socket (3)
I Bulb (Included)(3)
J Glass (3)
K Washer Assembly (3)
L Retaining Ring (3)
M Socket
Tool
1. Install light bulbs (I). Be careful not to touch bulbs with bare hands; oil from
the hands will dramatically reduce bulb life. Bulbs are included.
2. Slip glass (J) and washer assembly (K) over socket (H). Thread retaining
ring (L) onto socket (H) using provided socket tool (M). Be careful not to
over tighten.
3. Restore electricity at main breaker.
To Install Glass with GU24 Option
(Figure 3)
Component Parts
H Socket (3)
I Bulb (Included) (3) (not shown)
J Glass (3)
M Socket Tool
N Retaining Ring (3)
1. Remove retaining ring (N) from socket (H). Retaining Rings are shipped
installed.
2. Slip glass (J) over socket (H) and thread retaining ring (N) onto socket (H)
using provided socket tool (M) provided until it rests on inside of glass (J).
Do not over tighten.
3. Install light bulb (I). Bulbs are included.
4. Restore electricity at main breaker.
If you need further assistance, or find that you are missing any parts, please contact
the dealer from which you purchased this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper
installation, lamping or use of this fixture.
(Figure 2)
