Hubbardton Forge 206303 - Manual

Installation Instructions
B184
For Ondrian Sconce 20-6303 & 20-6303E Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22803
For fixtures requiring assembly, please refer to assembly instructions before installation.
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.
Please Note: After installation, extra hardware and accessories may be left due to kits being used on multiple products.
To Mount Fixture to Wall (Figure 1)
Component Parts
A Wall Mount Bracket
B Anchors
(8)
C #10 Screws (8)
D Fixture
Assembly
E #8 Black Screws (4)
F Green Ground Screw
G Cupped
Washer
Caution: Be sure power is off at the
main breaker box prior to installation.
1. Carefully unpack the fixture from
the carton.
2. Center the wall mount bracket (A)
over the electrical box being sure
to hold it plum and level. If the
wall mount bracket has a notch
orient bracket with notch at the
bottom. With a pencil, mark the
location of all mounting holes in the wall mount bracket on the wall behind.
IMPORTANT: Wall mount bracket
must be secured to a solidly mounted electrical box and/or a framing member in at least two locations. Do not
depend on drywall anchors alone to support this fixture. If in doubt, contact a qualified electrician.
Put the wall
mount bracket down and drill 1/4" holes in the locations marked on the wall. For holes using anchors, place the
tapered end of the anchors (B) into the holes and gently tap them flush to the wall using a light weight hammer.
3. Thread the wires in the electrical box through the center hole in the wall mount bracket while moving the bracket
into position. Using the 1" #10 screws (C), screw the bracket securely to the wall. Be careful not to over-tighten or
strip the anchors.
4. Thread the black # 8 screws (E) up through the holes in the top of the wall mount bracket (A). Leave the bottom
screws out for now.
5. Hold the fixture assembly (D) close to the wall mount bracket and using suitable wire connectors (not provided),
connect fixture wires to supply wires (white to white or ribbed and black to black or smooth, and bare copper or
green to bare copper or green). Ground the mounting bracket using the green ground screw (F) and cupped washer
(G) to secure a pigtail lead to the bracket.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

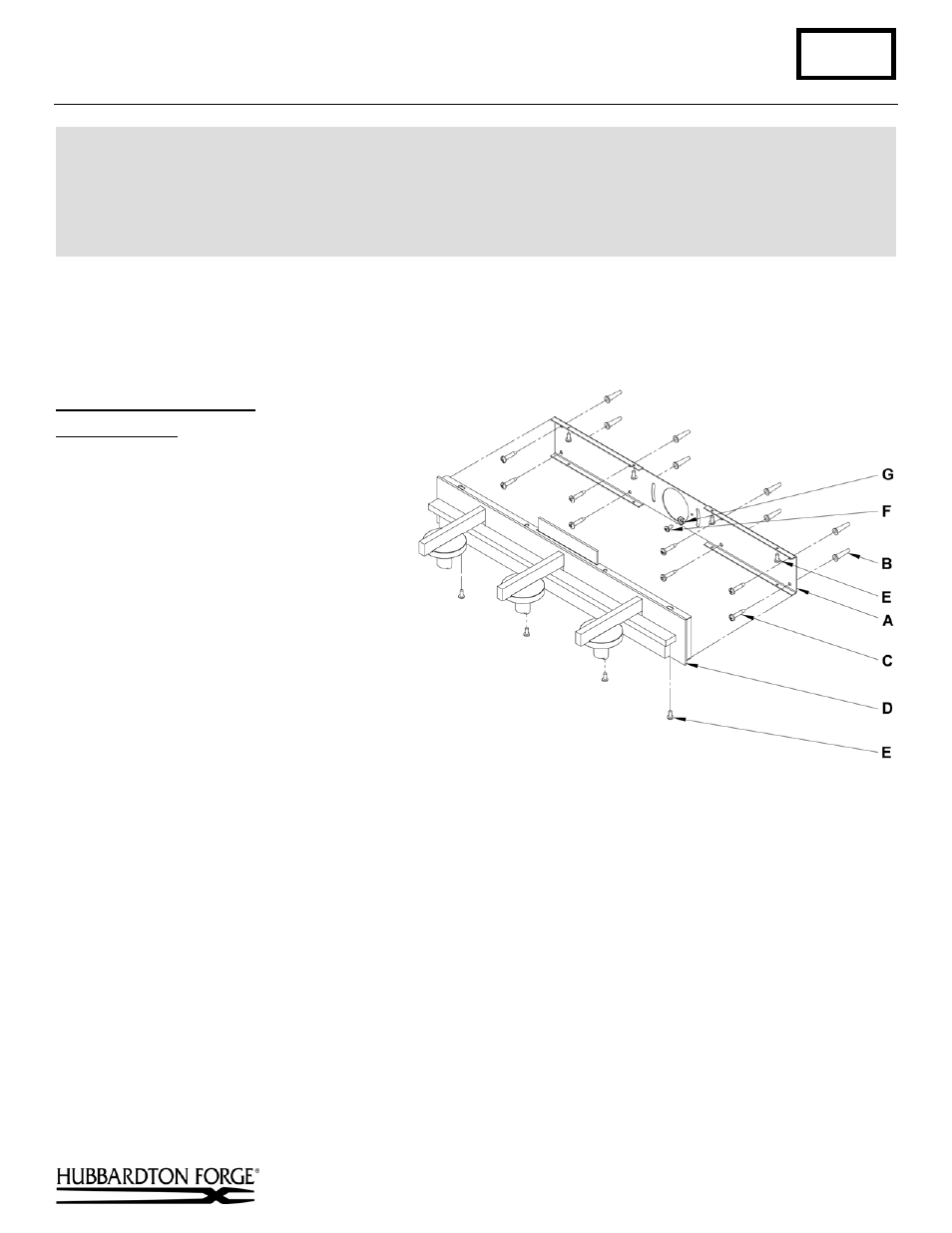

(Figure 1)
