Assembly & Installation Instructions
A336
Apparatus Pendant 18725 Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 28310
To Install Fixture

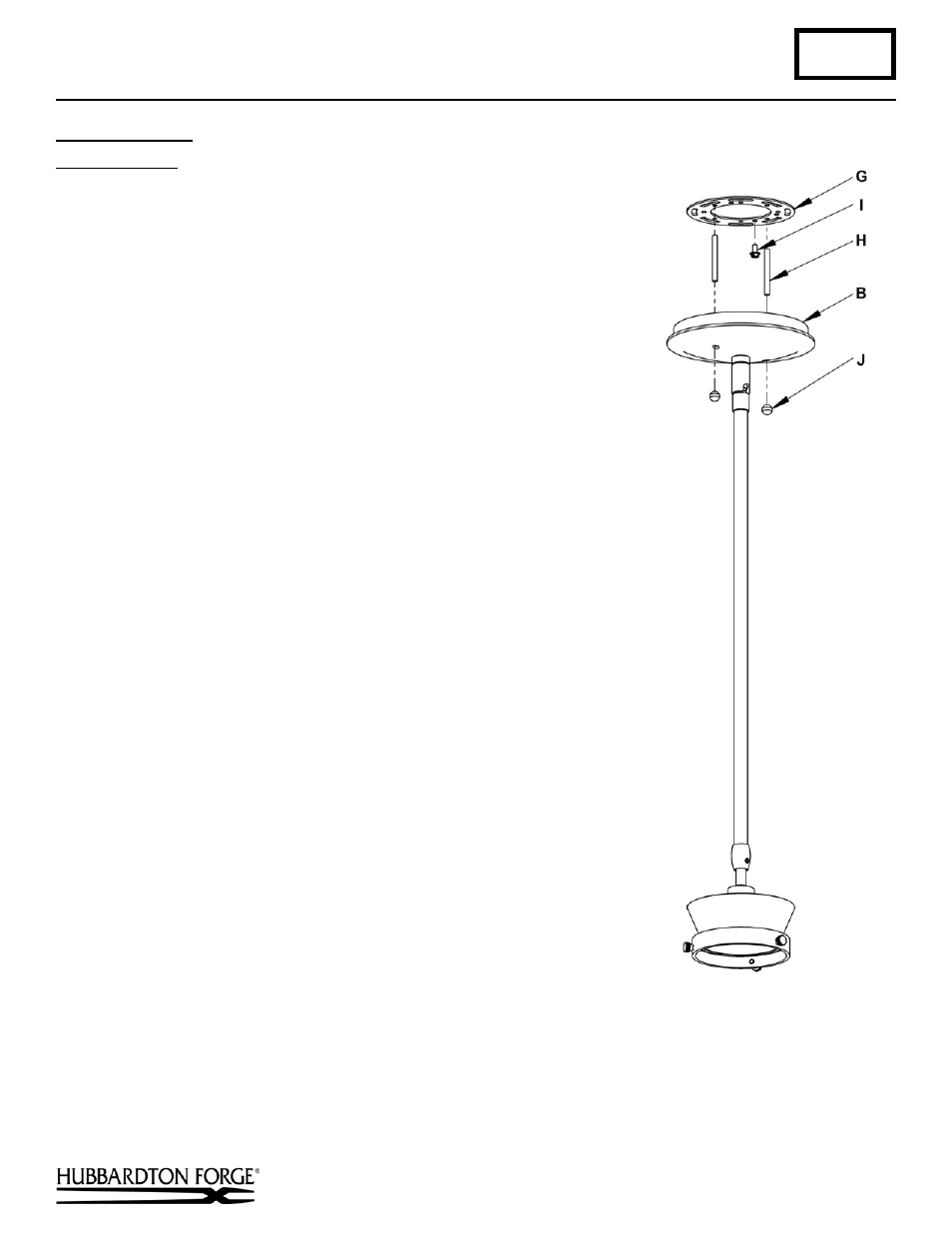

(Figure 3)
Component Parts
B Canopy
G Crossbar
H Threaded stud (2)
I
Ground screw
J Knurled Balls (2)
Caution: Be sure power is off at the main breaker box prior to installation.
1. Thread studs (H) through appropriate holes in the crossbar (G) to
match hole centers on canopy (B). Move ground screw (I) to another
available threaded hole if necessary.
2. Using two machine screws (not provided), fasten the crossbar (G) to
the electric box using outer oval slots to orient fixture to desired
hanging position.
Note: A new electric box comes with screws. When replacing a fixture,
retain the existing screws for use with the new fixture.
3. Using suitable wire connectors (not provided) connect fixture wires to
supply (white to white and black to black). Run a pigtail lead from
crossbar ground screw (I) to the junction box and connect all ground
wires (bare copper or green to bare copper or green).
Caution: Make sure wire connectors are twisted on securely, and no
bare wire is exposed.
4. Slide fixture canopy (B) with fixture attached, over threaded studs (H)
and push firmly to ceiling making sure that no wires are pinched
between fixture canopy and ceiling. Fasten with the knurled balls (J).
Be sure studs (H) are fully seated in the knurled balls (J).
Note: For sloped ceilings the notch in the swivel should face towards
the down side.
(continued)
(Figure 3)
