Assembly & Installation Instructions
A289
For Staccato Pendant 18-497 Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 26777
Please Note: After installation extra hardware and accessories are possible; our kits are used on multiple products and
options.

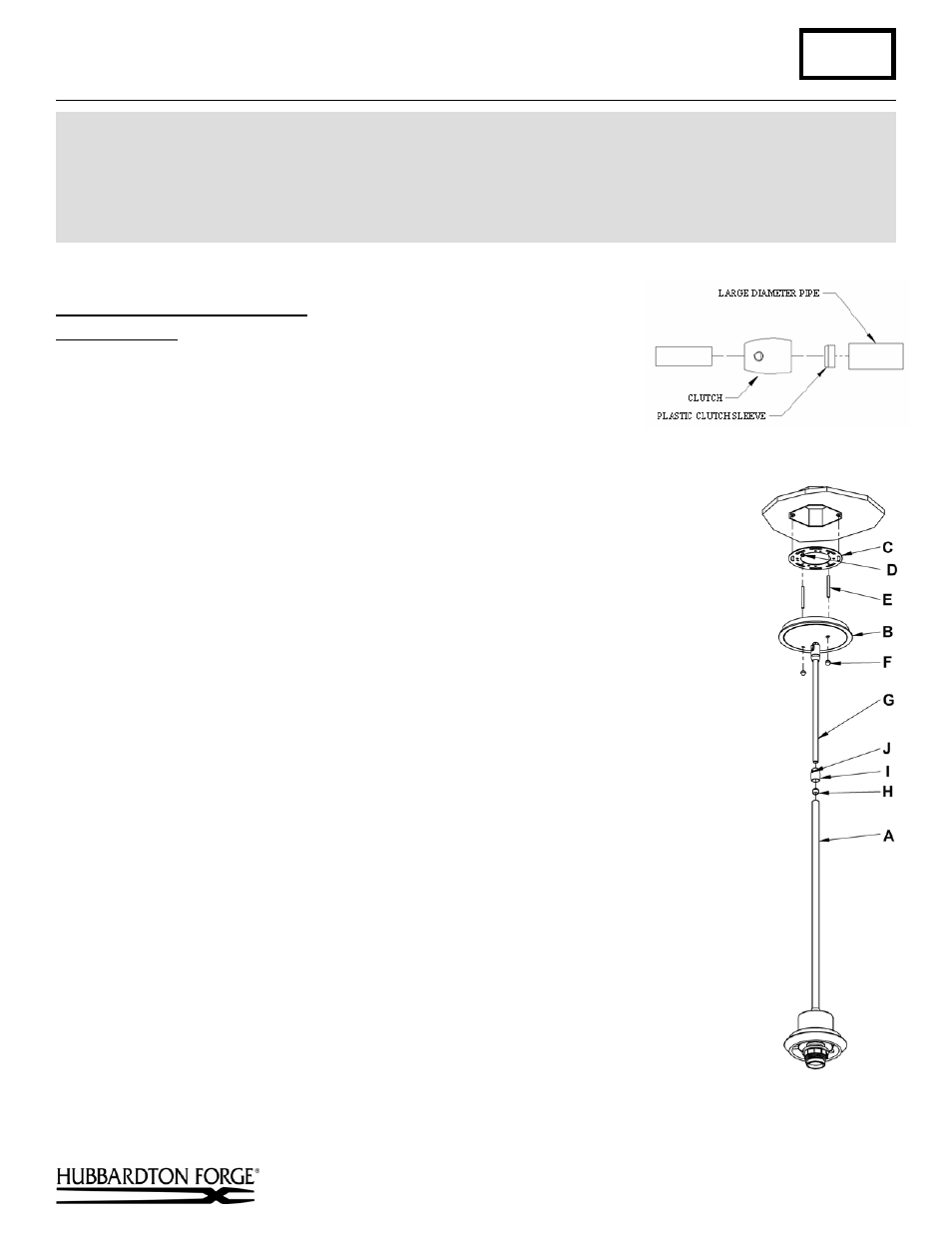

To Complete Fixture Assembly (Figures 1 & 2)
Component Parts
A Fixture Pipe
B Canopy
C Crossbar
D Ground
Screw
E Threaded Stud (2)
F Knurled Balls (2)
G Canopy
Pipe
H Plastic Clutch Sleeve
I Clutch
J Set Screw
Caution: Be sure power is off at the main breaker box prior to installation.
1. Thread the wires from the fixture pipe (A) into and through the canopy pipe (G) up
through the canopy (B).
2. Unscrew the clutch (I) from the fixture pipe (A); slide it across the wires and onto the
canopy pipe (A). Follow this with the plastic clutch sleeve (H), oriented so the tapered
end of the clutch sleeve nests in the clutch (Figure 1).
3. Slide the canopy pipe (G) as far as necessary to give you the total length of the fixture
which you desire. Be careful not to scratch the pipe surfaces and to pull excess wire up
through the canopy pipe (G). Screw clutch (I) onto fixture pipe (A). There must be a
minimum 1-1/2" of inner pipe inside the outer pipe. Hand-tighten the clutch to
temporarily hold this adjustment. The clutch is not securely fastened at this point; do
not depend on it to hold the fixture.
Important: To ensure full connection strength, be sure the tapered end of the plastic clutch
sleeve is oriented toward the clutch when assembled and securely tighten set screw
(Figure 1).
4. Thread studs (E) through appropriate holes in crossbar (C) to match holes in
canopy (B).
5. Using two machine screws (not provided), fasten the crossbar (C) to the electric box.
Note: A new electric box comes with screws. When replacing a fixture, retain the existing
screws for use with the new fixture.
6. Using suitable wire connectors (not provided) connect fixture wires to supply (white to
white or ribbed and black to black or smooth). Run a pigtail lead from crossbar ground
screw (D) to the junction box and connect all ground wires (bare copper or green to
bare copper or green).
Caution: Make sure wire connectors are twisted on securely, and
no bare wire is exposed.
7. Slide canopy (B) over threaded studs (E) and push firmly to ceiling, making sure that
no wires are pinched between fixture canopy and ceiling. Fasten with knurled balls (F).
Be sure studs (E) are fully seated in the knurled balls (F).
8. Once the fixture is fastened to the ceiling, tighten the set screw (J) in clutch (I) firmly
with hex wrench provided. Only after the set screw (J) is tight should you install the glass.
9. Refer instructions to instructions following to install glass.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 2)
(Figure 1)
