Assembly & Installation Instructions
A327
Apparatus Pendant 138801 Page 3 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 28105
To Complete Fixture Assembly
OPTION 2: GLASS SIDE UP (Figure 3)
Component Parts
A Fixture
B Rod
C Ball
I Counterweight.
J Block
K Body
L Set Screw
M Thumb Screw (short)
N Thumb Screw (3)
P Glass
Q Bulb
R Shield
1. Install bulb (Q). Be careful not to touch bulb with bare
hands; oil from the hands will dramatically reduce bulb
life.
2. Screw shield (R) on to socket. Do not over tighten.
3. To install fixture with the glass side up, the orientation of
the block (J) must be changed (Figure 4). Set fixture body
(K) on a flat surface.
4. Loosen set screw (L). Carefully flip block (J) over. Make
sure that the block stays the same distance from the
counterweight (I) and glass (P). Make sure that the top of
the block is parallel to the top of the fixture body
(K).(Figure 4) Retighten set screw (L)
5. Loosen the three thumb screws (N). It is not necessary to
remove them from the fixture. (Figure 3)
6. Set glass (P) into fixture body (K) and tighten thumb
screws (N) equally, until snug against glass.
7. Remove ball (C) from rod (B). Loosen Thumb screw (M)
from block (J). Slide fixture body (K) up on to rod (B),
slipping the fixture body (K) over the shield (R). Adjust
to desired height and tighten thumb screw (M).
8. Reattach ball (C) onto the rod (B)
9. Restore electricity at main breaker.
(continued)

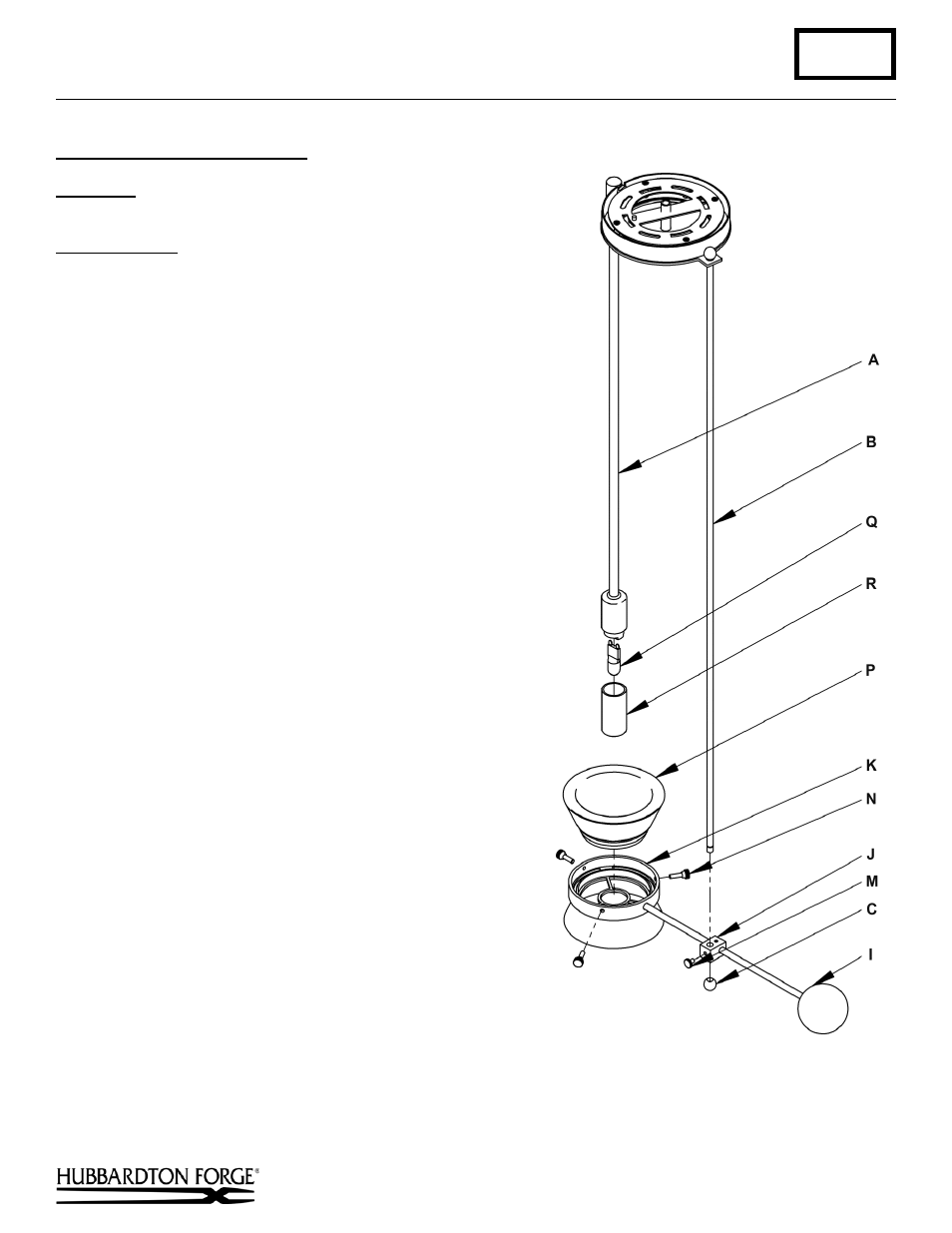

(Figure 3)
