Assembly & Installation Instructions
A327
Apparatus Pendant 138801 Page 2 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 28105
To Complete Fixture Assembly
OPTION 1: GLASS SIDE DOWN (Figure 2)
( For GLASS SIDE UP installation see next page)
Component Parts
A Fixture
B Rod
C Ball
I Counterweight
J Block
K Body
M Thumb Screw
N Thumb Screw (3)
P Glass
Q Bulb
R Shield
1. Install bulb (Q). Be careful not to touch bulb with bare hands; oil
from the hands will dramatically reduce bulb life.
2. Screw shield (R) on to socket. Do not over tighten.
Note: The fixture body (K) is factory shipped ready for installation
with glass side down. To reverse fixture and install with glass
side up, see To Complete Fixture Assembly –GLASS SIDE UP
(Figure 3) next page.
3. Loosen the three thumb screws (N). It is not necessary to remove
them from the fixture.
4. Raise glass (P) up into fixture body (K) and tighten thumb screws
(N) equally, until snug against glass.
5. Remove ball (C) from rod (B). Loosen Thumb screw (M) from
block (J). Slide fixture body (K) up on to rod (B), slipping the
fixture body (K) over the shield (R). Adjust to desired height and
tighten thumb screw (M).
6. Reattach ball (C) onto the rod (B)
7. Restore electricity at main breaker.
(continued)

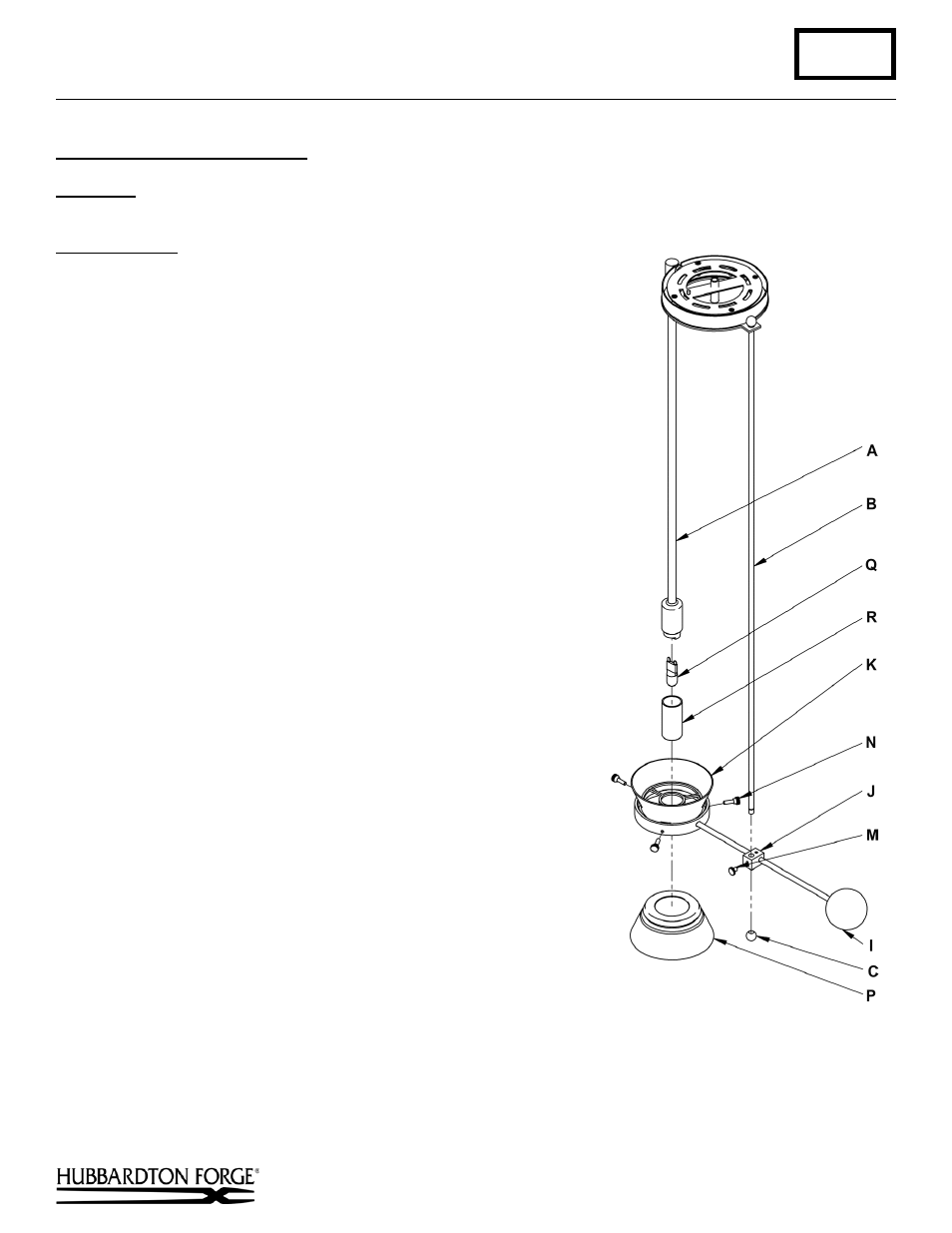

(Figure 2)
