If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

H U B B A R D T O N F O R G E . C O M

hand-forged, vermont-made lighting and accessories

154 RT. 30 SOUTH

•

CASTLETON, VERMONT 05735

30714

Assembly & Installation Instructions

To Complete Fixture Assembly

(Figures 3 & 4)

Component Parts

A Fixture Pipe (2)

C Hex Nipple

F Canopy Pipe (2)

G Clutch (2)

H Plastic Clutch Sleeve (2)

I Set Screw (2)

J Canopy

CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX
PRIOR TO INSTALLATION.

1. Thread wires from the fixture pipe (A) through canopy (J).
Slide canopy (J) down fixture pipe (A) until it rest on top of
fixture.

2. Thread the wires from the fixture pipe (A) through the
canopy pipe (F) and up through the hex nipple (C).

3. Unscrew the clutch (G) from the canopy pipe (F); slide it
across the wires and onto the fixture pipe (A). Follow this
with the plastic clutch sleeve (H), oriented so the tapered
end of the clutch sleeve nests in the clutch (Figure 3).

4. Slide the canopy pipe (F) as far as necessary onto fixture
pipe (A) to give you the total length of the fixture which you
desire. Be careful not to scratch the pipe surfaces and to
pull excess wire up through the canopy pipe (F).

Screw clutch (G) onto canopy pipe (F). There must be a
minimum 1-1/2" of inner pipe inside the outer pipe.
Hand-tighten the clutch to temporarily hold this adjustment.
The clutch is not securely fastened at this point; do not
depend on it to hold the fixture.

Important: To ensure full connection strength, be sure the tapered

end of the plastic clutch sleeve is oriented toward the clutch when
assembled (Figure 3).

A361

Pluto 5lt Pendant 137805

Page 2 of 4

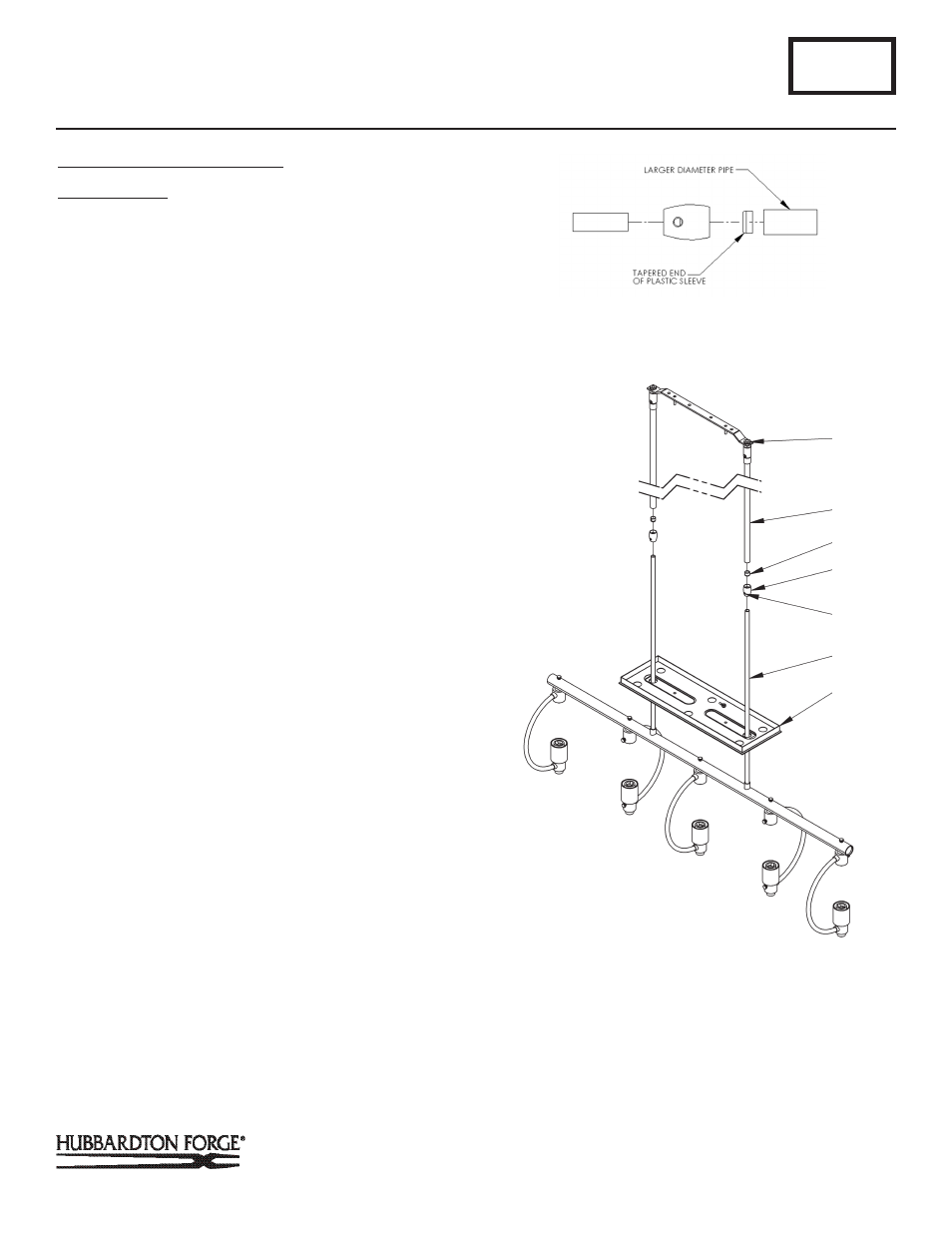

(Figure 3)

(Figure 4)

(Continued)
