Assembly & Installation Instructions
A108
After Hours Pendant 13-7860F Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 19820 Rev B

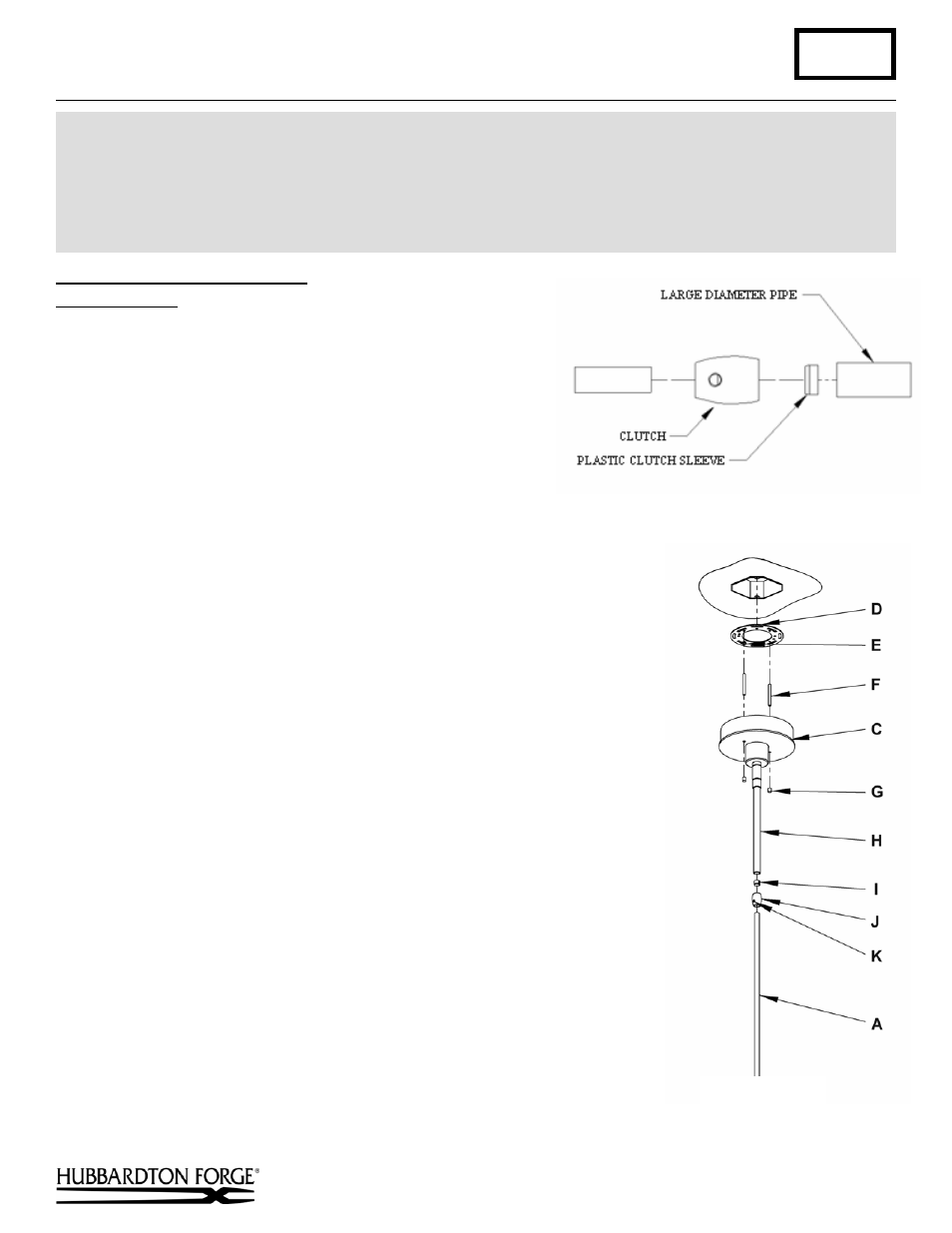

To Complete Fixture Assembly (Figures 2 & 3)
Component Parts
A Fixture Pipe
C Canopy
D Crossbar
E Ground
Screw
F Threaded Stud (2)
G Barrel Knob (2)
H Canopy
Pipe
I Plastic Clutch Sleeve
J Clutch
K Set
Screw
Caution: Be sure power is off at the main breaker box prior to installation.
1. Thread the wires from the fixture pipe (A) into and through the canopy pipe (H)
up through the canopy (C).
2. Unscrew the clutch (J) from the canopy pipe (H); slide it across the wires and
onto the fixture pipe (A). Follow this with the plastic clutch sleeve (I), oriented
so the tapered end of the clutch sleeve nests in the clutch.
3. Slide the canopy pipe (H) as far as necessary to give you the total length of the
fixture which you desire. Be careful not to scratch the pipe surfaces and to pull
excess wire up through the canopy pipe (H). Screw clutch (J) onto canopy pipe
(H). There must be a minimum 1-1/2" of inner pipe inside the outer pipe. Hand-
tighten the clutch to temporarily hold this adjustment. The clutch is not securely
fastened at this point; do not depend on it to hold the fixture.
Important: To ensure full connection strength, be sure the tapered end of the
plastic clutch sleeve is oriented toward the clutch when assembled and securely
tighten set screw (Figure 2).
4. Using suitable wire connectors (not provided), connect ballast wires to lamp
wires (red to red, yellow to blue) and the green ground wire to ground screw (E)
on the crossbar. Push wire nuts to the inside of canopy (C) next to ballast
making sure not to cover the mounting holes in the canopy.
5. Thread studs (F) through appropriate holes in crossbar (D) to match holes in
canopy (C).
6. Using two machine screws (not provided), fasten the crossbar (C) to the electric
box.
Note: A new electric box comes with screws. When replacing a fixture, retain the
existing screws for use with the new fixture.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 2)
(Figure 2)
(Figure 3)
