Assembly & Installation Instructions
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
A311
Brindille Adjustable Pendant 137665 Page 3 of 4
(Continued)

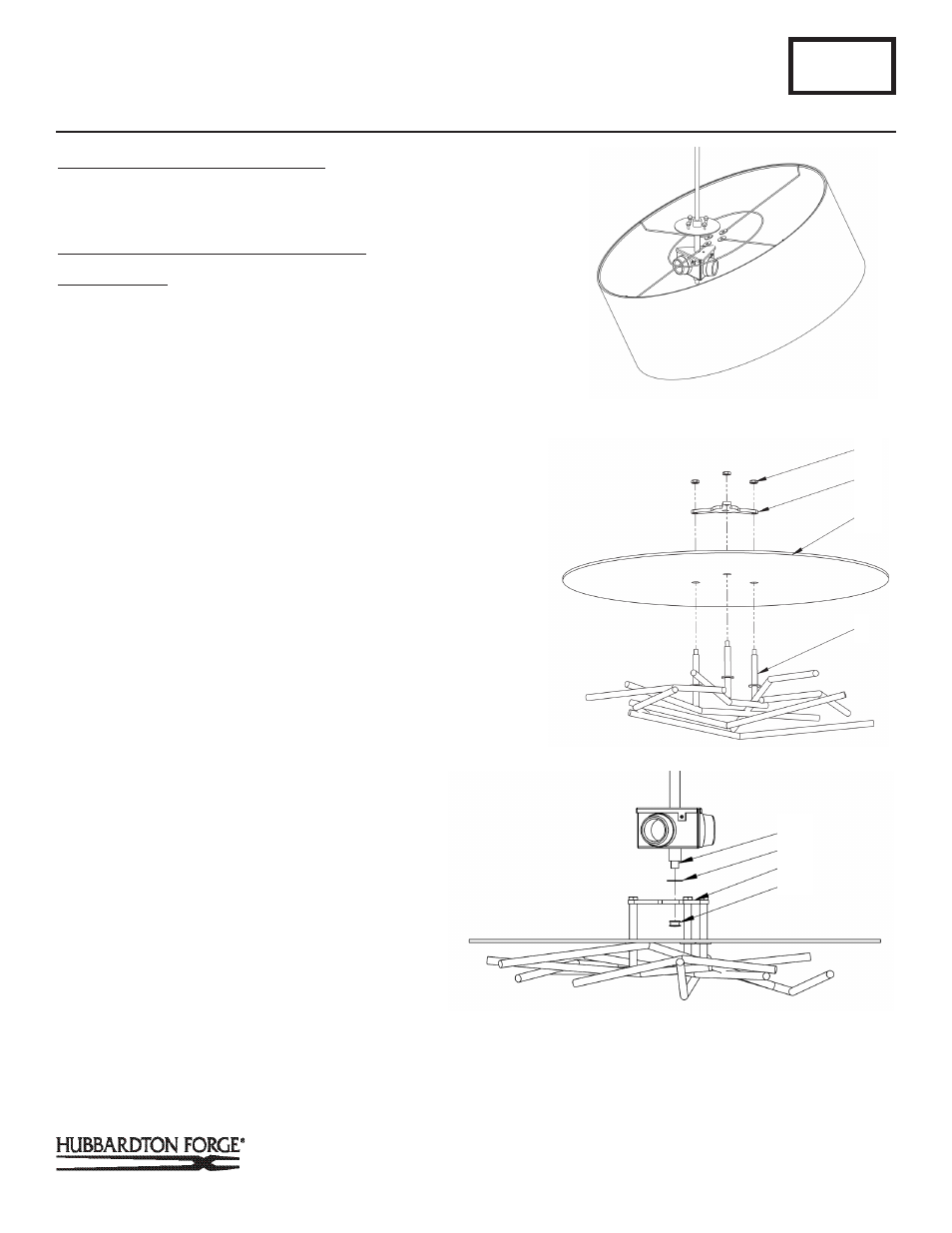

(Figure 6)
(Figure 4)
K
L
M
N
Complete Assembly & Install Fixture (Figures 2 & 3)
(Continued)
10. Refer to instructions below to install shade and bulb(s).
Install Bottom Diffuser & Lower Assembly (Figures 4, 5 & 6)
Component Parts
K ¼-20 Nut (3)
L Spider
M Bottom Diffuser
N Lower Assembly
O Threaded Nipple
P Cap
Q Lock Washer
1. Tilt and lift shade up over socket and large washer.
Note: It may be helpful to secure shade to canopy pipe (J) to
simplify the next assembly steps.
2. Remove ¼-20 nuts (K) and spider (L) from the lower
assembly (N) and set aside.
3. Align holes in diffuser (M) with the three studs on the lower
assembly (N). Lower diffuser until it sits on the washer of the
lower assembly (N) (Figure 5).
4. Replace Spider (L) and ¼-20 nuts (K) and tighten.
5. Remove cap (P) and lock washer (Q) from threaded nipple
(O) and set aside.
6. Feed lock washer (Q) over threaded nipple (O) followed by
lower assembly (N) (Figure 6).
7. While holding lower assembly (N) over the threaded nipple
(O), twist cap (P) onto the nipple and tighten.
Note: Cap (P) must be snug against lower assembly (N) to prevent
lower assembly from tipping. O
Q
P
N
(Figure 5)
