If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

H U B B A R D T O N F O R G E . C O M

hand-forged, vermont-made lighting and accessories

154 RT. 30 SOUTH

•

CASTLETON, VERMONT 05735

28106 A

Assembly & Installation Instructions

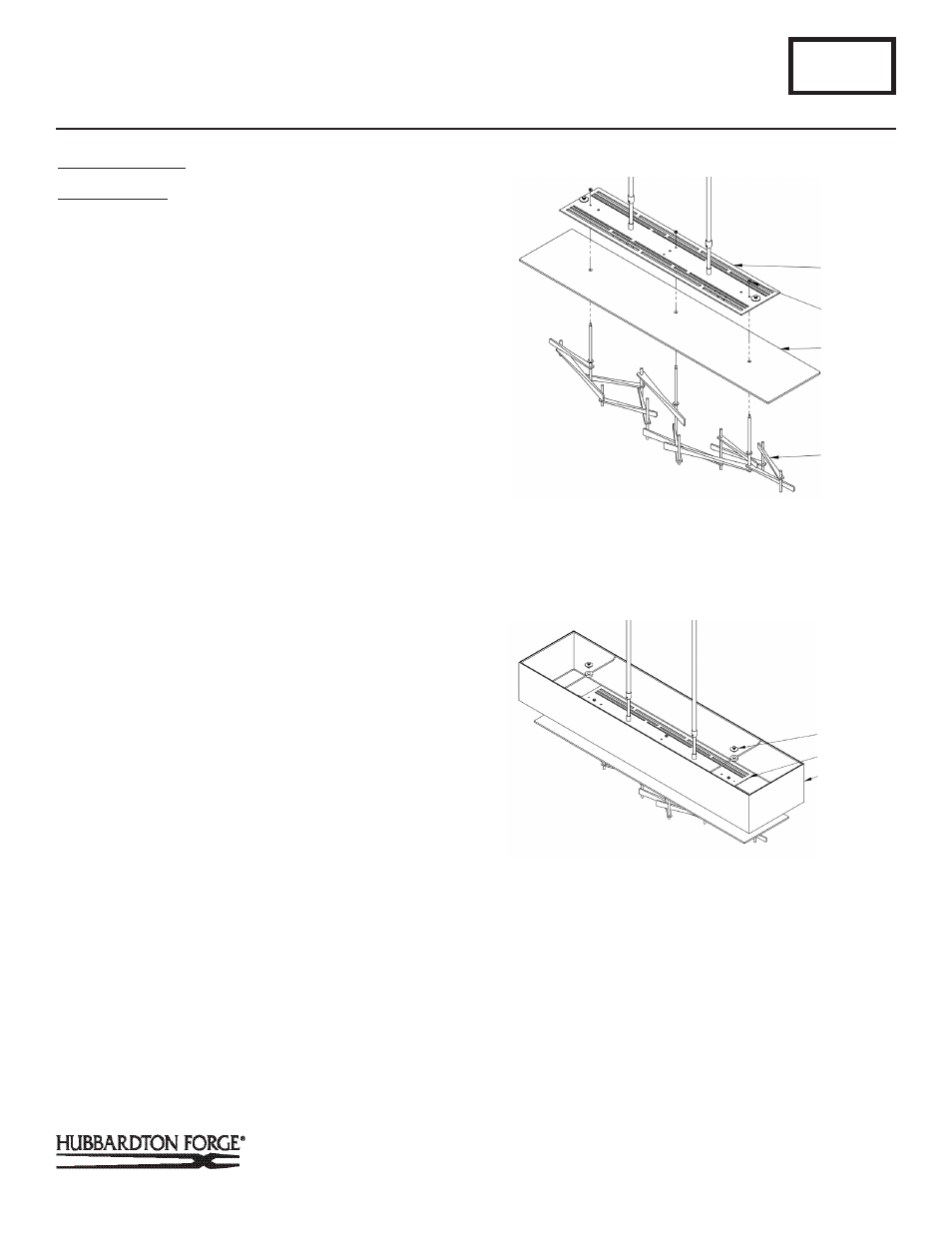

Fixture Assembly

(Figures 6 & 7)

Component Parts

Q Hex Nut (2)

R Diffuser

S Lower Assembly

T Shade

U Thumb Screw with Washer and Hex Nut (2)

V Fixture

1. Remove nuts (Q) from lower assembly (S) and slip diffuser

(R) onto lower assembly (S).

2. Raise lower assembly (S) and diffuser (R) so the threaded

studs pass through the top of the fixture (V).

3. Install the two outer hex nuts (Q) onto the threaded studs

and tighten.

4. Install the third inner hex nut (Q) onto the center threaded

stud and only hand tighten. To level the diffuser tighten or

loosen the middle hex nut as needed.

5. Install bulbs (not included).

See Figure 7 for remaining steps.

6. Remove thumb screw assembly (U) from top of fixture (V).

Save for later use. Thumb screws are shipped installed.

Note: Leave washer and nut on thumb screw.

7. Install shade (T) from the bottom and tilt so it will pass

fixture (V). It will be necessary to raise one side of the shade

completely past the diffuser and over towards the canopy

pipes as far as it will go to allow the other side of the shade

to pass the diffuser. Lower the shade (T) so it rests on top of

the fixture (V).

8. Secure the shade (T) with the thumb screws (U).

9. Restore electricity at main breaker.

A328

Cavaletti Pendant 137670

Page 4 of 4

(Figure 6)

(Figure 7)
