28106 A

Assembly & Installation Instructions

To Complete Fixture Assembly

(Figures 3 & 4)

Component Parts

A Fixture Pipe (2)

C Hex Nipple

F Canopy Pipe (2)

G Clutch (2)

H Plastic Clutch Sleeve (2)

I Set Screw (2)

J Canopy

CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX
PRIOR TO INSTALLATION.

1. Thread wires from the fixture pipe (A) through canopy (J).

Slide canopy (J) down fixture pipe (A) until it rest on top of

fixture.

2. Thread the wires from the fixture pipe (A) into and through

the canopy pipe (F) up through the hex nipple (C).Raise

glass (I) until groove is aligned with thumb screws (J).

3. Unscrew the clutch (G) from the canopy pipe (F); slide it

across the wires and onto the fixture pipe (A). Follow this

with the plastic clutch sleeve (H), oriented so the tapered

end of the clutch sleeve nests in the clutch (Figure 3).

4. Slide the canopy pipe (F) as far as necessary to give you

the total length of the fixture which you desire. Be careful

not to scratch the pipe surfaces and to pull excess wire up

through the canopy pipe (F). Screw clutch (G) onto canopy

pipe (F). There must be a minimum 1-1/2" of inner pipe

inside the outer pipe. Hand-tighten the clutch to temporarily

hold this adjustment. The clutch is not securely fastened at

this point; do not depend on it to hold the fixture.

Important: To ensure full connection strength, be sure the tapered
end of the plastic clutch sleeve is oriented toward the clutch when
assembled and securely tighten set screw (Figure 3).

5. Continue with Ceiling Installation that follow.

A328

Cavaletti Pendant 137670

Page 2 of 4

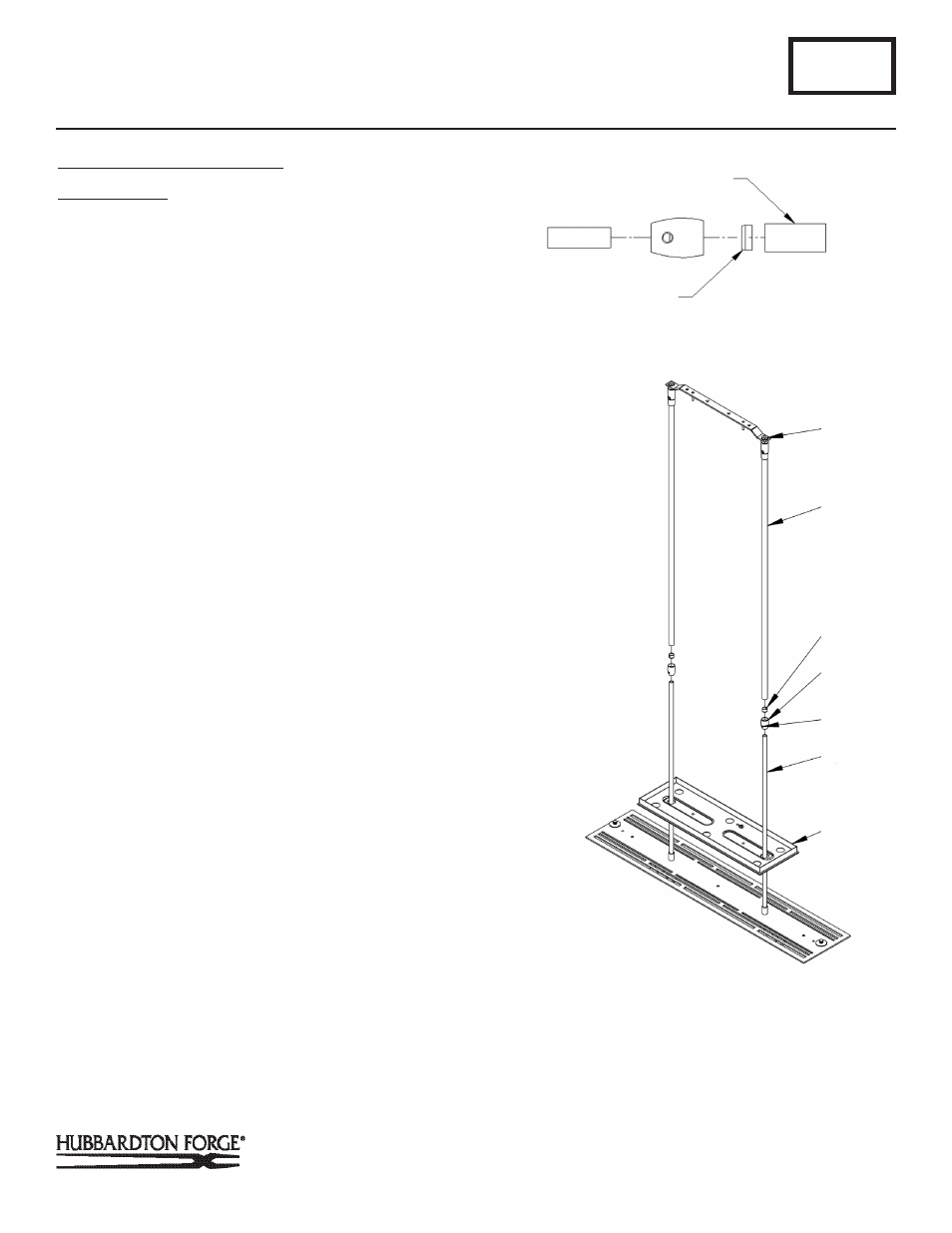

(Figure 3)

(Figure 4)

(Continued)

LARGE DIAMETER PIPE

PLASTIC CLUTCH SLEEVE

CLUTCH
