Assembly & Installation Instructions
A274
For Pendant 13-7630 Page 4 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 24824 Rev A

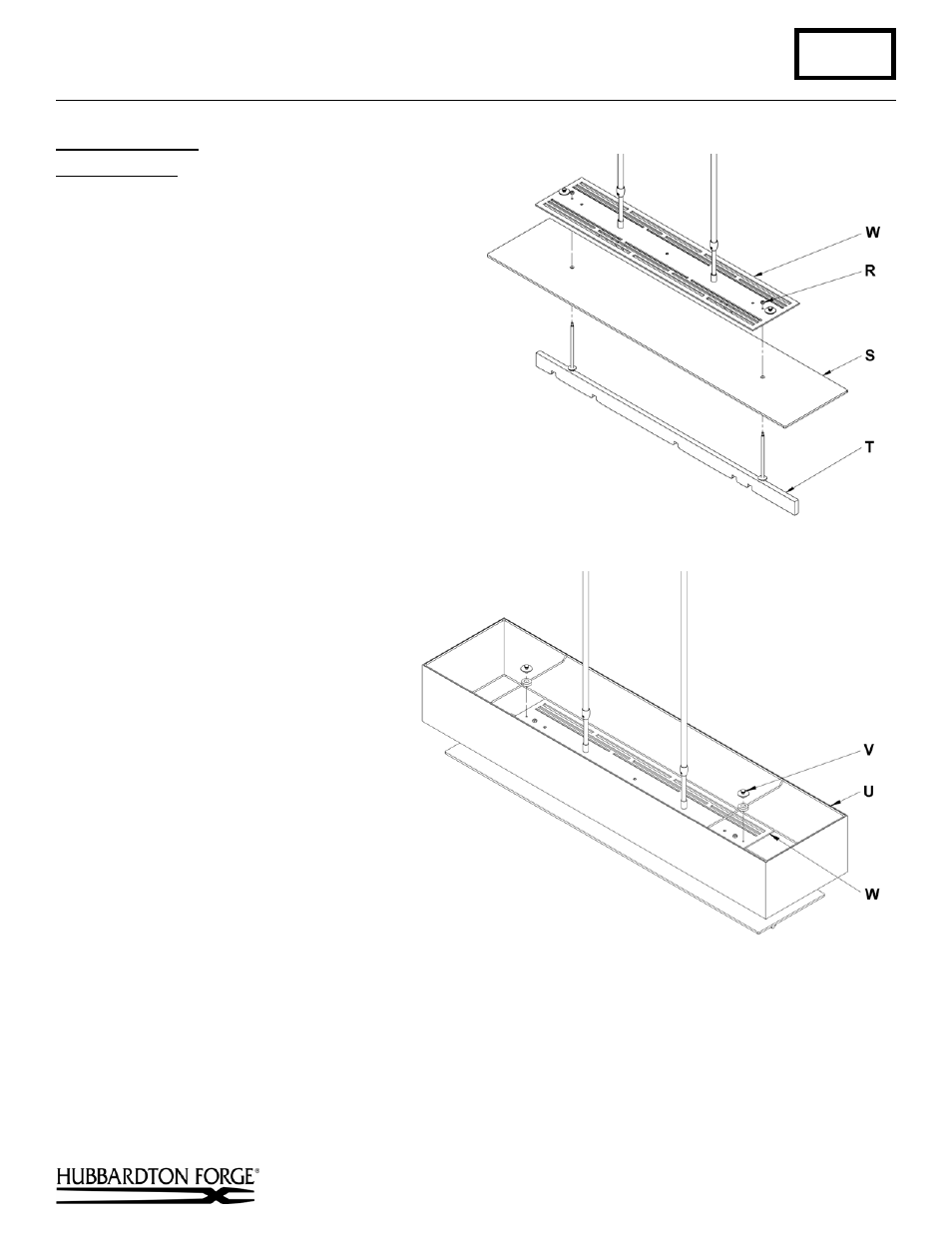

Fixture Assembly (Figures 6 & 7)
Component Parts
R Hex Nut (2)
S Diffuser
T Lower
Assembly
U Shade
V Thumb Screw with Washer and Hex Nut (2)
W Fixture
1. Slip diffuser (S) onto lower assembly (T).
2. Raise lower assembly (T) and diffuser (S) so
the threaded studs pass through the top of the
fixture (W).
3. Install two hex nuts (R) onto the threaded
studs and tighten.
4. Install bulbs. (Not Included)
See Figure 7 for remaining steps.
5. Remove thumb screw assembly (V) from top
of fixture (W). Save for later use.
Thumb screws are shipped installed.
6. Install shade (U) from the bottom and
tilt so it will pass fixture (W). It will
be necessary to raise one side of the
shade completely past the diffuser and
over towards the canopy pipes as far
as it will go to allow the other side of
the shade to pass the diffuser. Lower
the shade so it rests on top of the
fixture.
7. Secure the shade (U) with the thumb
screw assembly (V).
8. Restore electricity at main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 7)
(Figure 6)
