Assembly & Installation Instructions
A300
Facet Pendant 13-7620 Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 27150

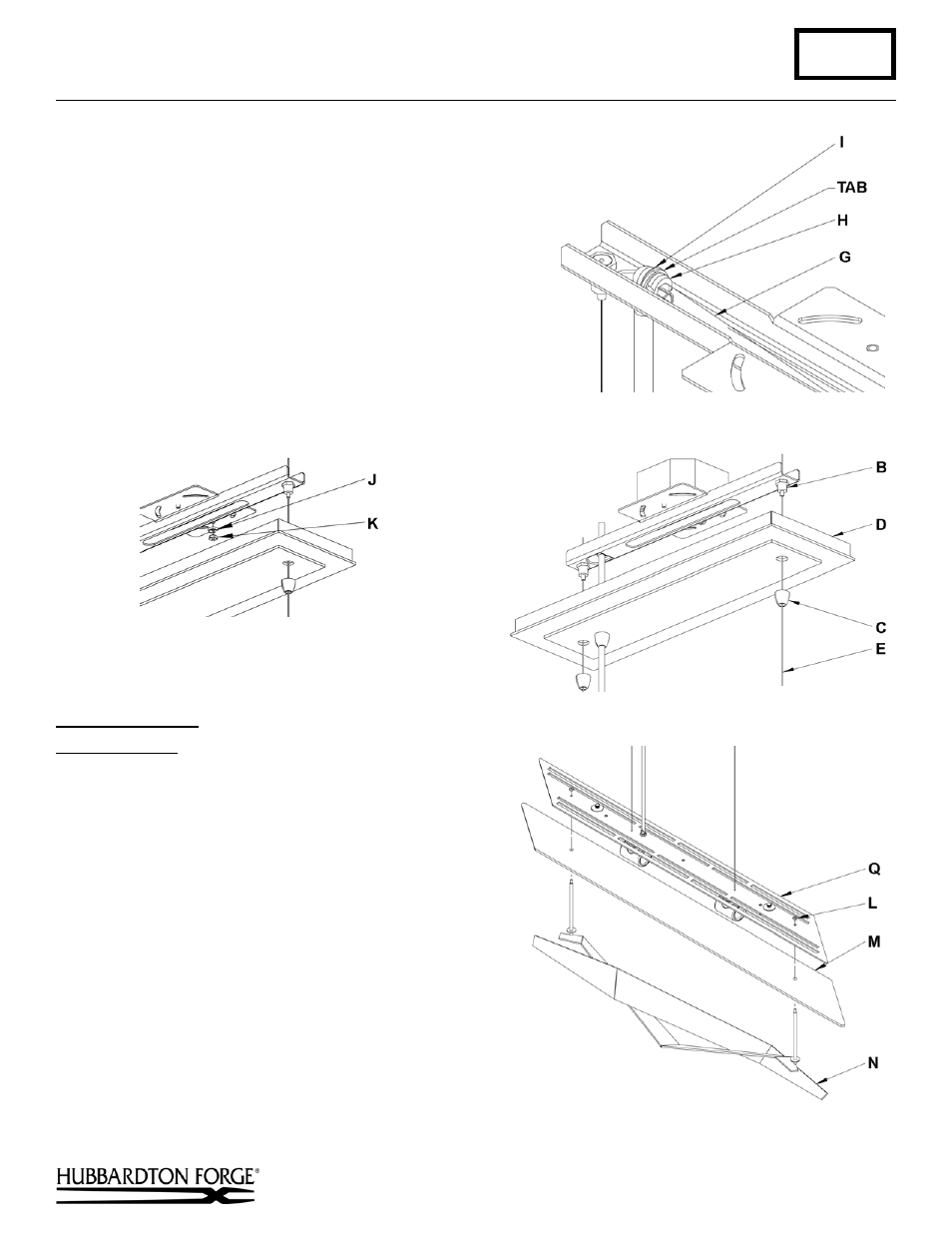

10. Run a pigtail lead from the ceiling bracket (A) using cupped
washer (J) and hex nut (K) to the junction box. Using suitable
wire connectors (not provided) connect unshielded wire from
supply wire (G) to all ground wires (bare copper or green
shielded) (Figure 4).
11. Using suitable wire connectors (not provided) connect fixture
wires to supply (wire with white tracer to white and wire with
no tracer to black).
Caution: Make sure wire connectors are
twisted on securely, and no bare wire is exposed.
12. Raise canopy (D) and push firmly to ceiling making sure that
no wires are pinched between fixture canopy and ceiling.
Fasten to ceiling by threading gripper nuts (C) onto grippers
(B) (Figure 5).
Fixture Assembly (Figures 6 & 7)
Component Parts
L Hex Nut (2)
M Diffuser
N Lower
Assembly
O Shade
P Thumb Screw with Washer and Hex Nut (2)
Q Fixture
1. Remove hex nuts (L) from lower assembly (N). Save
for later use. Hex nuts are shipped installed.
2. Slip diffuser (M) onto lower assembly (N).
3. Raise lower assembly (N) and diffuser (M) so the
threaded studs pass through the top of the fixture (Q).
4. Install two hex nuts (L) onto the threaded studs and
tighten.
(continued)
(Figure 3)
(Figure 4)
(Figure 5)
(Figure 6)
