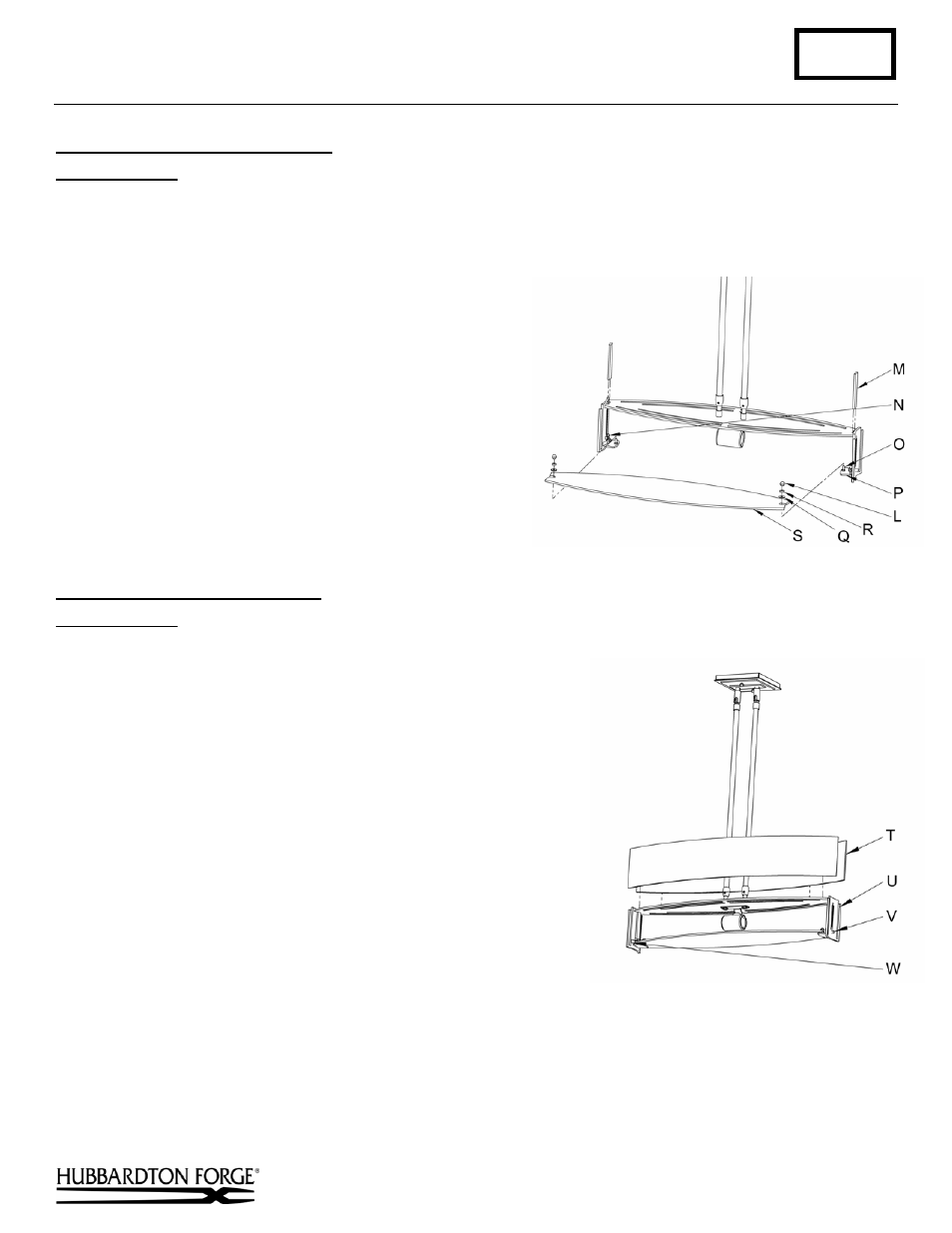

To Install Bottom & Side Diffusers (Figure 5)
Component Parts
L Knurled ball (2)
M Side
Diffuser (2)
N Diffuser Bracket (2)
O Threaded Studs (2)
P Bottom Bracket (2)
Q Bonded
Washer (2)
R Flat Washer (2)
S Bottom
Diffuser
1. Slide side diffuser (M) through rectangular holes in top of
fixture until it rests inside diffuser bracket (N). Repeat on
other side.
2. Align bottom diffuser (S) slots with threaded studs (O) and
place diffuser so it rests on bottom brackets (P).
3. Slip flat washer (R) and bonded washer (Q) over threaded
studs (O). Rubberized side of washer should contact glass.
4. Thread knurl balls (L) on to threaded studs (O) until snug
against bonded washers. Do not to over tighten.
To Install Front & Back Diffusers (Figure 6)
Component Parts
T Glass (2)
U Glass Slot (2)
V Knob
(2)
W Spring
1. Loosen knob (V) until it stops and push against end of fixture so
spring (W) is spaced away from the sides of the fixture, allowing
glass (T) to be inserted.
2. Slide glass (T) through glass slots (U) until it rests on ledge.
3. Slide glass left or right until centered.
4. Repeat for second piece of glass.
5. Tighten knob (V) until glass (T) is held firmly in position.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
