Assembly & Installation Instructions
A136
For Ellipse Pendants 13-7523 & 137523F Page 2 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 21041 Rev B

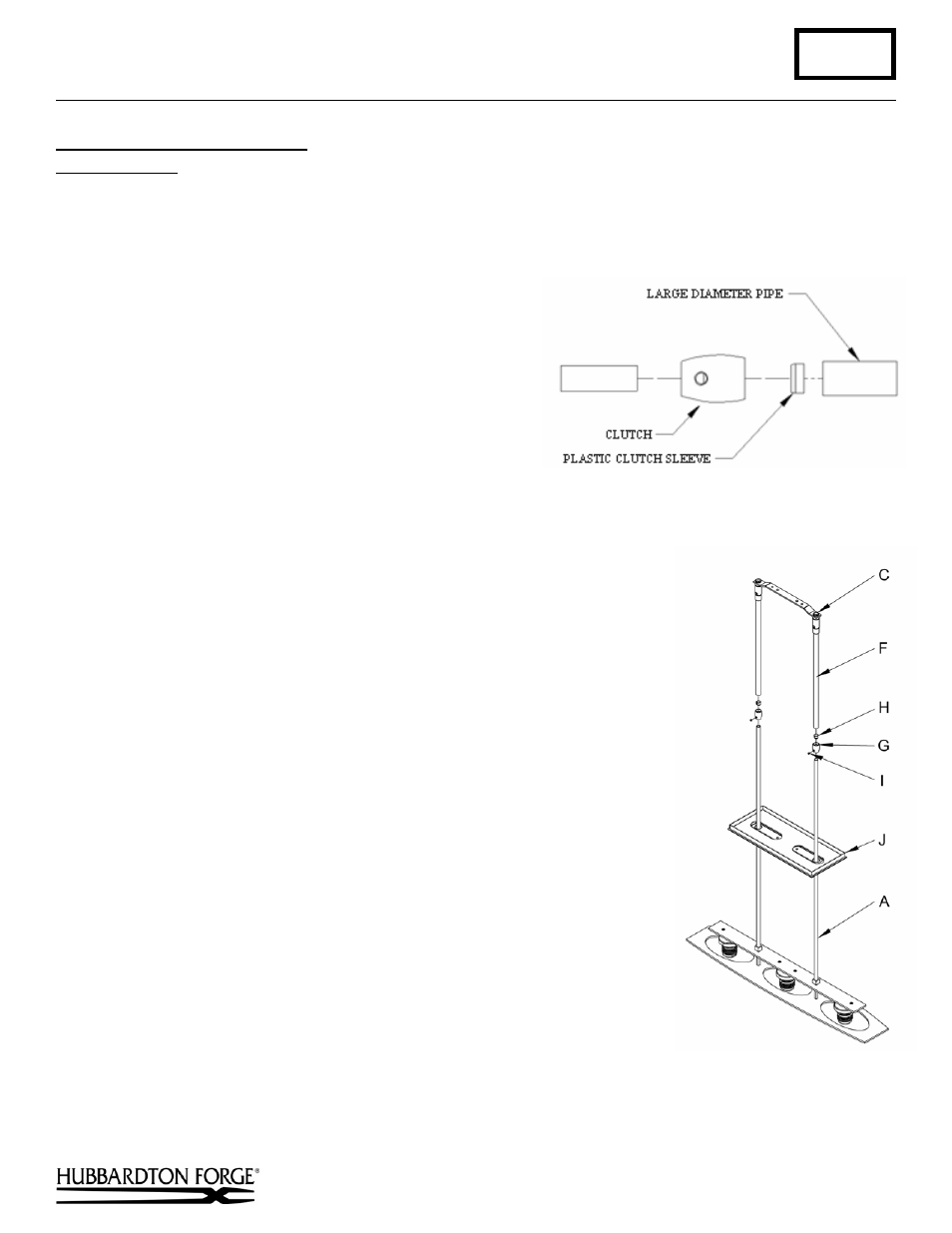

To Complete Fixture Assembly (Figures 3 & 4)
Component Parts
A Fixture Pipe (2)
C Hex
Nipple
F Canopy Pipe (2)
G Clutch
(2)
H Plastic Clutch Sleeve (2)
I
Set Screw (2)
J Canopy
Caution: Be sure power is off at the main breaker box prior
to installation.
1. Thread wires from the fixture pipe (A) through canopy (J).
Slide canopy (J) down fixture pipe (A) until it rests on top
of fixture.
2. Thread the wires from the fixture pipe (A) into and
through the canopy pipe (F) up through the hex nipple (C).
3. Unscrew the clutch (G) from the canopy pipe (F); slide it
across the wires and onto the fixture pipe (A). Follow this
with the plastic clutch sleeve (H), oriented so the tapered end
of the clutch sleeve nests in the clutch (Figure 3).
4. Slide the canopy pipe (F) as far as necessary to give you the total
length of the fixture which you desire. Be careful not to scratch
the pipe surfaces and to pull excess wire up through the canopy
pipe (F). Screw clutch (G) onto canopy pipe (F). There must be a
minimum 1-1/2" of inner pipe inside the outer pipe. Hand-tighten
the clutch to temporarily hold this adjustment. The clutch is not
securely fastened at this point; do not depend on it to hold the
fixture.
Important: To ensure full connection strength, be sure the
tapered end of the plastic clutch sleeve is oriented toward the
clutch when assembled and securely tighten set screw
(Figure 3).
5. Continue with Ceiling Installation.
(continued)
(Figure 3)
(Figure 4)
