Hubbardton Forge 136550 User Manual
A338, Assembly & installation instructions

H U B B A R D T O N F O R G E . C O M
hand-forged, vermont-made lighting and accessories
154 RT. 30 SOUTH
•
CASTLETON, VERMONT 05735
All designs and images ©1989-2013 Hubbardton Forge
®
. All rights reserved.
28322 Rev A
Assembly & Installation Instructions
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

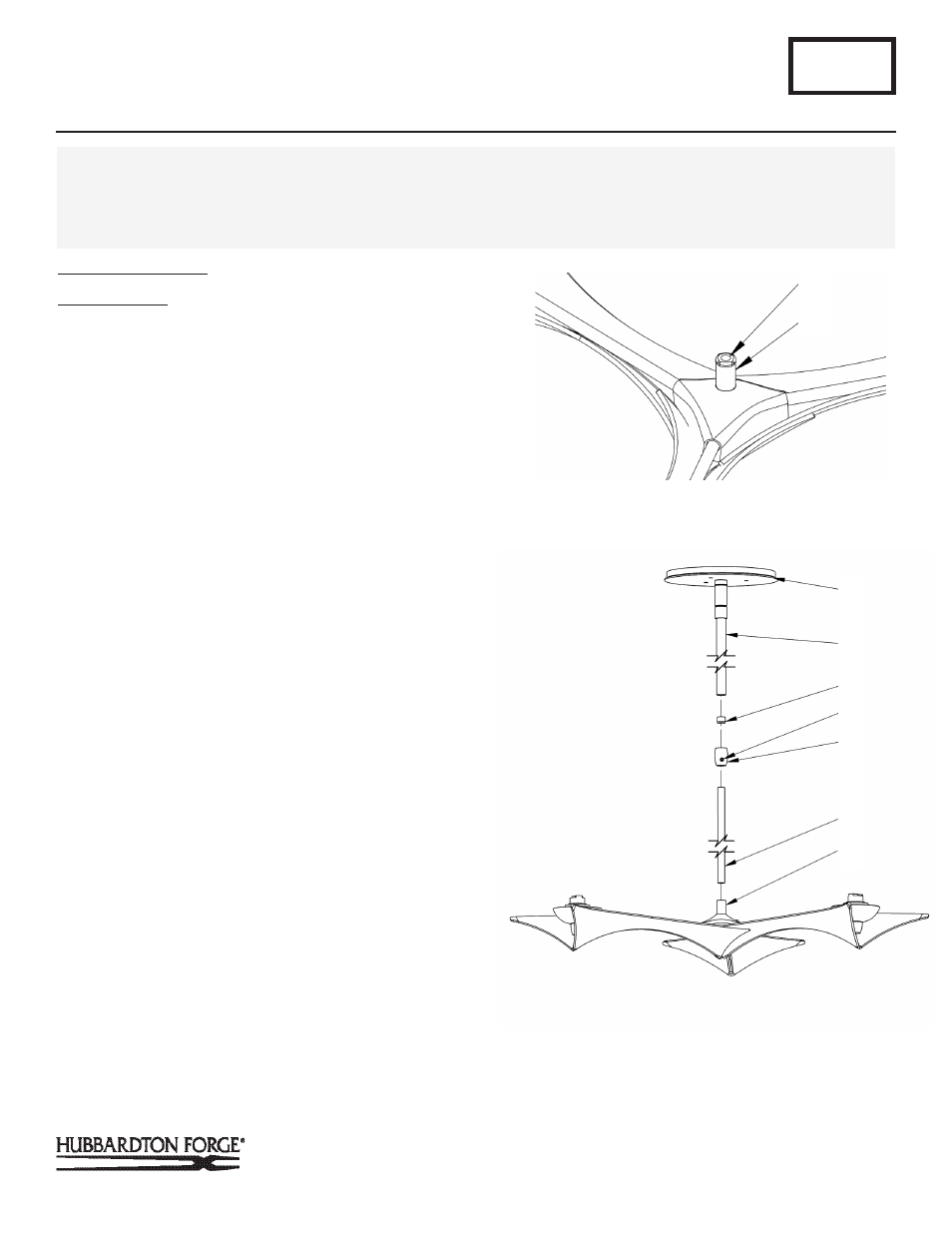

To Assemble Fixture
(Figures 1,2 & 3)
Component Parts
A Canopy
B Canopy pipe
C Clutch Sleeve
D Set Screw
E Clutch
1. Carefully unpack the fixture from the carton.
2. Unthread the wire protector (H) from the fixture coupling (G)
and slip over wires to remove and discard.
3. Carefully thread fixture pipe (F), threaded end first, over
fixture wires.
4. Apply a drop of the supplied thread locking compound to
the internal threads of the fixture coupling (G) and screw
fixture pipe (F) into fixture, being careful not to twist the
wires.
Note: Application of the thread locking compound is necessary to
prevent the stem from loosening during regular maintenance and
cleaning of the fixture. Be certain to apply the compound.
5. Slip the wires from the fixture pipe (F) into and through the
canopy pipe (B) up through the canopy (A).
6. Unscrew the clutch (E) from the canopy pipe (B); slide it
across the wires and onto the fixture pipe (F). Follow this
with the plastic clutch sleeve (C), oriented so the tapered
end of the clutch sleeve nests in the clutch (Figure 2).
7. Slide the canopy pipe (B) over fixture pipe (F) as far as
necessary to give you the total length of the fixture which
you desire. Be careful not to scratch the pipe surfaces
and to pull excess wire up through the canopy pipe (B).
Screw clutch (E) onto canopy pipe (B). There must be a
minimum 1-1/2" of inner pipe inside the outer pipe. Hand-
tighten the clutch to temporarily hold this adjustment. The
clutch is not securely fastened at this point; do not depend
on it to hold the fixture.
A338
Moreau Three Light Pendant 136550
Page 1 of 3
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Continued)
F Fixture pipe
G Fixture coupling
H Wire Protector
(Figure 1)
(Figure 2)
H
G
C
G
A
B
E
D
F
