Assembly & Installation Instructions

A314

Corona Adjustable Pendant 13-6500

Page 2 of 3

Hand-Forged,

Vermont-Made Lighting and Accessories

154 Route 30 South, Castleton, Vermont 05735

27635


Complete Assembly & Install Fixture

(Figures 3 & 4)

Component Parts

A Fixture Pipe

G

Canopy Ring

C Crossbar

H Plastic

Sleeve

D Jam Nut

I

Clutch

E Threaded Nipple

J

Set Screw

F Canopy

Caution: Be sure power is off at the main breaker box prior to
installation.

1. Place canopy (F) over canopy pipe, followed by canopy ring (G).

Make sure smaller diameter side of canopy ring is oriented up toward the canopy.

2. Unscrew the clutch (I) from the canopy pipe; slide it across the wires and

onto the fixture pipe (A). Follow this with the plastic clutch sleeve (H),
oriented so the tapered end of the clutch sleeve nests in the clutch. (Figure
3).

3. Slide the canopy pipe as far as necessary to give you the total length of the

fixture which you desire. Be careful not to scratch the pipe surfaces and to
pull excess wire up through the canopy pipe. There must be a minimum 1-
1/2" of inner pipe inside the outer pipe. Hand-tighten the clutch to
temporarily hold this adjustment. The clutch is not securely fastened at this
point; do not depend on it to hold the fixture.

Important: To ensure full

connection strength, be sure the tapered end of the plastic clutch sleeve
(H) is oriented toward the clutch (I) when assembled and securely tighten
set screw (J) (Figure 3).

4. Carefully slide canopy ring (G) and canopy (F) down over fixture pipe (A)

until they rest on the fixture.

5. Using two machine screws (not provided), fasten the crossbar to the

electric box.

Note: A new electric box comes with screws. When replacing

a fixture, retain the existing screws for use with the new fixture.

6. Using suitable wire connectors (not provided), connect fixture wires to

supply wires (white to white supply, black to black supply, and bare
copper to bare copper or green supply). Run a pigtail lead from crossbar
(C) green ground screw to the junction box and connect all ground wires
(bare copper or green to bare copper or green). Push wires back into outlet
box.

Caution: Make sure wire connectors are twisted on securely, and no

bare wire is exposed.

7. Slide fixture canopy (F) against ceiling, and secure with canopy ring (G).

Once the fixture is fastened to the ceiling, tighten the set screw (J) on the
clutch (I) firmly with hex wrench provided. Only after the set screw is tight
should you install the glass.





(continued)

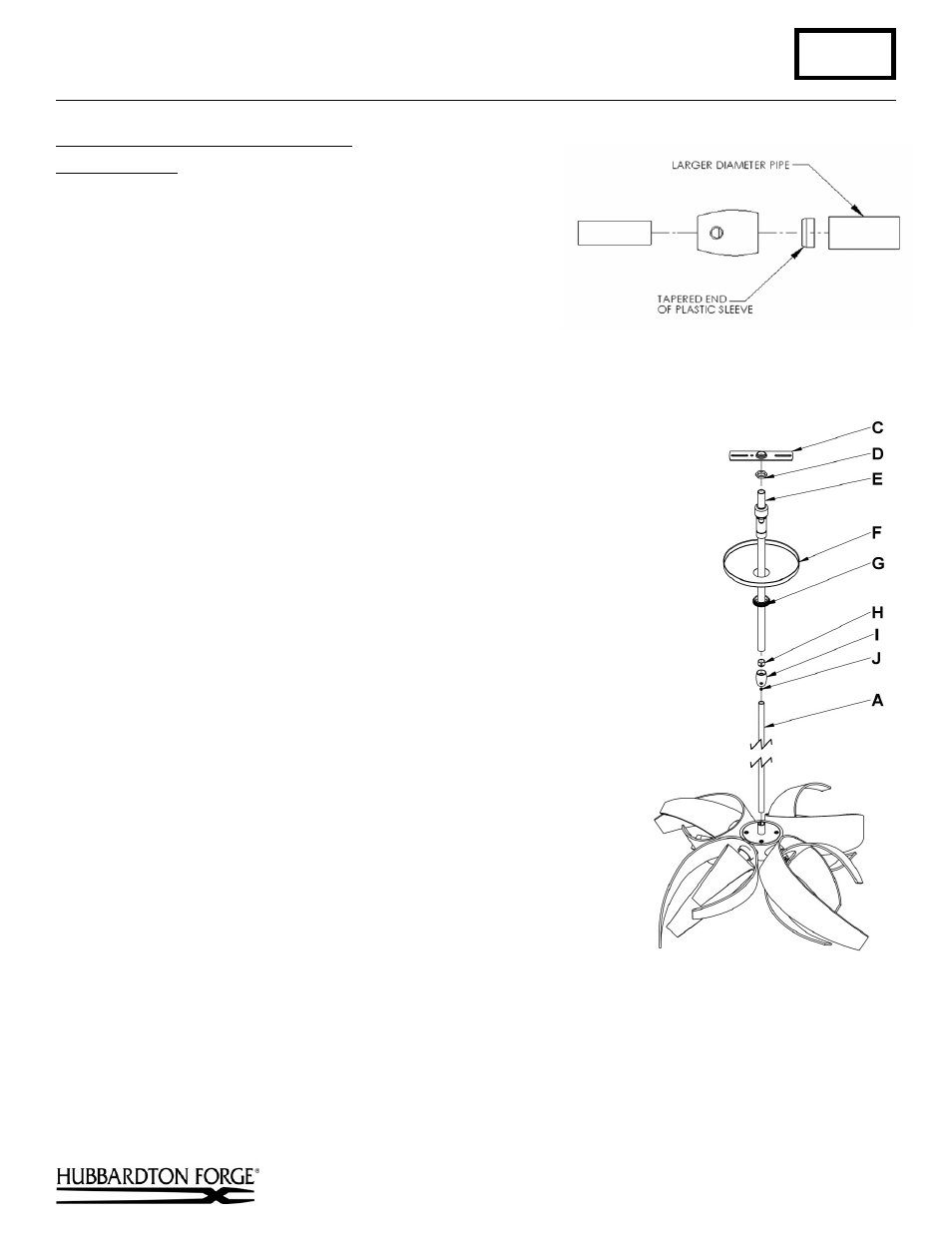

(Figure 3)

(Figure 4)
