Assembly & Installation Instructions
A314
Corona Adjustable Pendant 13-6500 Page 1 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 27635

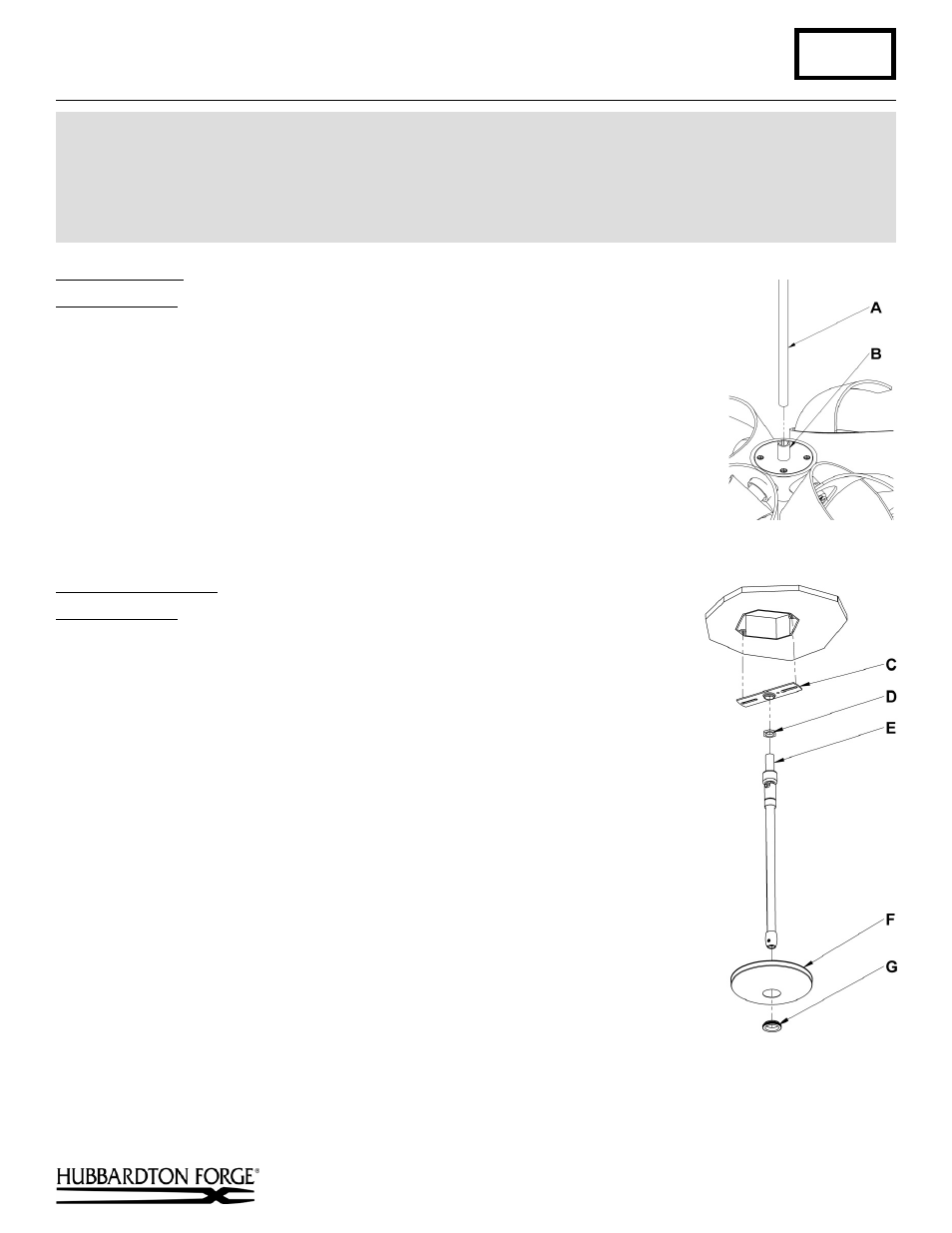

Stem Assembly (Figure 1)
Component Parts
A Fixture Pipe
B Fixture Coupling
1. Carefully unpack the fixture from the carton.
2. Carefully thread fixture pipe (A), threaded end first, over fixture wires and support cable.
3. Apply a drop of the supplied thread locking compound to the internal threads of fixture
coupling (B) and screw stem into fixture, being careful not to twist or pinch the wires.
Note: Application of the thread locking compound is necessary to prevent the stem from
loosening during regular maintenance and cleaning of the fixture. Be certain to apply the
compound.
4. See instructions below to complete the installation.
Prepare the Canopy (Figure 2)
Component Parts
C Crossbar
D Jam
Nut
E Threaded Nipple
F Canopy
G Canopy
Ring
Caution: Be sure power is off at the main breaker box prior to installation.
1. Thread the jam nut (D) and crossbar (C) onto threaded nipple (E); leave both parts
loose.
2. Using two machine screws (not provided), temporarily fasten the crossbar (C) to the
electric box. Note: A new electric box comes with screws. When replacing a fixture,
retain the existing screws for use with the new fixture.
3. Adjust the length of threaded nipple (E) in crossbar (C) so that canopy ring (G) will
hold canopy (F) against the ceiling with no threads showing for best appearance.
When the correct adjustment is established, tighten jam nut (D) against crossbar (C)
to hold the adjustment.
4. Remove the crossbar and stem from the electrical box and proceed with the assembly
instructions.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 2)
(Figure 1)
