Installation Instructions
A243
For Axis Pendants 13-6405 & 13-6405F Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 24571

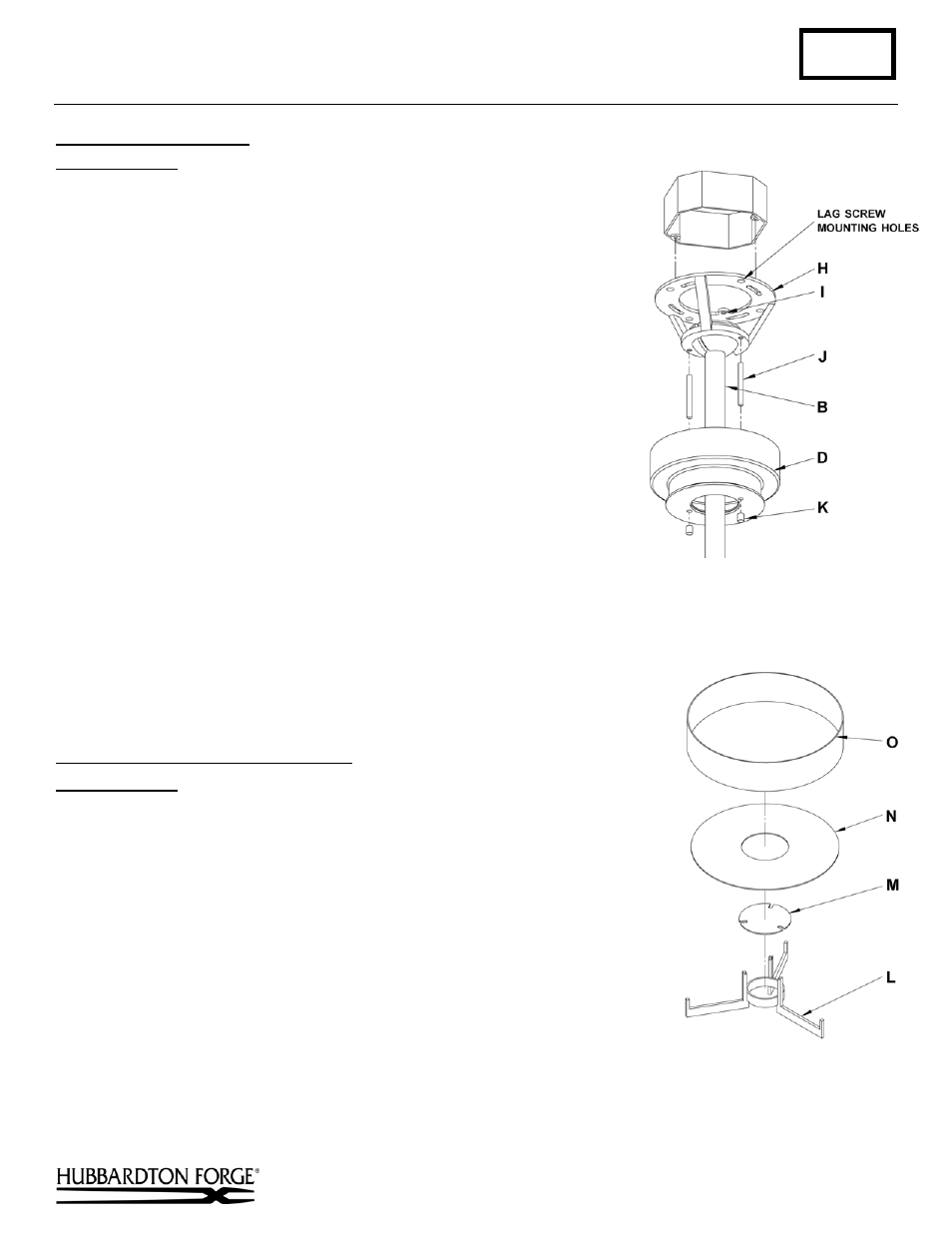

Install Fixture to Ceiling (Figure 3)
Component Parts
B Canopy Pipe Assembly
D Canopy
H Crossbar
I Ground
Screw
J Threaded Studs (2)
K Barrel Knobs (2)
1. Using two machine screws (not provided), fasten the crossbar (H) to the
electric box using oval slots to orient fixture to desired hanging
position. We've supplied lag screws with your fixture; however,
different materials and/or construction methods may require different
fasteners. If in doubt, contact a qualified electrician.
Note: A new electric box comes with screws. When replacing a fixture,
retain the existing screws for use with the new fixture.
2. Thread studs (J) through appropriate holes in the crossbar (H) to match
hole centers on canopy (D).
3. Using suitable wire connectors (not provided) connect fixture wires to
supply (white to white or ribbed and black to black or smooth).
4. Lift canopy (D) and connect all ground wires to green ground
screw (I).
5. Slide canopy (D) over threaded studs (J) and push firmly to ceiling,
making sure that no wires are pinched between fixture canopy and
ceiling. Fasten with barrel knobs (K). Be sure studs are fully seated in the
barrel knobs.
6. Refer instructions following to install bulb and glass.
To Install Glass in Bottom Assembly (Figure 4)
Component Parts
L Lower Assembly
M Center Diffuser
N Bottom Diffuser
O Outer Acrylic Ring
1. Install bottom diffuser (N) and outer acrylic ring (O) into lower
assembly (L).
2. Install center diffuser (M) so it sits in the center of the lower
assembly (L).
(continued)
(Figure 3)
(Figure 4)
