Assembly & Installation Instructions
A206
Ondrian Pendant 13-6305 & 13-6305F Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 22763 Rev B
8. Slide canopy (D) over threaded studs (C) and push firmly to ceiling, making sure that no wires are pinched between
fixture canopy and ceiling. Fasten with barrel knobs (E). Be sure studs are fully seated in the barrel knobs.
9. Once the fixture is fastened to the ceiling, tighten the set screw (I) in clutch (H) firmly with hex wrench provided.
Only after the set screw (I) is tight should you install the lower assembly.
10. Refer instructions below and install glass/shade for option that was purchased.

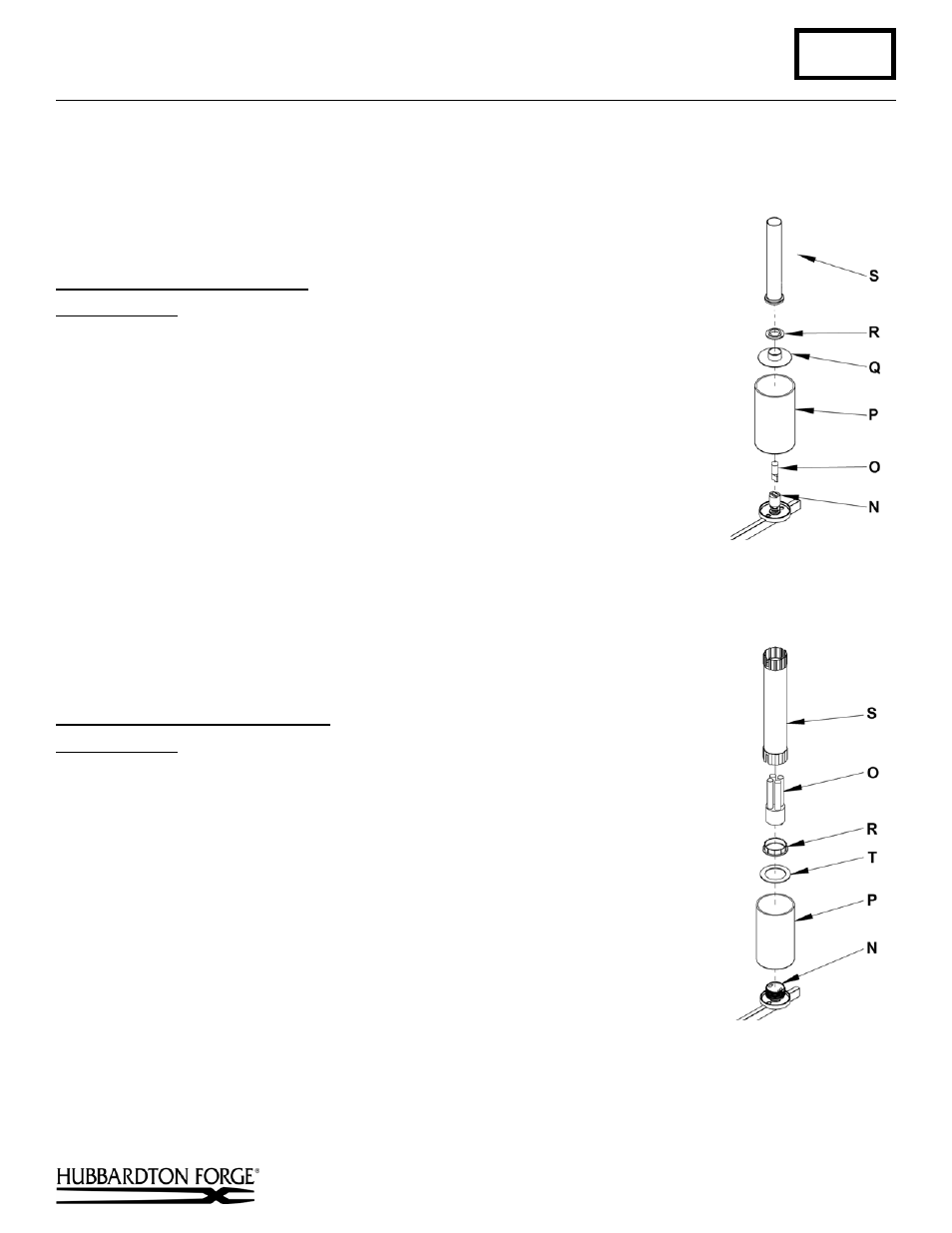

To Install Glass with G9 Option
(Figure 3)
Component Parts
N Socket (6)
O Bulb (Included) (6)
P Glass
(6)
Q Spacer (6)
R Retaining Ring (6)
S Socket
Tool
1. Remove retaining ring (R) and spacer (Q) from socket (N). Retaining Rings and
spacers are shipped installed.
2. Install light bulb (O). Be careful not to touch bulb with bare hands; oil from the
hands will dramatically reduce bulb life.
3. Slip glass (P) over socket (N).
4. Slip spacer (Q) over socket (N) so it rests on glass (P).
5. Thread retaining ring (R) onto socket (N) using provided socket tool (S). Be careful
not to over tighten.
6. Restore electricity at main breaker.
To Install Glass with GU24 Option (Figure 4)
Component Parts
N Socket (6)
O Bulb (Included) (6)
P Glass
(6)
R Retaining Ring (6)
S Socket
Tool
T Washer
1. Remove retaining ring (R) from socket (N). Retaining Rings are shipped installed.
2. Slip glass (P) over socket (N).
3. Slip washer (T) onto socket (N) so it rests on the bottom of glass (P).
4. Thread retaining ring (R) onto socket (N) using provided socket tool (S) provided
until it rests on the washer (T). Do not over tighten.
5. Install light bulb (O).
6. Restore electricity at main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
