Assembly & Installation Instructions
A206
Ondrian Pendant 13-6305 & 13-6305F
Page 1 of 2
Hand-Forged,
Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735
22763 Rev B
To Complete Assembly

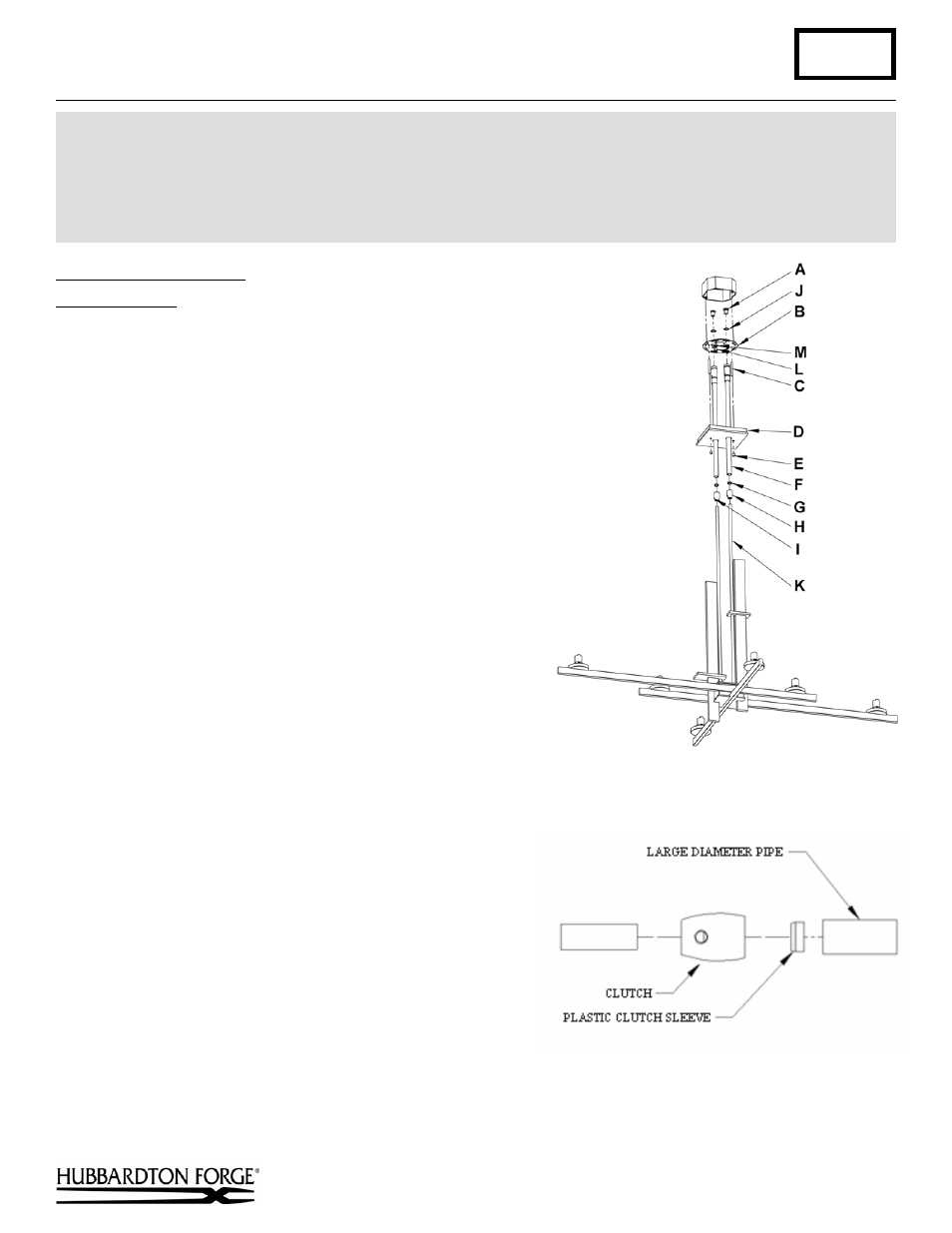

(Figures 1 & 2)
Component Parts
A Hex Head Nipple (2)
B Crossbar
C Threaded Stud (2)
D Canopy
E Barrel Knobs (2)
F Canopy Pipe (2)
G Plastic Clutch Sleeve (2)
H Clutch
(2)
I
Set Screw (2)
J Lock
Washer
(2)
K Fixture Pipe (2)
L Ground
Screw
M Cupped
Washer
Caution: Be sure power is off at the main breaker box prior to
installation.
1. Unscrew the clutch (H) from the canopy pipe (F); slide it
across the wires and onto the fixture pipe (K). Follow this with
the plastic clutch sleeve (G), oriented so the tapered end of the
clutch sleeve nests in the clutch.
2. Slide the canopy pipes (F) as far as necessary to give you the
total length of the fixture which you desire. Be careful not to
scratch the pipe surfaces and to pull excess wire up through
the canopy pipe (F). Screw clutch (H) onto canopy pipe (F).
There must be a minimum 1-1/2" of inner pipe inside the outer
pipe. Hand-tighten the clutch to temporarily hold this
adjustment. The clutch is not securely fastened at this point;
do not depend on it to hold the fixture.
Important: To ensure
full connection strength, be sure the tapered end of the plastic
clutch sleeve is oriented toward the clutch when assembled and
securely tighten set screw (Figure 2).
3. Slide canopy (D) over canopy pipes (F) being careful not to scratch
finish. Slide down until the canopy rests against
clutch (H).
4. Thread studs (C) through appropriate holes in crossbar (B)
to match holes in canopy (D).
5. Attach crossbar (B) to both canopy pipes (F) using hex
head nipple (A) and lock washer (J).
6. Using two machine screws (not provided), fasten the
crossbar (B) to the electric box.
Note: A new electric box
comes with screws. When replacing a fixture, retain the
existing screws for use with the new fixture.
7. Using suitable wire connectors (not provided) connect
fixture wires to supply (white to white and black to black).
Connect all ground wires to green ground screw (L) and
cupped washer (M).
Caution: Make sure wire connectors are
twisted on securely, and no bare wire is exposed.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 2)
(Figure 1)
