Hubbardton Forge 134915 User Manual
A263, Assembly & installation instructions

Assembly & Installation Instructions
A263
Staccato Pendants 13-4910 & 13-4915
Page 1 of 4
Hand-Forged,
Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
21041 Rev A
Attach Fixture Pipes
(Figure 1)
Component Parts
A Fixture Pipe (2)
B Fixture Coupling (2)
1. Carefully unpack the fixture from the carton.
2. Carefully thread fixture pipes (A), threaded end
first, over fixture wires.
3. Apply a drop of the supplied thread locking
compound to the internal threads of the fixture
couplings (B) and screw fixture pipes (A) into
fixture, being careful not to twist the wires.
Note: Application of the thread locking compound
is necessary to prevent the stem from loosening
during regular maintenance and cleaning of the
fixture. Be certain to apply the compound.
4. See instructions below to complete the installation.
Assemble Canopy Pipes to Ceiling Bracket
(Figure 2)
Component Parts
C Hex Nipple (2)
D Lock
Washer
(2)
E Ceiling
Bracket
F Canopy Pipes (2)
1. Insert threaded end of hex nipple (C) down through
lock washer (D), ceiling bracket (E) and into swivel at
the end of canopy pipe (F). Note: Ceiling bracket
should be oriented with the threaded studs point down.
2. Tighten securely being sure the notches in the swivels
are aligned.
Note: If installing on a sloped ceiling, make certain that
the notches in the swivel portion of the stems are
oriented toward the lower side of the slope.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

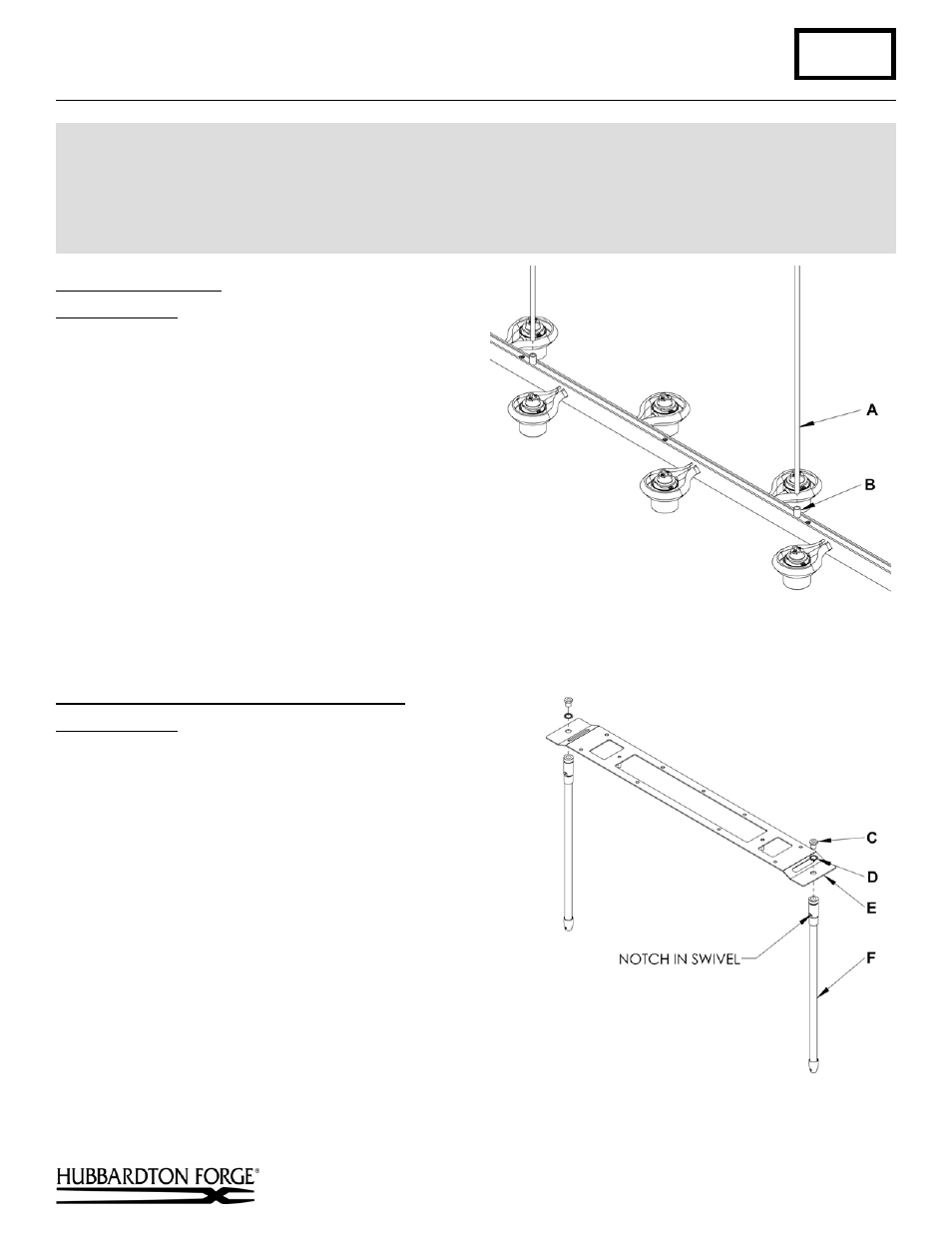

(Figure 1)
(Figure 1)
Illustration may not match every style.
(Figure 2)
