9. Check fixtures for height.
10. Using suitable wire connectors (not provided) connect fixture wires to supply (white to white and black to black). Run a
pigtail lead from crossbar ground screw (P) to the junction box and connect all ground wires (bare copper or green to bare
copper or green). Caution: Make sure wire connectors are twisted on securely, and no bare wire is exposed.
11. Thread canopy nipple (S) in to threaded hole directly in center of canopy (C).
12. Install canopy cover (K) on canopy nipple (S).
13. Thread lock up (L) on to canopy nipple (S). Tighten against
canopy cover (K) until snug.

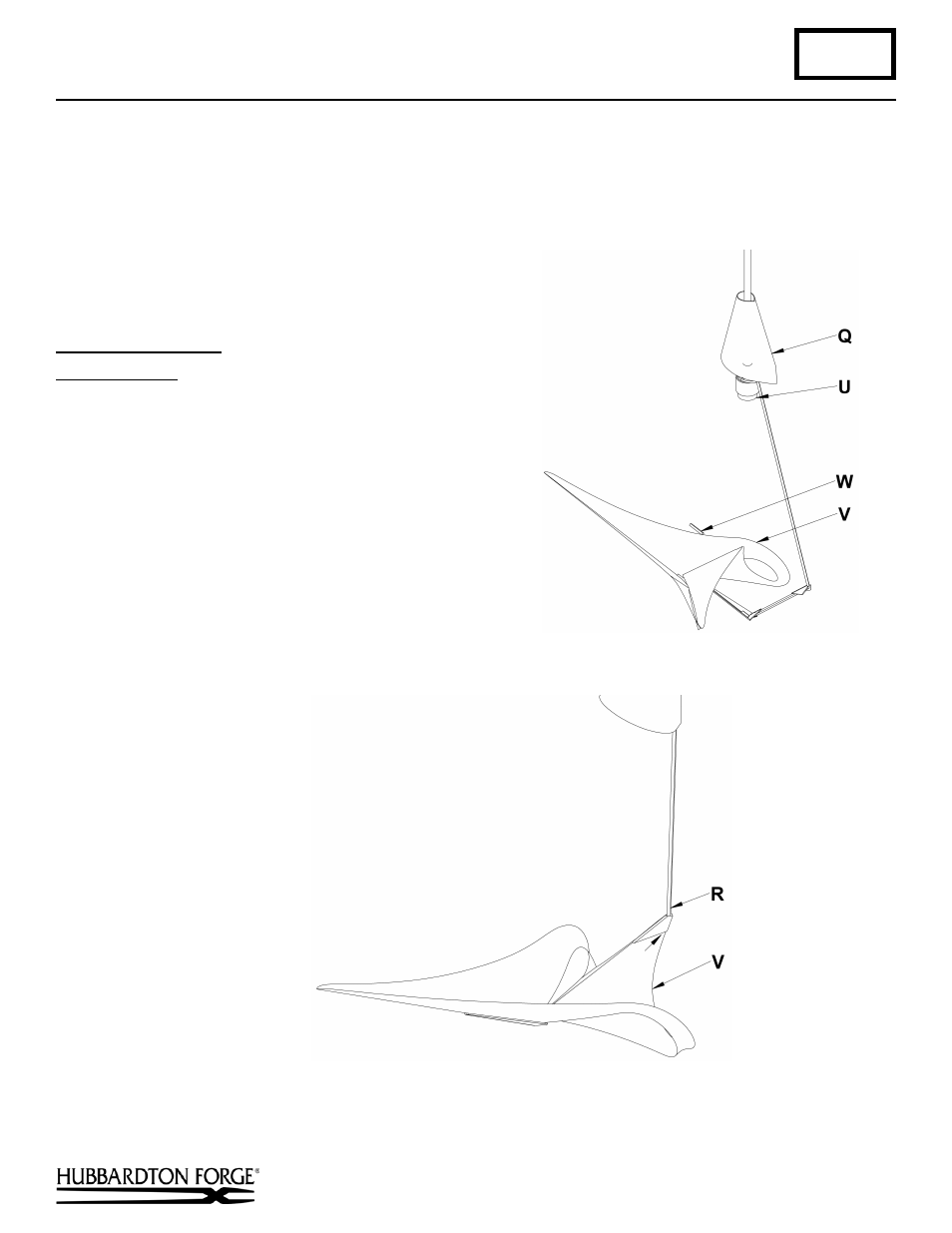

Install Bulb & Shade (Figures 5 & 6)
Component Parts
Q Bulb Shade
R Fixture Frame
U Socket
V Shade
W Magnet
1. Lift bulb shade (Q) to access socket (U) and install bulb (not
included).
2. Fold shade (V) as shown in Figure 7 on next page.
3. Slip shade (V) into back part of the frame and lower until it
rests in the lower area. See Figure 6
4. Install Magnet (W) so it rests inside shade (V).
5. Restore electricity at the main breaker.
(continued)
(Figure 6)
(Figure 5)
