Assembly & Installation Instructions
A309
Icarus Triple Canopy Pendant 13-3360 Page 2 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 27236A

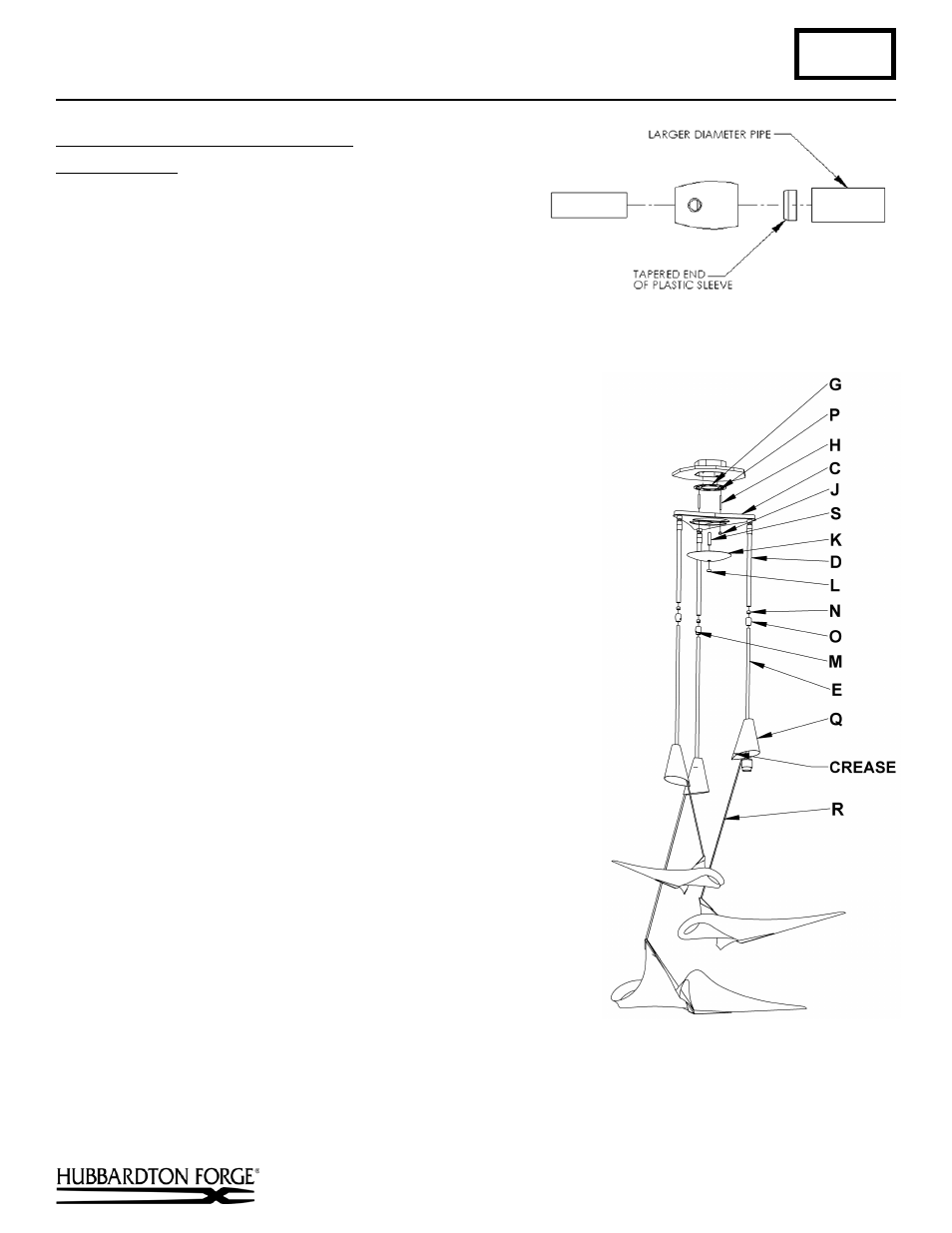

(Figure 4)
Complete Assembly & Install Fixture (Figures 3 & 4)
Component Parts
C Canopy
D Canopy Pipe (3)
E Fixture Pipe (3)
G Crossbar
H Threaded Studs (2)
J
Knurl Ball (2)
K Canopy Cover
L
Lock Up
M Set Screw (3)
N Clutch Sleeve (3)
O Clutch (3)
P Ground Screw
Q Bulb Shade (3)
R Fixture Frame (3)
S Canopy Nipple
Caution: Be sure power is off at the main breaker box prior to
installation.
1. Slip bulb shade (Q) on fixture pipe (E) and orient so the crease slips onto the
bar of the fixture frame (R).
2. Thread the wires from the fixture pipe (E) into and through the canopy pipe
(D) up through the canopy (I).
3. Unscrew the clutch (O) from the canopy pipe (D) slide it across the wires
and onto the fixture pipe (E). Follow this with the clutch sleeve (N), so it
nests in the clutch (O).
4. Slide the fixture pipe (E) up into canopy pipe (D) as far necessary to give
you the total length of the fixture which you desire. Be careful not to scratch
the pipe surfaces and to pull excess wire up through the canopy (C). There
must be a minimum 1-1/2" of inner pipe inside the outer pipe. Hand-
tighten the clutch to temporarily hold this adjustment. At this point the
adjustment is not securely fastened; do not depend on it to hold the
fixture.
Important: To ensure full connection strength, be sure the tapered end
of the plastic clutch sleeve is oriented toward the clutch when assembled
and securely tighten set screw
(Figure 3).
5. Repeat steps 1 thru 4 for all fixtures.
6. Thread studs (H) through appropriate holes in the crossbar (G) to match hole
centers in canopy (C).
7. Using two machine screws (not provided), fasten the crossbar (G) to the
electric box using outer oval slots to orient fixture to desired hanging
position.
Note: A new electric box comes with screws. When replacing a
fixture, retain the existing screws for use with the new fixture.
8. Slide fixture canopy (C) with fixture attached, over threaded studs (H) and push
firmly to ceiling making sure no wires are pinched between fixture canopy and
ceiling. Fasten with knurled balls (J). Be sure studs (H) are fully seated in knurled
balls (J).
(continued)
(Figure 3)
