Assembly & Installation Instructions
A248
Kirigami Four-Light Pendant 13-3305 Page 3 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 24618 Rev A
To Assemble Bottom
(Figures 4, 5 & 6)
Component Parts
L Hex Nut
M Diffuser Top Plate
N Nipple
O Bottom
Assembly
P Shade
Q Threaded Knob (4)
R Threaded Stud (4)
S Diffuser
T Alignment
Pin
U Spring
V Flat Head Screw (4)
1. Remove hex nut (L) (Figure 4). Save for later use.
2. Slip diffuser top plate (M) with flat head screws (V)
installed off bottom assembly (O) (Figure 4). Save
for later use.
3. Install shade (P) into bottom assembly by
slipping the holes in the shade over the
threaded studs (R) (Figure 5).
Note: Be
careful when installing shades not to allow the
shade to come in contact with the four
threaded studs. Contact with the studs will
damage the shade and cause visible
scratches.
4. Install knobs (Q) to keep shade (P) in place
(Figure 5).
See Figure 6 (next page) for the remaining steps
unless another figure is referenced.
5. Slip diffuser (S) onto nipple (N) aligning the
alignment hole in the diffuser with the
alignment pin (T).
6. Thread the three flat head screws (V) installed
in the diffuser plate (M) so they protrude
slightly out the bottom of the plate.
7. Align the diffuser top plate (M) so the three
flat head screws (V) align with the three holes
in the diffuser (S) and slip onto the nipple (N)
until it rests on top of the diffuser.
8. Thread hex nut (L) onto nipple (N) until it sits
on top of the diffuser top plate (M). Tighten
the hex nut being careful not to over tighten.
9. Thread the three flat head screws (V) until
they are snug.
10. Slip the spring (U) onto the nipple.
11. Refer to instructions following to complete installation.
(continued)

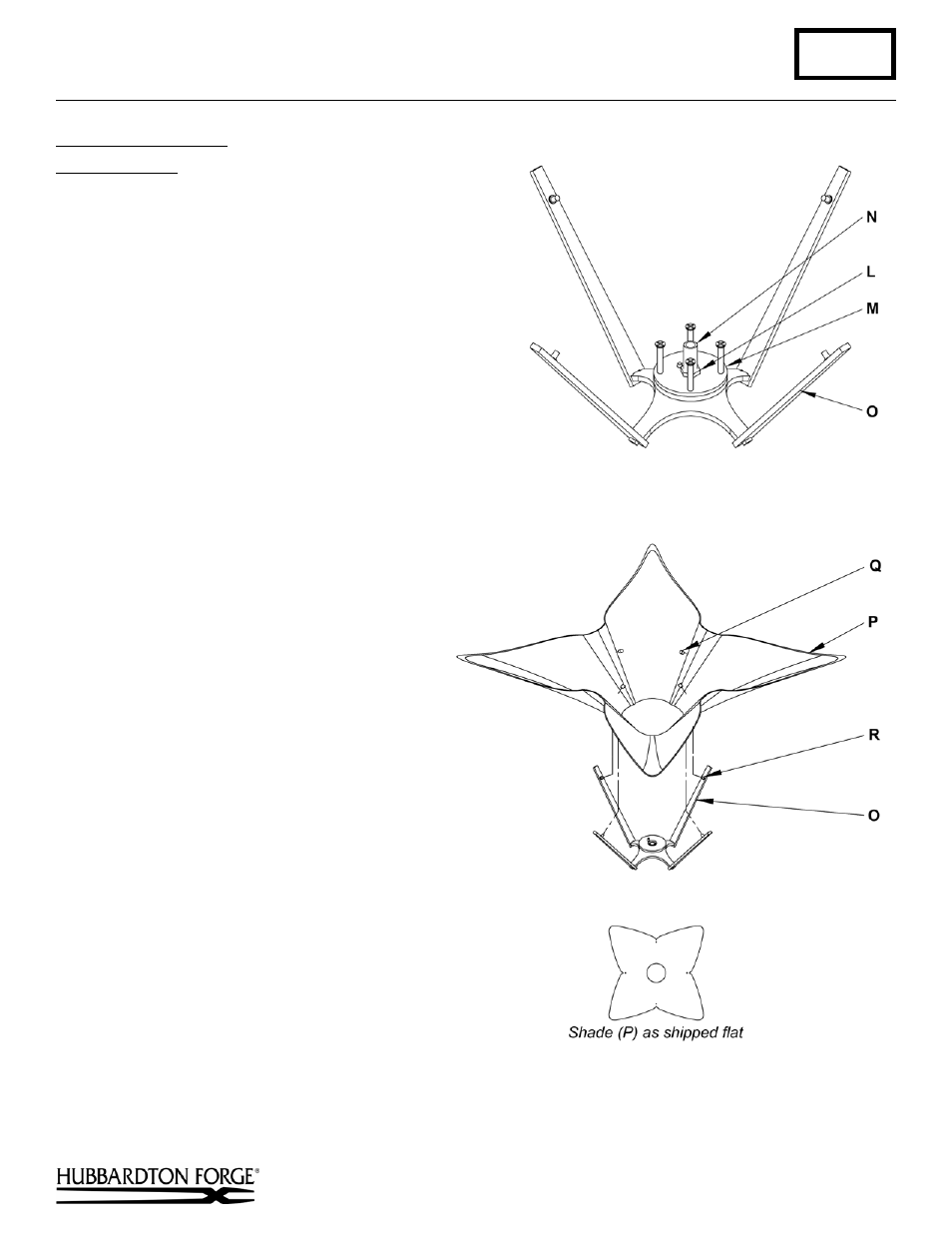

(Figure 4)
