Assembly & Installation Instructions
A166
For Vortis Pendant 13-3255 Page 3 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 21319 Rev B

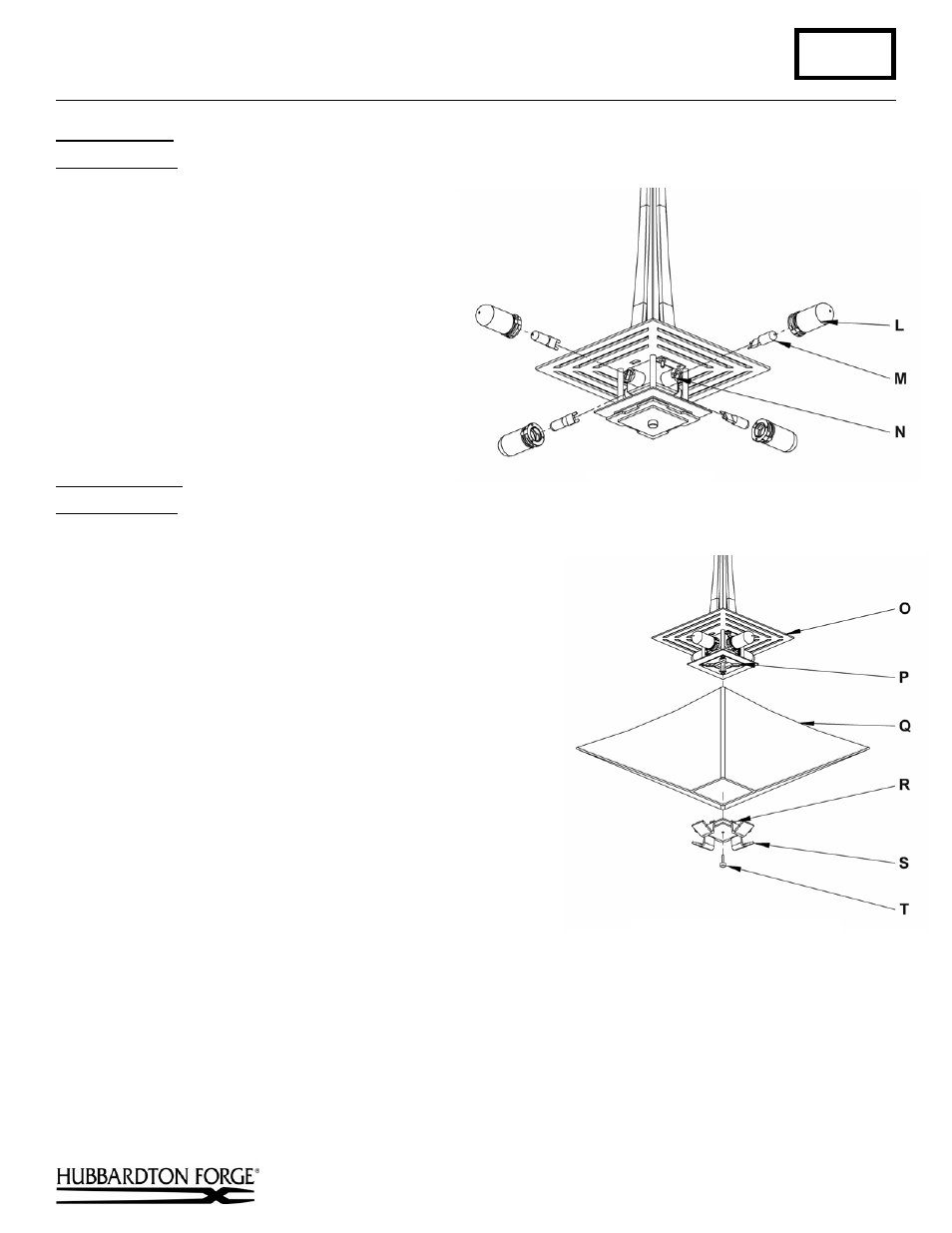

To Install Bulb
(Figure 4)
Component Parts
L Bulb Shield
M Bulb
N Socket
1. Install light bulb (M). Be careful not to
touch bulb with bare hands; oil from the
hands will dramatically reduce bulb life.
2. Thread bulb shield (L) onto socket (N) (be
careful not to over tighten). Future bulb
changes may be accomplished by snapping
glass portion of shield on and off rather than
unthreading the holder.
To Install Glass (Figure 5)
Component Parts
O Fixture Assembly
P Fixture slot
Q Glass
R Retainer
Tab
S Glass Retainer
T Tensioning Screw
1. Remove glass retainer (S) from bottom of fixture by
removing tensioning screw (T) and turning the glass
retainer 45 degrees to allow it to drop out of the bottom of
the fixture.
2. Place glass (Q) into glass retainer (S).
3. Lift glass (Q) and glass retainer (S) up to fixture assembly
(O) aligning retainer tabs (R) with fixture slots (P).
4. Lift so retainer tab (R) slips completely through fixture
slot (P).
5. Turn glass (Q) and glass retainer (S) approximately 45
degrees so glass retainer stays in place.
6. Turn tensioning screw (T) to secure glass retainer (S) to
fixture assembly (O). Turn until snug and glass retainer will not spin
freely.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
