If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

H U B B A R D T O N F O R G E . C O M

hand-forged, vermont-made lighting and accessories

154 RT. 30 SOUTH

•

CASTLETON, VERMONT 05735

30264

Installation Instructions

To Install the Canopy

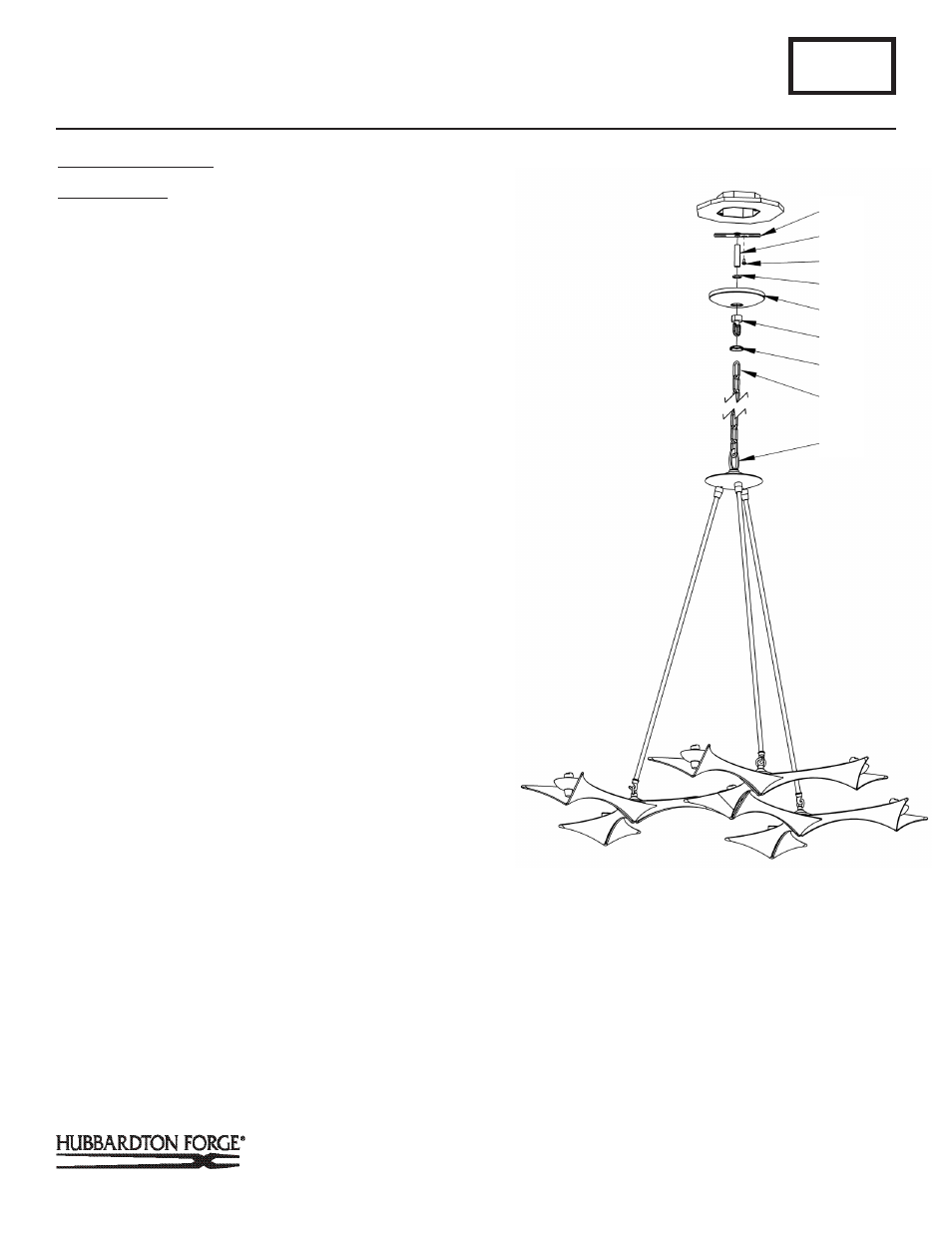

(Figure 3)

Component Parts

G Crossbar

H Nipple

I Ground Screw

J Lock Nut

K Canopy

CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX
PRIOR TO INSTALLATION.

1. Using two machine screws (not provided), fasten the cross-

bar (G) to the electric box (see illustration).

Note: A new electric box comes with screws. When replacing a

fixture, retain the existing screws for use with the new fixture.

2. Thread the nipple (H) into the crossbar (G) and secure with

lock nut (J); slide canopy (K) over nipple (H), and attach the

canopy loop (L) to the nipple (H). Adjust the nipple to proper

length to ensure a snug canopy fit before proceeding.

3. Attach one end of the chain (N) to the fixture loop (O). Lace

the wire through every other link of the chain (N) to the end.

Slip wire and chain (N) through loop collar, canopy loop, and

canopy (M & L & K). Fasten the chain (N) to the canopy loop

(L). Make sure to provide enough slack in the wire to ensure

weight of fixture is supported by the chain (N).

4. Using suitable wire connectors (not provided) connect

fixture wires to supply wires (white to ribbed side of the

fixture’s cord, black to smooth side). Run a pigtail lead from

crossbar ground screw (I) to the junction box and connect

all ground wires (bare copper or green to bare copper or

green).

CAUTION: MAKE SURE WIRE CONNECTORS ARE TWISTED ON
SECURELY, AND NO BARE WIRE IS EXPOSED.

5. Raise canopy (K) to the ceiling and secure loop collar (M) to

canopy loop (L).

6. Follow next steps to install glass.

A348

For Moreau 7 Light Chandelier 104325

Page 2 of 3

(Figure 3)

(Continued)

L Canopy Loop

M Loop Collar

N Chain

O Fixture Loop

G
H
I
J

K
L
M
