Assembly & Installation Instructions

Install the Canopy

(Figure 1)

(Continued)

6. using suitable wire connectors (not provided), connect
fixture wires to supply wires (white or ribbed side of fixture
cord to white supply, black or smooth side of fixture cord to
black supply). ground the crossbar (a) using the ground
screw (J), cupped washer (K) and hex nut (l) to secure a
pigtail lead to the crossbar. connect all ground wires (bare
copper or green to bare copper or green).Push wires back
into outlet box.

CautIon: make sure wire ConneCtors are twisted on
seCurely, and no Bare wire is exposed.

7. Slide the canopy up the chain and over the threaded
loop (g), securing with loop collar (f). make sure no wires
are pinched between the canopy (e) and the ceiling or
crossbar (a).

to Install Glass

(Figure 2)

Component Parts

m fixture

n Screw (10)

o glass ring (10)

P glass (10)

1. Install light bulbs (not provided).

2. Slip glass ring (o) over glass (P) making sure the counter

sunk side is facing up. Install glass (P) aligning glass ring
(o) hole with threaded hole in fixture (m).

3. Install screw (n) to attach glass ring (o) to fixture (m).

4. repeat steps two & three until all ten glass pieces are

installed.

5. restore electricity at the main breaker.

A340

For Circular New Town Ten Light 103290

Page 2 of 2

n
o

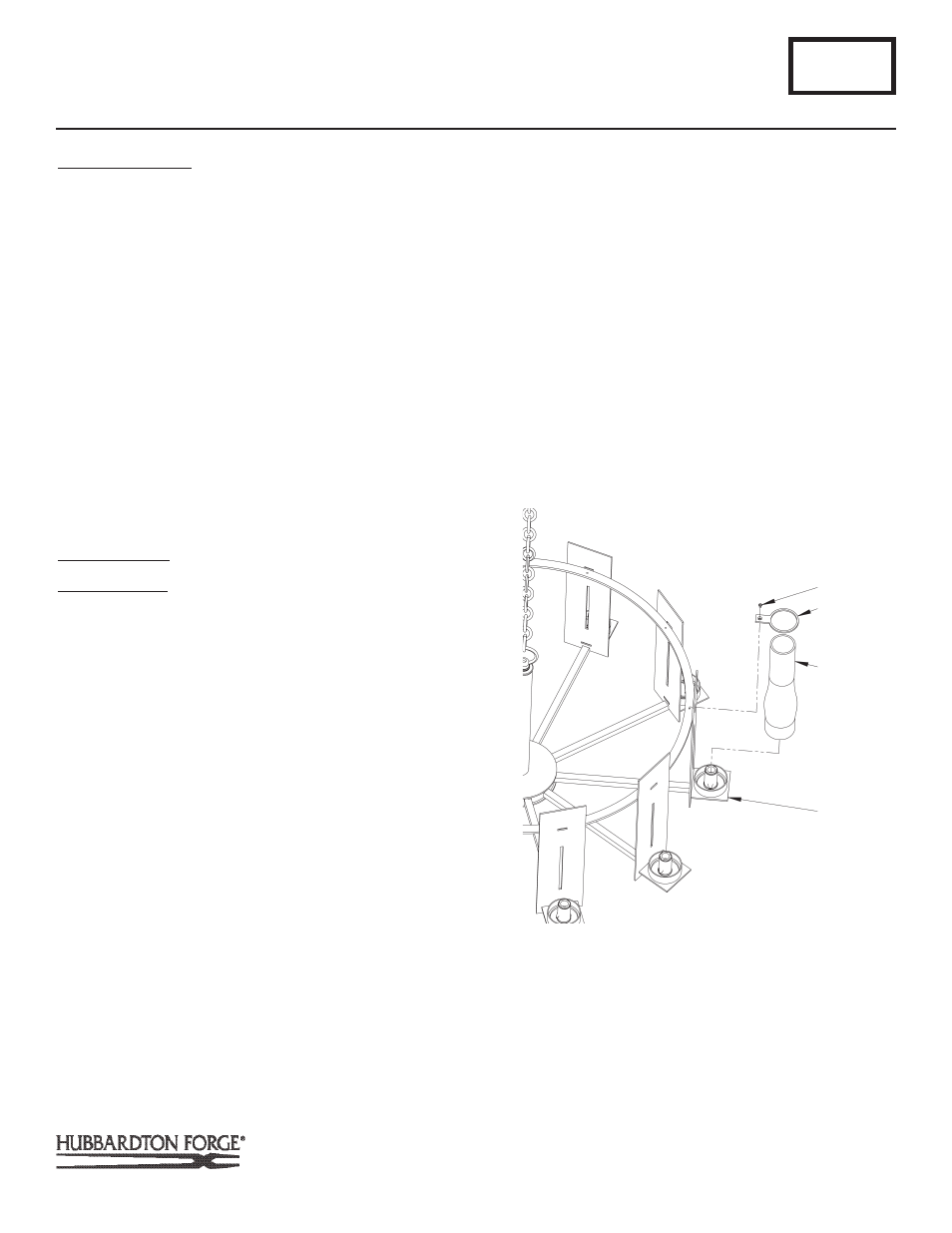

(Figure 2)
